Chapter 3: Jumpers and Connectors

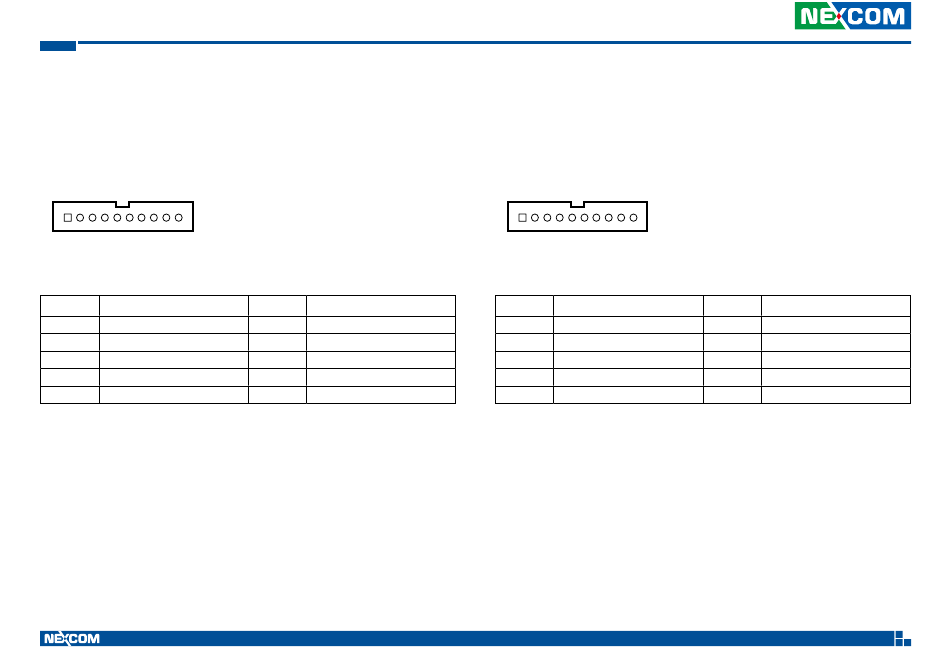

COM1 Connector
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J5
1
10
Pin
Definition
1
GND
3
RI_1
5
CTS_1
7
RTS_1
9
DSR_1
Copyright © 2023 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
2
GND
4
DTR_1
6
TXD_1
8
RXD_1
10
DCD_1
Debug 80 Port Connector
Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: J6
1
Pin
Definition
1
GND
3
33M_CLK
5
LPC_AD3
7
LPC_AD1
9
VCC3
28
10
Pin
Definition
2
PCIRST#
4
LPC_FRAME#
6
LPC_AD2
8
LPC_AD0
10
VCC3
VTC 1021 Series User Manual
