Chapter 3: Jumpers and Switches

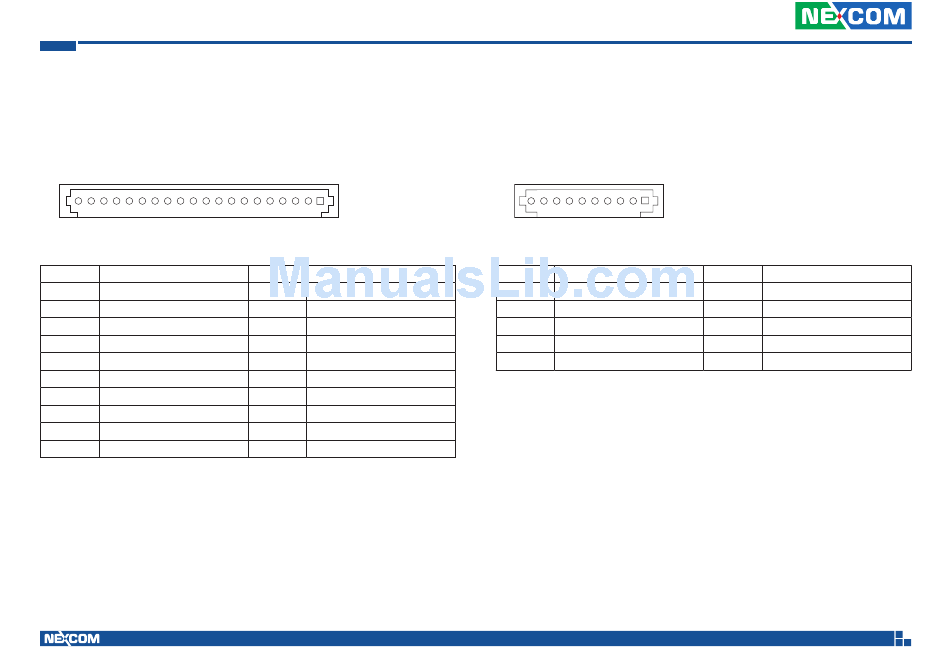

Expansion Connector (For VIOB-mPCI expansion card)

Connector size: 1 x 20 = 20-pin header (1.0mm)
Connector location: J16
20
Pin Definition
1 GND
3 USBHUB_3_N1
5 PEX_B_TX5P
7 GND
9 PEX_B_RX5N
11 SMB_DATA
13 CB_RESET#_B
15 GND
17 MINI_CLKP4
19 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
1
Pin Definition
2 USBHUB_3_P1
4 GND
6 PEX_B_TX5N
8 PEX_B_RX5P
10 GND
12 SMB_CLK
14 EXP_DISABLE#
16 GND
18 MINI_CLKN4
20 NC

COM1/3 RS232 Connector

Connector size: 1 x 10 = 10-pin header (1.0mm)
Connector location: CN12 and CN17
10
Pin Definition
1 GND
3 CTS
5 DTR
7 RI
9 TXD
29
1
Pin Definition
2 GND
4 DSR
6 RXD
8 RTS
10 DCD
