H1F Pictorial Diagram - Danfoss H1F 080 Service Manual

Service Manual
H1F Bent Axis Fixed Displacement Motors, Size 080
H1 general information

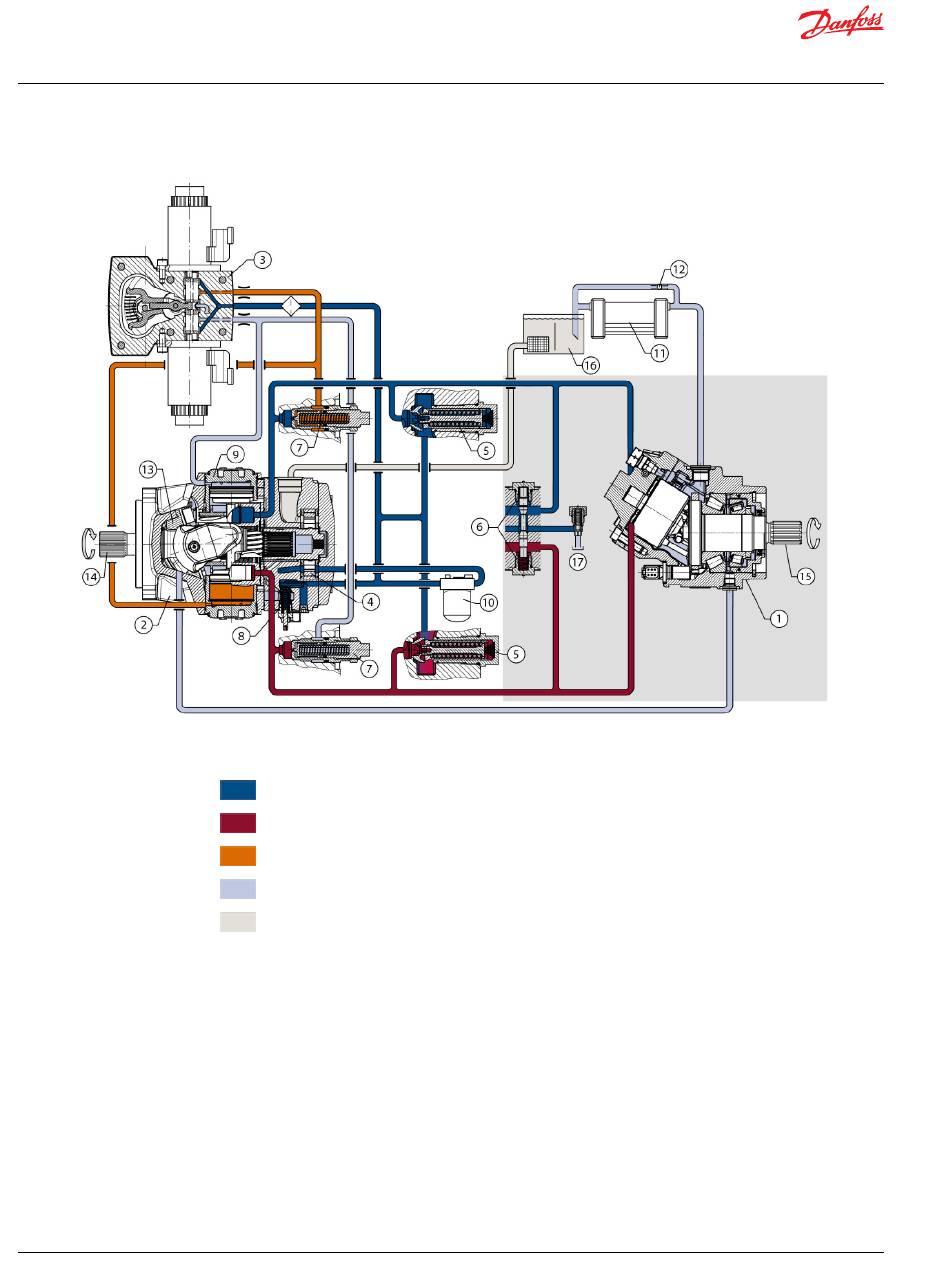

H1F pictorial diagram

8 | © Danfoss | December 2023
Working loop A (Low pressure) and charge pressure
Working loop B (High pressure)
Servo pressure
Case drain
Suction
1. Bent Axis Fixed Displacement Motor
2. Axial Piston Variable Displacement Pump
3. Electric Displacement Control (EDC)
4. Charge Pump
5. Charge Check / High Pressure Relief Valve
6. Loop Flushing Valve
7. Pressure Limiter Valve
8. Charge Pressure Relief Valve
9. Servo Cylinder
10. Charge Pressure Filter
11. Heat Exchanger
12. Heat Exchanger Bypass Valve
13. Pump Swashplate
14. Input Shaft
15. Output Shaft
16. Reservoir
17. to Motor Case
