H1F Bent Axis Fixed Displacement Motors, Size 080

Minor repair

Replace speed sensor

28 |

Danfoss | December 2023

1. Using a 5 mm internal hex wrench, remove screw (J0020).

2. Remove speed sensor (J0010).

3. Discard O-ring (J0041).

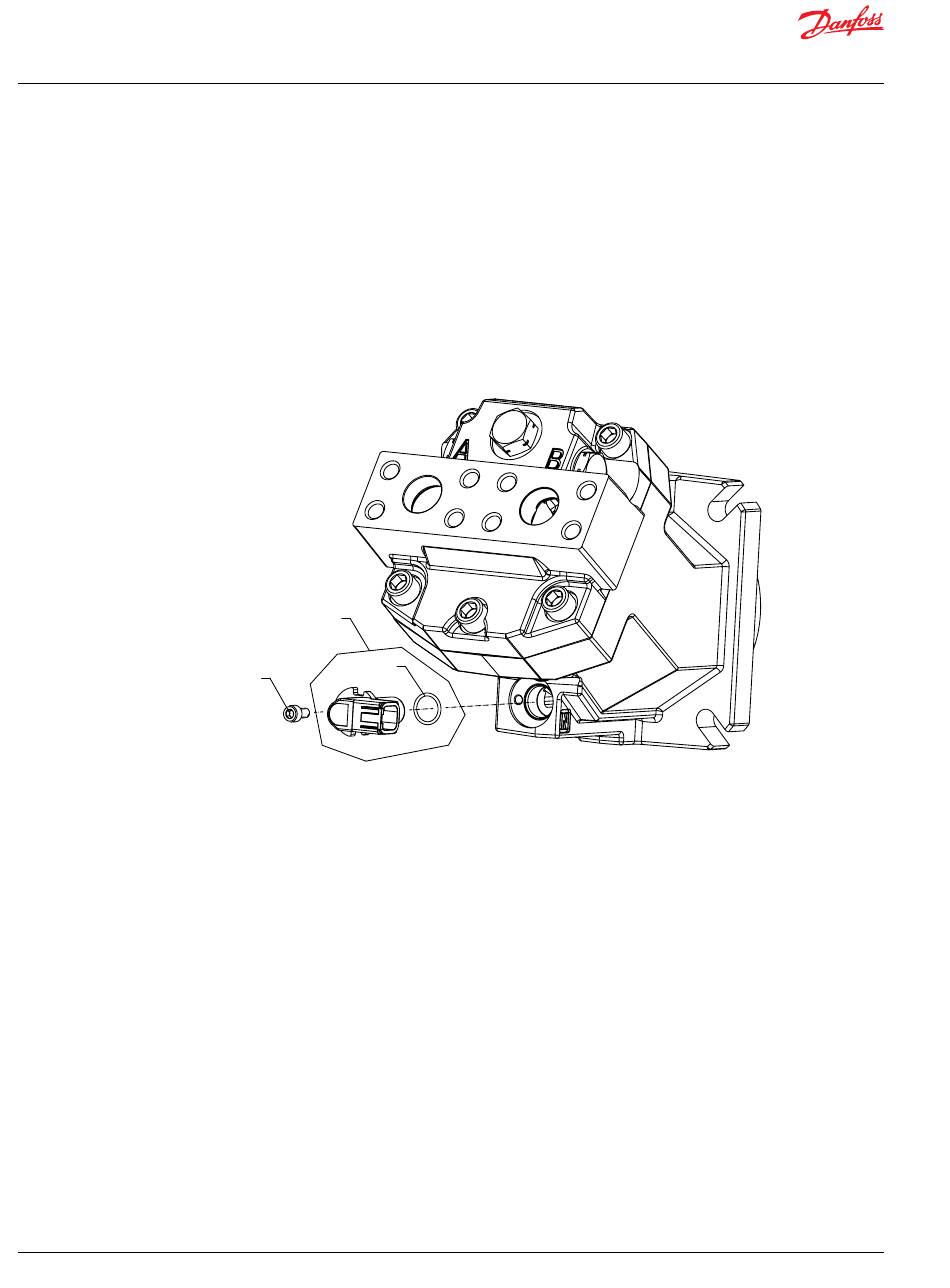

Speed sensor assembly

J0010

*J0041

J0020

1. Lubricate and install new O-ring (J0041).

2. Install speed sensor (J0010).

3. Install screw (J0020) using a 5 mm internal hex wrench with torque to 8 N•m [6 lbf•ft].

AX465363259664en-000102
