H1F Bent Axis Fixed Displacement Motors, Size 080

Pressure measurements

H1F Ports and gage information

20 | © Danfoss | December 2023

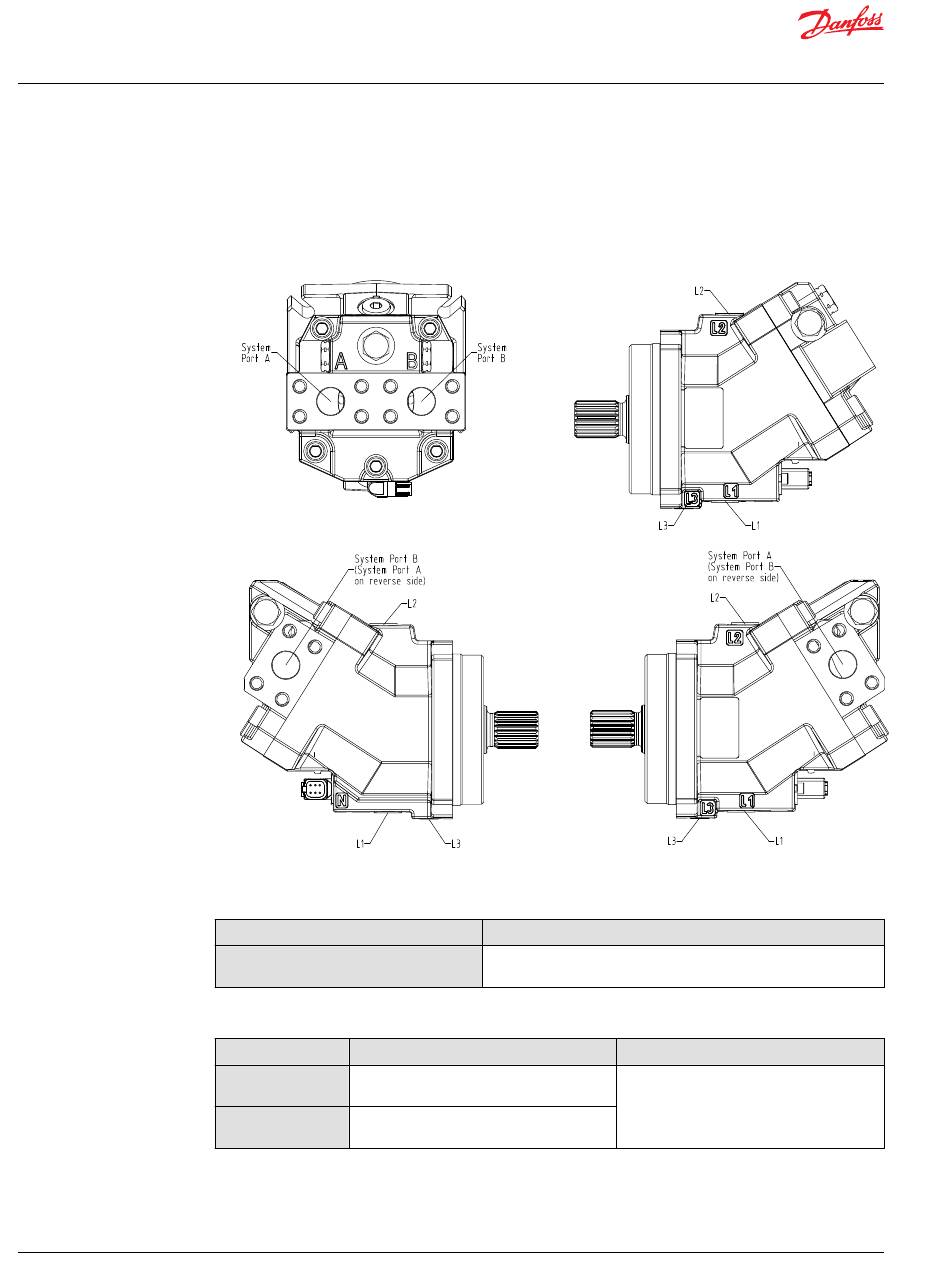

The following drawing with accompanying table show the port locations and gauge sizes needed for
installation.
Ports locations (proportional control)
System split flange boss ports, A/B: Code 62 per ISO 6162, Type 1
Port
A, B
Ports and gauge Information
Port Size 080
M22 x 1.5
L1, L2
Wrench (int. hex): 17 mm
L3 M14 x 1.5
Wrench (int. hex): 12 mm
Axial Ported Endcap
Radial Ported Endcap
Size 080
1 in; Thread: M12 x 1.75
min. 24 mm [0.94 in]
Pressure obtained
10 bar [145 psi]
Case drain
