H1F Bent Axis Fixed Displacement Motors, Size 080
Minor repair

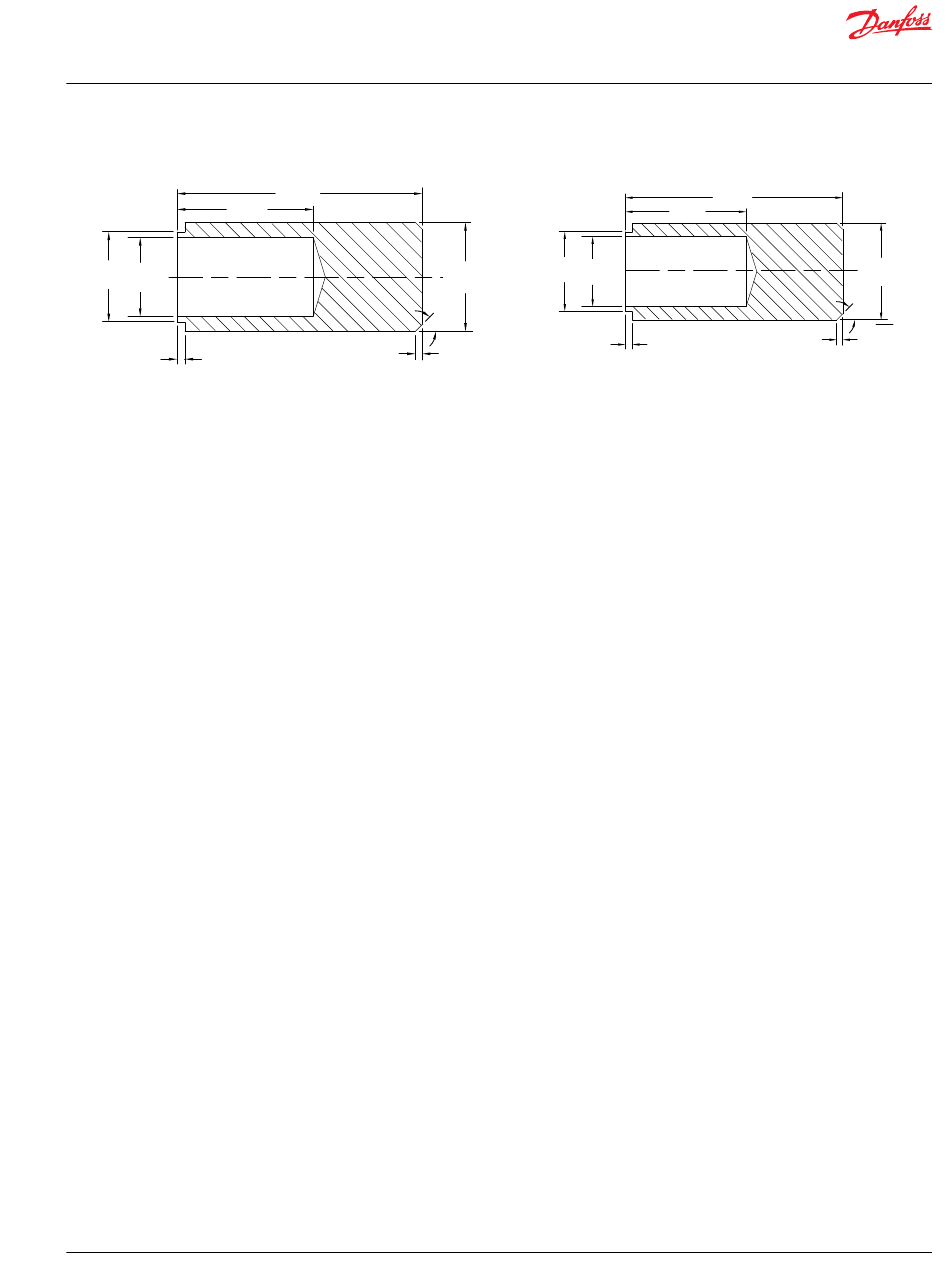

110/160/210/250 - Seal installation tool dimensions, 060/080 - Seal installation tool dimensions
100 mm
[3.94 in]
69 mm
58 mm
[2.6 in]
[2.3 in]
+ 0.10
5.15 mm
+ 0.004
[0.20 in
- 0.0
