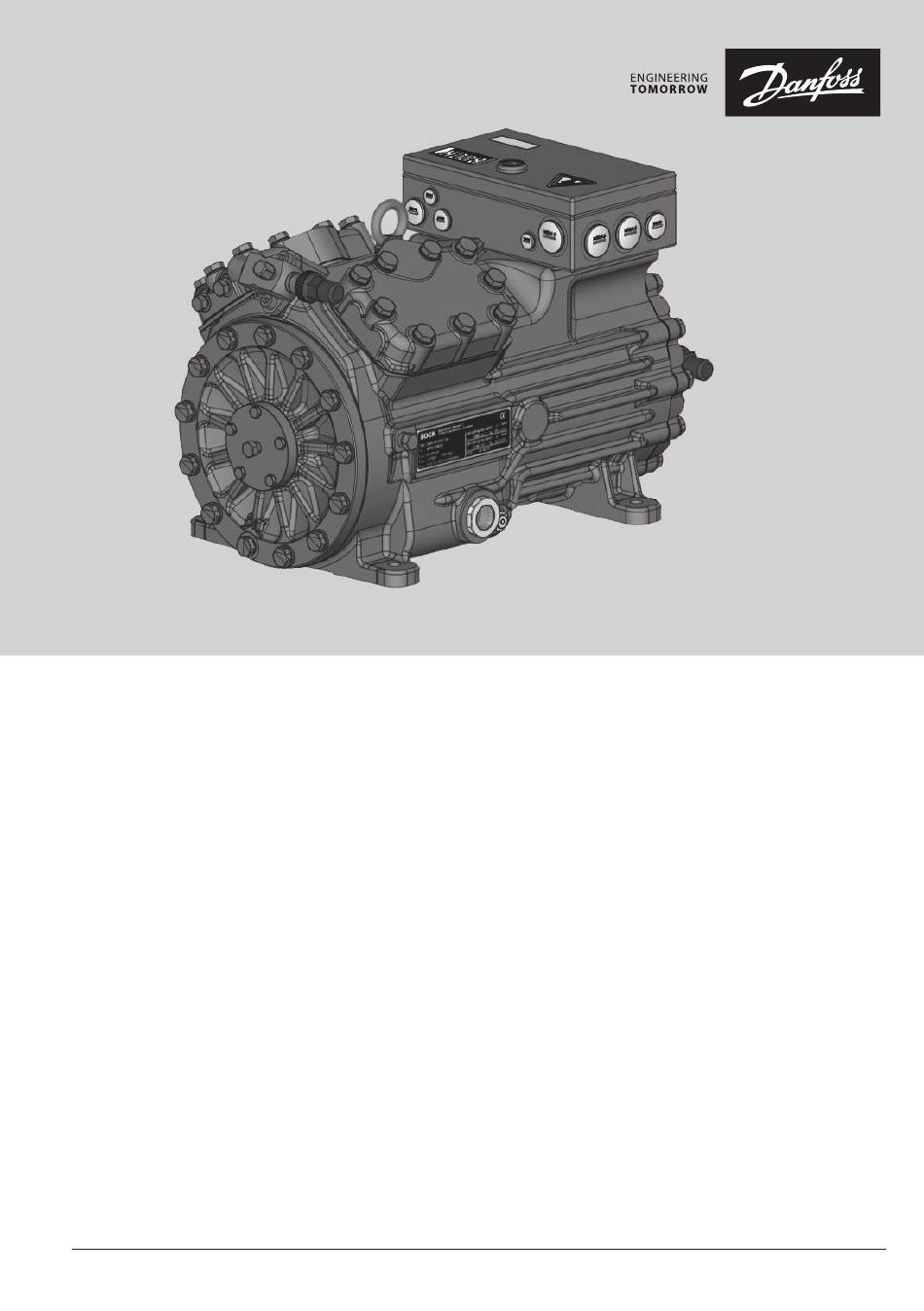

- Page 1 HGX 34 e A ® BOCK Operating guide HGX34e/380-4 S A Translation of the original instructions AQ464037893946en-IN0201...
- Page 2 Observe the safety instructions contained in these instructions. These instructions must be passed onto the end customer along with the unit in which the compressor is installed. 2 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07...
-
Page 3: Table Of Contents
6.7 Avoiding liquid sluggings Maintenance 7.1 Preparation 7.2 Work to be carried out 7.3 Spare parts recommendation/accessories 7.4 Lubricants / oil 7.5 Decommissioning Technical data Dimensions and connections 10 Declaration of incorporation AQ464037893946en-IN0201 | 3 © Danfoss | Climate Solutions | 2024.07... -
Page 4: Safety
As well as professions with comparable training, which enable personnel to assemble, install, maintain and repair refrigeration and air-conditioning systems. Personnel must be capable of assessing thework to be carried out and recognising any potential dangers. 4 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 5: General Safety Instructions
The compressors are intended for use in refrigeration systems in compliance with the limits of application. Only the refrigerant specified in these instructions may be used. Any other use of the compressor is prohibited! AQ464037893946en-IN0201 | 5 © Danfoss | Climate Solutions | 2024.07... -
Page 6: Product Description
Oil pump Oil sightglass Fig. 1 Cylinder cover Terminal box Valve plate Drive motor Motor part Suction shut-off valve Fig. 2 Dimension and connection values can be found in Chapter 9 6 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 7: Type Key
= e-series / P = Pluscom Numbers of cylinders Size Oil charge ² Series ¹ HG - Hermetic Gas-cooled (suction gas-cooled) ¹ X - Ester oil charge (HFC refrigerant, e.g. R134a, R404A, R507, R407C) ² S - More powerful motor, e.g. for air-conditioning applications AQ464037893946en-IN0201 | 7 © Danfoss | Climate Solutions | 2024.07... -
Page 8: Areas Of Application
- The potential control range of the compressor is 25-70 Hz. - Max. permissible current consumption must not be exceeded. At max. rotation speed therefore, the application limit can be reduced. - Use a thermal protection thermostat. - Do not operate an additional capacity controller. - O il return at low frequency must be guaranteed. 8 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... - Page 9 Prevent the ingress of air at all costs! Max. permissible operating pressure (LP/HP) LP = Low pressure HP = High pressure 19/28 bar AQ464037893946en-IN0201 | 9 © Danfoss | Climate Solutions | 2024.07...
-
Page 10: Compressor Assembly
Fig. 6 4.2 Setting up ATTENTION! Attachments (e.g. pipe holders, additional units, fastening parts, etc.) directly to the compressor are not permissible! Provide adequate clearance for maintenance work. Ensure adequate compressor ventilation. Fig. 7 Do not use in a dusty, damp atmosphere or a combustible environment. Fig. 8 Set up on an even surface or frame with sufficient load- bearing capacity. Fig. 9 10 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 11: Maximum Permissible Inclination
Fig. 11: Stepped matched to the output. The same applies for non-return valves. internal diameters ATTENTION! Overheating can damage the valve. Remove the pipe supports from the valve for soldering. Solder them with protective gas to prevent oxidation products (scale). AQ464037893946en-IN0201 | 11 © Danfoss | Climate Solutions | 2024.07... -
Page 12: Pipes
Before opening or closing the shut-off valve, release the adjustable valve spindle seal by approx. ¼ of a turn counter-clockwise. After activating the shut-off valve, re-tighten the adjustable valve spindle seal clockwise. Release Tighten Valve spindle seal Fig. 13 Fig. similar Fig. 14 Fig. similar 12 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 13: Operating Mode Of The Lockable Service Connections
For systems with long pipes and higher degree of contamination, a filter on the suction-side is recommended. The filter has to be be renewed depending on the degree of contamination (reduced pressure loss). Moisture in the refrigeration circuit can lead to crystal and hydrate formation. For this reason, we recommend using a filter drier and a sight glass with a moisture indicator. AQ464037893946en-IN0201 | 13 © Danfoss | Climate Solutions | 2024.07... -
Page 14: Electrical Connection
For motor protection use a current-dependent and time-delayed overload protection device for moni- toring all three phases. Set the overload protection device so that it must be actuated within 2 hours, if there is 1.2 times the max. working current. 14 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... - Page 15 230 V ∆ 400 V Y Direct start Star-delta start Direct start only L1 L2 L1 L2 L1 L2 L1 L2 INFO! The connection examples shown refer to the standard version. In the case of special voltages, the instructions affixed to the terminal box apply. AQ464037893946en-IN0201 | 15 © Danfoss | Climate Solutions | 2024.07...
-
Page 16: Circuit Diagram
Anschlußkasten Verdichter Compressor terminal box Fig. 17 Cold conductor (PTC sensor) motor winding Thermal protection thermostat (PTC sensor) Load circuit safety switches Control power circuit fuse High pressure safety monitor Safety chain (high/low pressure monitoring ) Release switch (thermostat) 16 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... - Page 17 L1.1 L2.1 L3.1 L1.2 P> Θ Θ Main switch Control voltage switch Compressor motor Compressor contactor INT69 G Electronic trigger unit INT69 G Oil sump heater AQ464037893946en-IN0201 | 17 © Danfoss | Climate Solutions | 2024.07...
-
Page 18: Electronic Trigger Unit Int69 G
B1 B2 This would destroy the trigger unit INT69 G and PTC sensors. N 43 43 11 X2 1 Θ Θ Θ Steuerstrom- Steuerstrom- kreis kreis Θ Fig. 18 Terminal box 18 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 19: External Connection Of The Int69 G
08.05.2020 Datum 04.12.2009 HG22e/34e HC Fig. 20 Name Norm Urspr. Ers. f. Ers. d. Bearb. bauknecht Reset after mains on 11-14 Gepr. 08.05.2020 Name Norm Urspr. Ers. f. Ers. d. AQ464037893946en-IN0201 | 19 © Danfoss | Climate Solutions | 2024.07... -
Page 20: Selection And Operation Of Compressors With Frequency Converters
5. Carry out all designs and installations in accordance with the local safety regulations and common rules (e.g. VDE) and regulations as well as in accordance with the specifications of the frequency converter manufacturer The permissible frequency range can be found in the technical data. Rotational speed 0 - f-min f-min - f-max range < 1 s ca. 4 s Start-up time immediately Switch-off time 20 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 21: Commissioning
Evacuate the suction and high pressure sides using the vacuum pump. At the end of the evacuation process, the vacuum should be < 1.5 mbar when the pump is switched off. Repeat the process as often as is required. AQ464037893946en-IN0201 | 21 © Danfoss | Climate Solutions | 2024.07... -
Page 22: Refrigerant Charge
Suction gas superheat at the compressor input should be min. 7 - 10 K. (check the setting of the expansion valve). The system must reach a state of equilibrium. Particularly in critical systems (e.g. several evaporator points), measures are recommended such as replacement of liquid traps, solenoid valve in the liquid line, etc. There should be no movement of refrigerant in the compressor while the system is at a standstill. 22 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 23: Maintenance
When the compressor is depressurised, undo the fastening screws of the shut-off valves. Remove the compressor using an appropriate hoist. Dispose of the oil inside in accordance with the valid national regulations. AQ464037893946en-IN0201 | 23 © Danfoss | Climate Solutions | 2024.07... -
Page 24: Technical Data
Oil charge Weight 220-240 V ∆ / 380-420 V Y - 3 - 50 Hz Voltage 265-290 V ∆ / 440-480 V Y - 3 - 60 Hz No. of cylinders 24 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... -
Page 25: Dimensions And Connections
1 1 / 8 “- 18 UNEF Connection oil level regulator * The LP connection on the cylinder cover must not be used for the low-pressure switch in capacity controlled operation. AQ464037893946en-IN0201 | 25 © Danfoss | Climate Solutions | 2024.07... -
Page 26: Declaration Of Incorporation
#3A1, Bommasandra Industrial Area, Hebbagodi, Bock GmbH Hosur Road, Bangalore – 560099 Alexander Layh Benzstraße 7 72636 Frickenhausen, Germany Sivakumar Gopalan, Head - Operations, BOCK India - CC-HP Frickenhausen, 05th of December 2023 26 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07... - Page 27 #3A1, Bommasandra Industrial Area, Hebbagodi, Danfoss LTD., 22 Wycombe End, Hosur Road, Bangalore – 560099 HP9 1NB, GB Sivakumar Gopalan, Head - Operations, BOCK India - CC-HP Frickenhausen, 05th of December 2023 AQ464037893946en-IN0201 | 27 © Danfoss | Climate Solutions | 2024.07...
- Page 28 28 | AQ464037893946en-IN0201 © Danfoss | Climate Solutions | 2024.07...
