Module Programming; Key Vehicles - Directed DIRECTECHS DB3 Installation Manual

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

Key vehicles

For Convenience-Only programming, see next section.

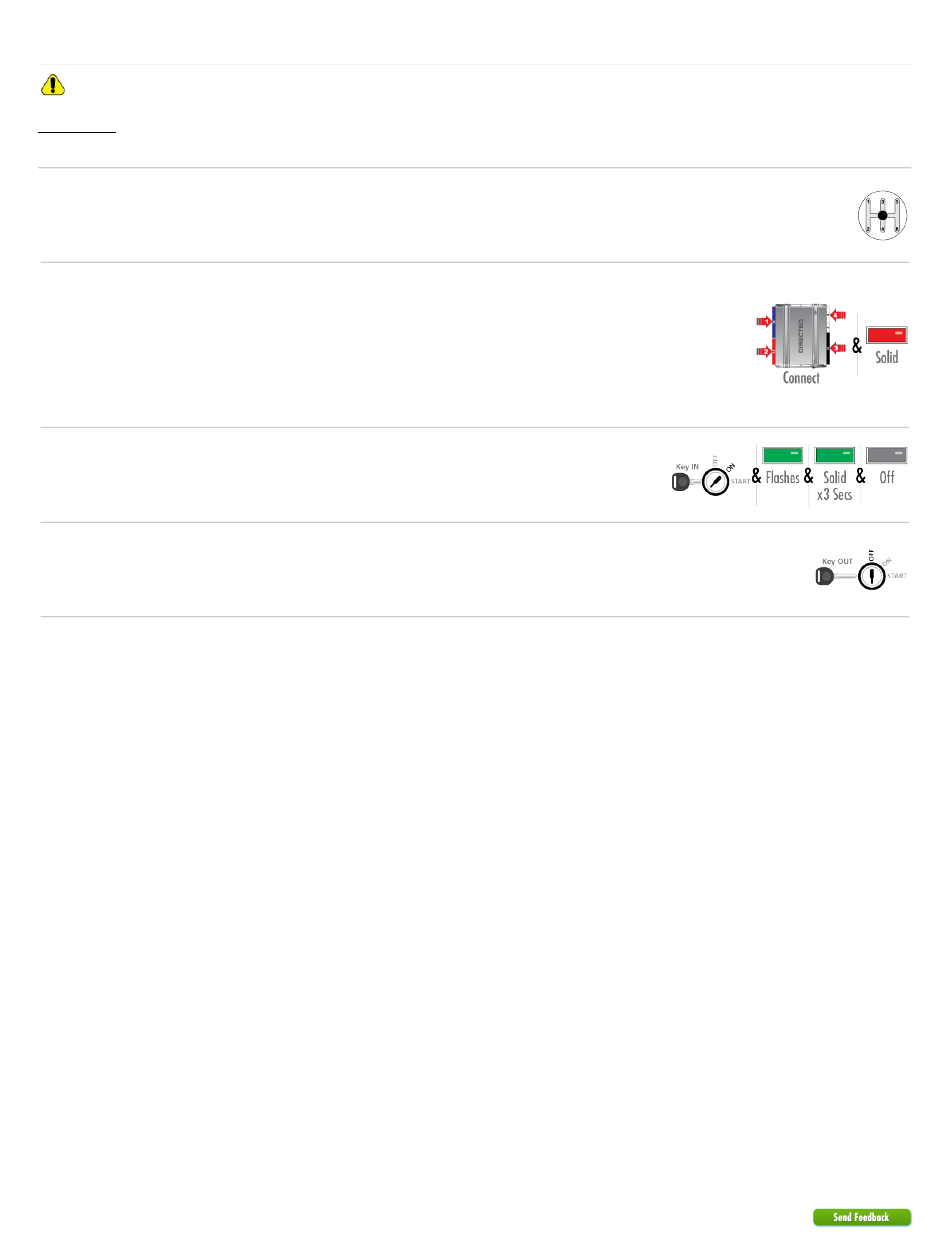

Ensure vehicle is in a safe location and cannot move forward during programming. For
1
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2. Connect the 12-pin.
2
3. Connect the 10-pin.
4. Connect the 4-pin D2D cable (if being used).
When the LED turns ON solid red, proceed with the next step.
Turn the ignition ON.
3
The LED will flash green then stay ON green for 3 seconds, then turn OFF.
4
Turn the ignition OFF and remove the key from the ignition barrel.
You have successfully completed the module programming sequence.
10
403.FORD12 2.07 2020 Ford Escape (Smart Key)
