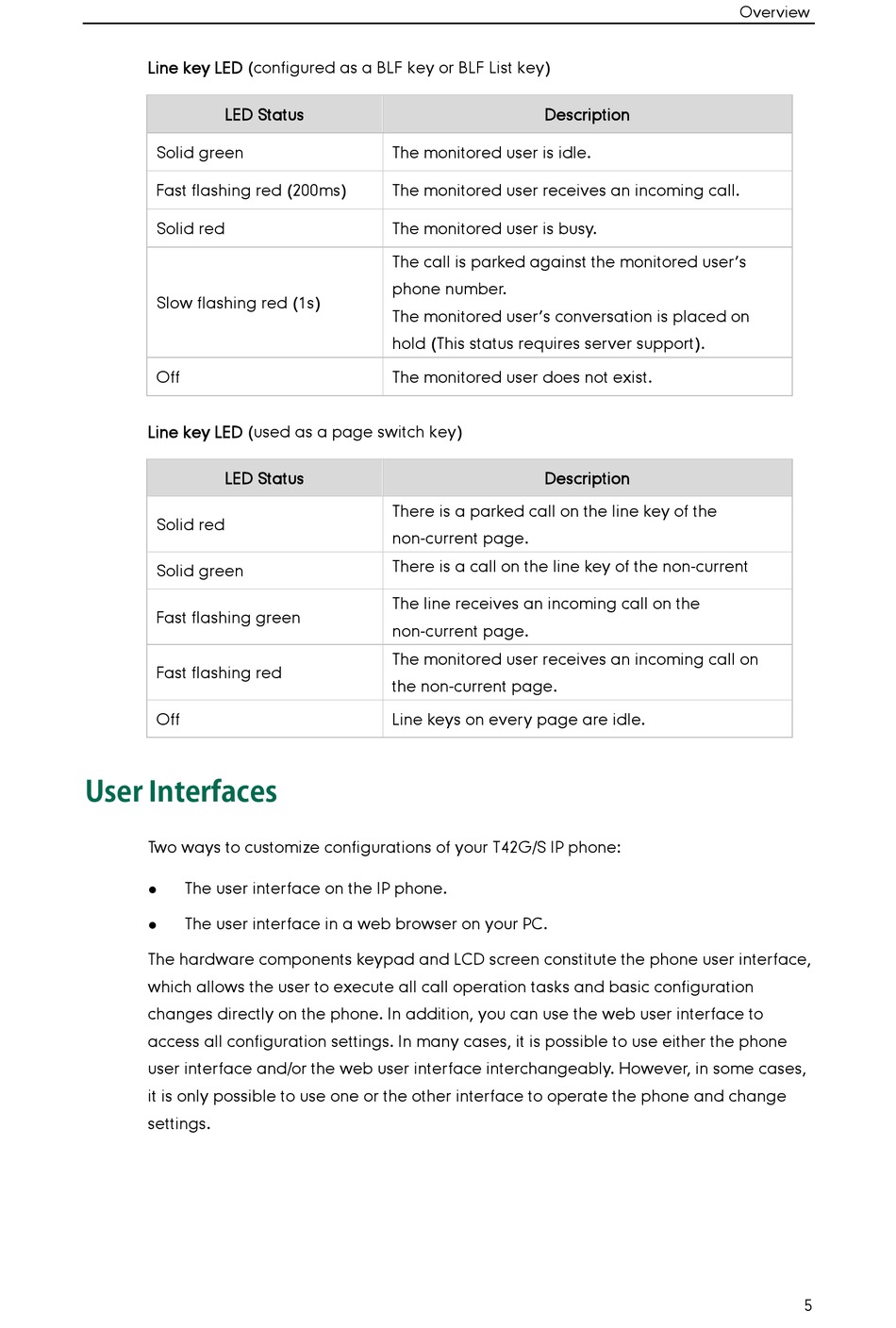

Line key LED (configured as a BLF key or BLF List key)
LED Status
Solid green
Fast flashing red (200ms)
Solid red
Slow flashing red (1s)
Off
Line key LED (used as a page switch key)
LED Status
Solid red
Solid green
Fast flashing green
Fast flashing red
Off

User Interfaces

Two ways to customize configurations of your T42G/S IP phone:
The user interface on the IP phone.

The user interface in a web browser on your PC.

The hardware components keypad and LCD screen constitute the phone user interface,
which allows the user to execute all call operation tasks and basic configuration
changes directly on the phone. In addition, you can use the web user interface to
access all configuration settings. In many cases, it is possible to use either the phone
user interface and/or the web user interface interchangeably. However, in some cases,
it is only possible to use one or the other interface to operate the phone and change
settings.
Description
The monitored user is idle.
The monitored user receives an incoming call.
The monitored user is busy.
The call is parked against the monitored user's
phone number.
The monitored user's conversation is placed on
hold (This status requires server support).
The monitored user does not exist.
Description
There is a parked call on the line key of the
non-current page.
There is a call on the line key of the non-current
The line receives an incoming call on the
non-current page.
The monitored user receives an incoming call on
the non-current page.
Line keys on every page are idle.
Overview
5
