Tadiran Telecom T42G/S User Manual page 17

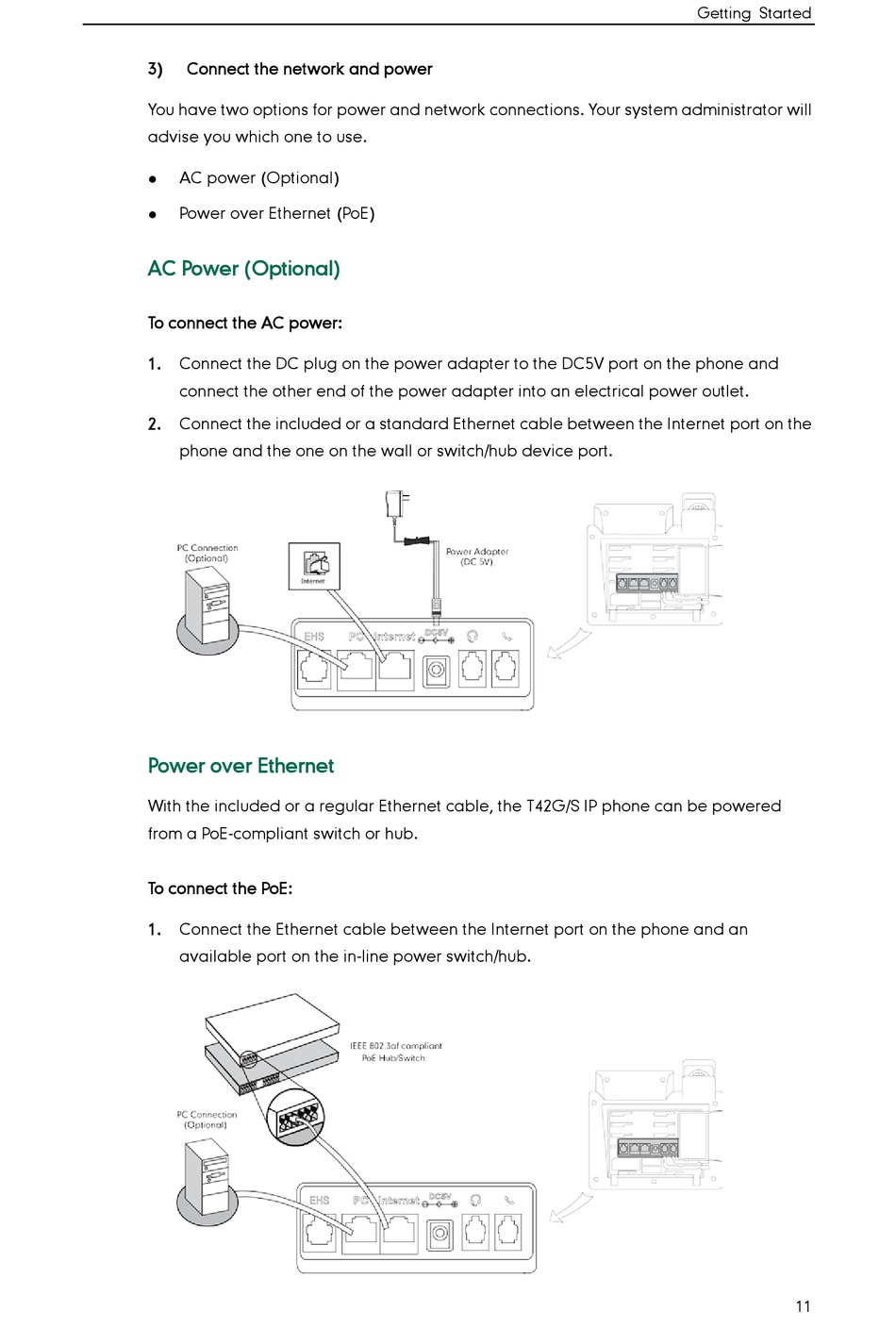

3) Connect the network and power
You have two options for power and network connections. Your system administrator will
advise you which one to use.
AC power (Optional)

Power over Ethernet (PoE)

AC Power (Optional)
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and
connect the other end of the power adapter into an electrical power outlet.
2. Connect the included or a standard Ethernet cable between the Internet port on the
phone and the one on the wall or switch/hub device port.
Power over Ethernet
With the included or a regular Ethernet cable, the T42G/S IP phone can be powered
from a PoE-compliant switch or hub.
To connect the PoE:
1. Connect the Ethernet cable between the Internet port on the phone and an
available port on the in-line power switch/hub.
Getting Started
11
