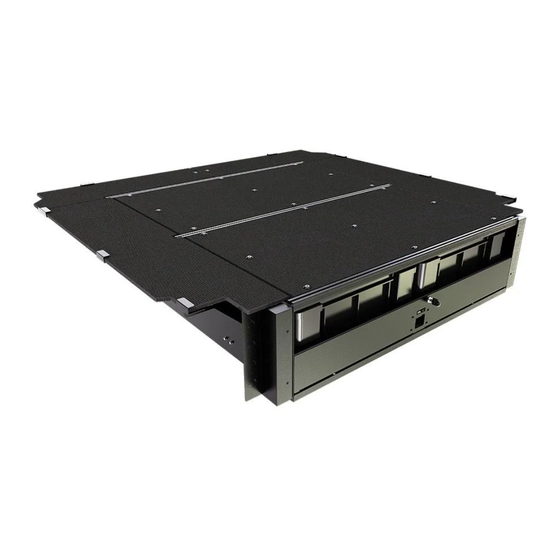

Thank you for purchasing a Front Runner Storage System.
This Storage System is made up of the following components:
1. A Drawer System - SSDR010
2. A Deck Support System - SSWS001
3. A Vehicle Specific Deck Set - SSDS201
Before you start, take a moment to familiarize yourself with these Fitting Instructions and all the components received.
Depending on the vehicle not all components received will be used. Refer to Pages 2 & 3 for a list of all the components
and quantities of required.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR
VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN-
JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER
PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD-
UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS
AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDER-
STAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOR-
OUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSION-
AL INSTALLER OR OTHER QUALIFIED PERSONNEL.
REV_A02
DRAWer
FORD RANGER
IMPORTANT WARNING!
1
SSDS201 / SSFR001
INSTALL TIME: 1 Hour
Advertisement
Related Manuals for Front Runner SSDS201
Summary of Contents for Front Runner SSDS201
- Page 1 VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN- JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD- UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
- Page 2 GET ORGANIZED... You will need: Here is what you are looking at for SSDR010: 10 mm Flat & Socket Wrench 4 mm Hex Key Item # Quantity Description a Friend TWIN DRAWER SYSTEM Measuring Tape TURNBUCKLE Suitable Marker Pen WING NUT Drill Machine D-RING 6.5 mm Drill Bit...
- Page 3 CORNER WING - 2 LEFT, 2 RIGHT WING SLIDER TYPE 2 - 1 LEFT, 1 RIGHT SIDE WING - 2 LEFT, 2 RIGHT Here is what you are looking at for SSDS201: Item # Quantity Description FRONT LEFT DECK REAR LEFT DECK...
- Page 4 Prepare for installation Loosely assemble the left and right hand Side Wing Sets (Items 24, 27) as shown below using two M6 x 16 Hex Bolts, two M6 Flat Washers, two M6 x 19 Flat Washers and two M6 Nyloc Nuts as shown (Items 19, 20, 21, 22) received with SSWS001.
- Page 5 Prepare for installation cont... Slide a Channel Nut (Item 13) into each end of the Track (Item 16). Place the Track under the front of the Drawer System and line the Channel Nuts in the Track up with the mounting holes in the front corners of the Drawer System.
- Page 6 Prepare for installation cont... Looking from the front of the Drawer System, loosely secure a D-ring (Item 4) supplied with SSDR010 to the top of each first support pillar using a M6 x 20 Hex Bolt, M6 Spring Nut and M6 x 19 Flat Washer (Items 5, 6 &...
- Page 7 6.5 mm holes drilled in Step 2H using two M6 x 25 Hex Bolts, four M6 x 19 Flat Washers, two M10 x 50 Flat Washers and a two M6 Nyloc Nuts (Items 32, 34, 35, 36 received with SSDS201) as shown.
- Page 8 Install Drawer System cont... Secure the Side Wing Assemblies from Step 2A to the Drawer System using six M6 x 20 Hex Bolts, six M6 Spring Washers and six M6 Flat Washers (Items 17, 18, 21) received with SSWO001. When securing the TOP of the MIDDLE Wing Assemblies, loosely secure a D-Ring (Item 4) to the Drawer and Wing Assembly using a M6 x 20 Hex Bolt, M6 Spring Washer and M6 x 19 Flat Washer (Items 5, 6, 7) recieved with SSWO008 as shown.
- Page 9 Install Drawer System cont... Secure the middle D-ring mounts on the Drawer System to the D-rings fitted in Step 2I using a C-hook and Turn Buckle (Items 2, 11) each side. Secure the front D-Ring mounts to the tie down rings found at the rear of the vehicle using the remaining C-hooks and Turn Buckles.
- Page 10 Install Drawer System CONT... Assemble the two Front Faces (Items 39, 40) to the front of the Drawer System using the four M6 x 16 Button Head Bolts (Items 41) supplied. REV_A02...
- Page 11 REV_A02...
- Page 12 VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN- JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD- UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
- Page 13 GET ORGANIZED... You will need: Here is what you are looking at for SSWO008: 10 mm Flat & Socket Wrench 4 mm Hex Key Item # Quantity Description a Friend SIX BOX DRAWER Measuring Tape TURNBUCKLE Suitable Marker Pen WING NUT Drill Machine D-RING 6.5 mm Drill Bit...
- Page 14 CORNER WING - 2 LEFT, 2 RIGHT WING SLIDER TYPE 2 - 1 LEFT, 1 RIGHT SIDE WING - 2 LEFT, 2 RIGHT Here is what you are looking at for SSDS201: Item # Quantity Description FRONT LEFT DECK REAR LEFT DECK...
- Page 15 Prepare for installation cont... Loosely assemble the left and right hand Side Wing Sets (Items 24, 27) as shown below using two M6 x 16 Hex Bolts, two M6 Flat Washers, two M6 x 19 Flat Washers and two M6 Nyloc Nuts as shown (Items 19, 20, 21, 22) received with SSWS001.
- Page 16 Prepare for installation cont... Slide the three Channel Nuts (Item 13) into the Track (Item 16). Place the Track under the front cross strap of the Drawer System. Line the three Channel Nuts inside the Track up with the mounting holes in the cross strap (as indicated by the arrows) and loosely secure the Track in position using the three M8 x 16 Hex Bolts, three M8 x 25 Flat Washers and three M8 Springs Washers (Items 12, 14, 15).
- Page 17 Outer Rib ( H ) Secure the two D-rings (Item 33 received with SSDS201) to the inside of the vehicle's load bay. You will be bolting through the two 6.5 mm holes drilled in Step 2H using two M6 x 25 Hex Bolts, four M6 x 19 Flat Washers, two M10 x 50 Flat Washers and a two M6 Nyloc Nuts (Items 32, 34, 36, 37 received with SSDS201) as shown.
- Page 18 Install DrawER System Lift the Drawer System (Item 1) into the vehicle's load bay and position it 60 mm in from the front of the load bay and center it from left to right. 60 mm Load Bay Tail Gate Secure the bottom of the Side Wing Assemblies from Step 2A to the Drawer System using four M6 x 20 Hex Bolts, four M6 Spring Washers and four M6 Flat Washers (Items 17, 18, 21) received with SSWO001.
- Page 19 Turn Buckles and two 37 mm C-hooks (Item 35) recieved with SSDS201. Ensure the Wing Nut goes towards the top of the Drawer System. When tightening the Turn Buckles ensure that the Drawer System remains centered left to right and 60 mm from the front. Once the Drawer is secure in position tighten the Wing Nuts on the Turn Buckles and the Bolts securing the D-rings to the Drawer System and the vehicle's load bay.
- Page 20 Install Drawer System CONT... Fit the Side and Rear Decks (Items 28, 29, 30, 31) into position, by "clipping" the outer edge of the Decks into the Wing Sliders (Item 24 & 26) and pushing the Decks towards the outside of the vehicle, thereby ad- justing the Slider to the correct length.
- Page 21 REV_A02...
