Front Runner SSDS802 Assembly

Rear seat deck completion set mercedes benz gelandewagen

Download this manual

ENG

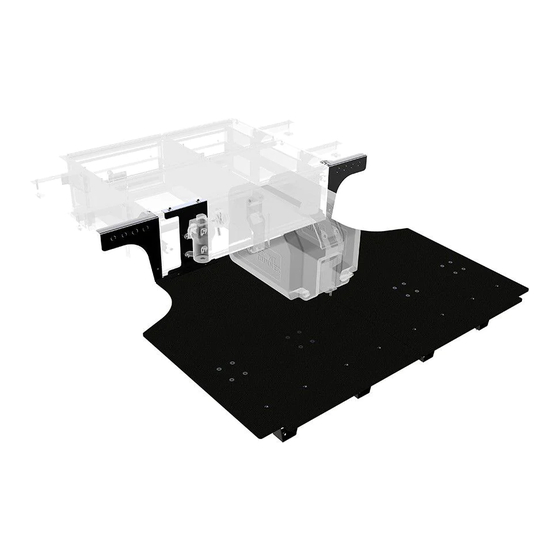

Rear Seat Deck Completion Set

Mercedes Benz Gelandewagen

SSDS802

READ ME !

Thank you for purchasing a Front Runner Rear Seat Deck Completion Set.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

SSDS802_REV_A01

Need help?

Do you have a question about the SSDS802 and is the answer not in the manual?

Page 1 FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL. NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.
Page 2: Tools Needed
GET ORGANIZED Here is what you are looking at for SSDS802 IN THE BOX IN THE BOX IN THE BOX Deck LH 16 X Spacer OD 19 x ID 12.5 x 24 H Deck RH Stand Off Floor Bracket 14 X...
Page 3 Place item 9 in position and drill a 6mm through the bottom hole of item 9 into the drawers side panel. Secure with the fasteners shown. 10MM SSDS802_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS...
Page 4 Place item 17 in each of the holes you have drilled, and use item 13 to set the turn nut in place. Do this by turning the screw in a few turns and pulling it up toward you. Remove the screw. SSDS802_REV_A01 © COPYRIGHT 2018 FRONT RUNNER VEHICLE OUTFITTERS...
Page 5 Congratulations! You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam...
