If you have purchased a vehicle specific Deck Set to go with your Drawer System, disregard this Fitting Instruction and
refer to your vehicle specific Instruction received with your Deck Set.
If you have not purchased a vehicle specific Deck Set, you may require additional fasteners and tools in order to create
four suitable mounting points on the vehicle to secure the Drawer System to. It is suggested that you read through the
Fitting Instructions, place Drawer System in the desired position on the vehicle and work out how best to secure the
Drawer System via the Turn Buckles and C-hooks supplied should the vehicle not have suitable mounting points.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR
VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN-
JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER
PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD-
UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS
AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDER-
STAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOR-
OUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSION-
AL INSTALLER OR OTHER QUALIFIED PERSONNEL.
REV_A00
DRAWer
IMPORTANT WARNING!
1

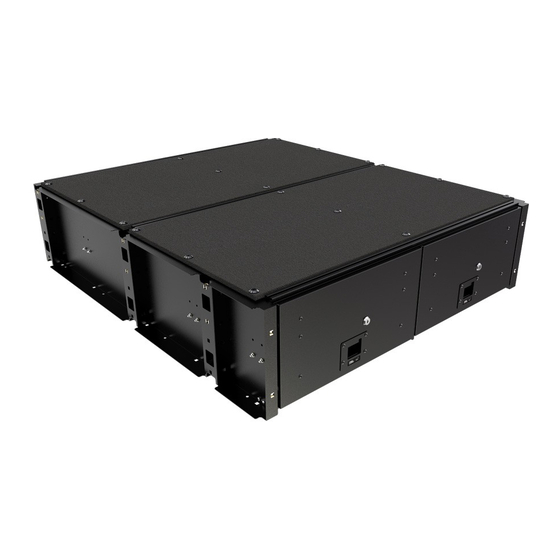

SSDR010
INSTALL TIME: 30 Mins
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Front Runner SSDR010
Summary of Contents for Front Runner SSDR010
- Page 1 VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN- JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD- UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE.
- Page 2 GET ORGANIZED... You will need: Here is what you are looking at for SSWO008: 10 mm Flat & Socket Wrench 4 mm Hex Key Item # Quantity Description a Friend DRAWER Additional Fasteners and Tools de- TURNBUCKLE pending on application WING NUT D-RING M6 x 20 HEX BOLT...
- Page 3 Install drawer Loosen the round end of the four Turn Buckles (Item 2). Screw a M6 Wing Nut (Item 3) onto each round end and reassemble the Turn Buckle as shown. Assemble the M6 Eye Nuts and Nylon Washers (Items 7 & 8) to the Stud Plates (Item 9) as shown.
- Page 4 Install drawer cont... Slide a Channel Nut (Item 13) into each end of the Track (Item 16). Place the Track under the front of the Drawer System and line the Channel Nuts in the Track up with the mounting holes in front corners of the Drawer System.
- Page 5 Install drawer cont... ( G ) With the Turn Buckles and C-hooks in position, work out how best to secure the "hook end " of the Turn Buckle to the vehicle. Referring to the image below, note that the Turn Buckles must all pull away form each other in order to prevent the Drawer System from moving one secured into position.
- Page 6 ( J ) Congratulations, you have completed your installation. Take a step back and admire your work. Good Job! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner dealer in person or online. REV_A00...
