Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
SSDS113_REV_A00
Toyota Fortuner (2005-2015)

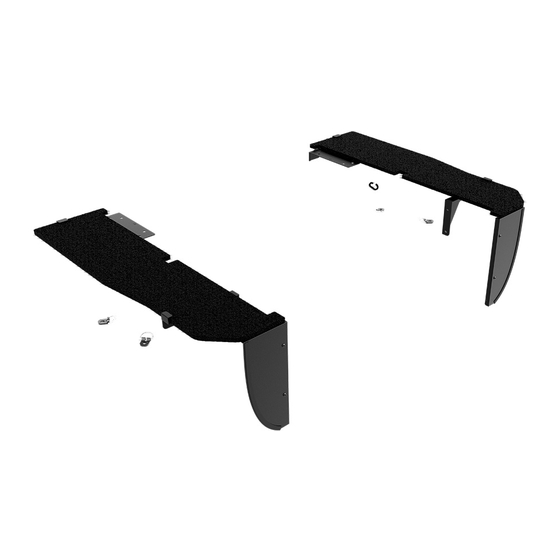

Drawer Deck Completion Set
READ ME !
Thank you for purchasing a Front Runner Drawer Deck Completion Set.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
1
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
ENG
SSDS113
60 min
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Front Runner SSDS113
Summary of Contents for Front Runner SSDS113
- Page 1 IMPORTANT WARNING! IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE.
- Page 2 M6 Spring Washer Pinch Weld 350mm Front Face LH + RH M5 x 10 Button Head M5 x 10 x 1SS Flat Washer M5 Nyloc Nut 37mm Laser Cut Carabiner FIGURE 1.1 SSDS113_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 3 FIT AND SECURE Loosen and remove the the two rear seats. Use the bolts that you have removed to secure the D-Rings supplied with the Drawer system (SSDR005) as shown. 17MM You will need to relocate the two front D-Rings on the Drawer. Loosen the D-Rings and unclip the Cage Nuts.
- Page 4 Fit the Top Rear Wing (Item 3) to the Bottom Rear Wing (Item 4) using M6 x 12 Button Heads, M6 x 12 x 1SS Flat Washers and M6 Nyloc Nuts (Items 2, 5 & 6) as shown. 10MM SSDS113_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 5 Side Wings. Push the Adjustable Front Wing up against the Side Deck. Carefully remove the Side Deck so that the adjustable Front Wings do not move. Secure the Adjustable Front Wings and refit the Side Decks. © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS SSDS113_REV_A00...
- Page 6 Congratulations! You did it. Take a step back and admire your work! Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions. Please call us if you have any questions about the installation of this product.
