Before you start, take a moment to familiarize yourself with this Fitting Intruction and the components received.
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD
RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT
RUNNER PRODUCTS TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND
DAMAGE. THEREFORE YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO
INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY
FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.
SSDS109_REV_A00

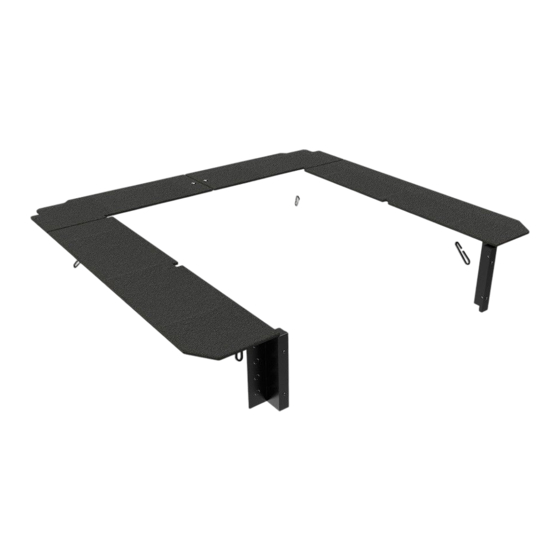

Drawer deck completion set
TOYOTA HILUX REVO DC (2016-CURRENT)
READ ME!
Thank you for purchasing a Front Runner Deck Completion Set.
Refer to Page 2 for a list of all the components, quantities and tools required.
IMPORTANT WARNING!
1
© COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS
ENG
SSDS109
45 min
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Front Runner SSDS109
Summary of Contents for Front Runner SSDS109
- Page 1 IMPORTANT WARNING! IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS TO YOUR VEHICLE.
- Page 2 GET ORGANIZED Here is what you are looking at for SSDS109 IN THE BOX TOOLS NEEDED Side Deck LH Rear Deck LH Rear Deck RH 10MM Side Deck RH 13MM 10MM Front Face RH Front Face LH Button Head M6x16...
- Page 3 Repeat this step on the left side of the drawer. See diagram 2.3 for placement of the D-ring at the rear right side of the drawer. Repeat this step on the left side of the drawer. 10MM SSDS109_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 4 Drill a 6.5mm hole. Repeat this on the left side. 65 MM 6.5MM Move the front of the drawer 50mm from the rear of the vehicle and centralize the drawer from left to right. SSDS109_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 5 Make sure the drawer is 10MM centralized in the load bin and 50mm from the rear of the vehilce before you fully tightening the turnbuckles. Place the front faces to the drawer and secure. SSDS109_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
- Page 6 Congratulations. You did it. Take a step back and admire your work! INSTALL OTHER VEHICLE AND RACK ACCESSORIES Now's the time to visit your favorite Front Runner Dealer in person or online. SSDS109_REV_A00 © COPYRIGHT 2016 FRONT RUNNER VEHICLE OUTFITTERS...
