Part 3.13: Power Supply

The power input voltage of the AXKU042 FPGA development board is
DC12V, and the external +12V power supply supplies power to the FPGA
development board.

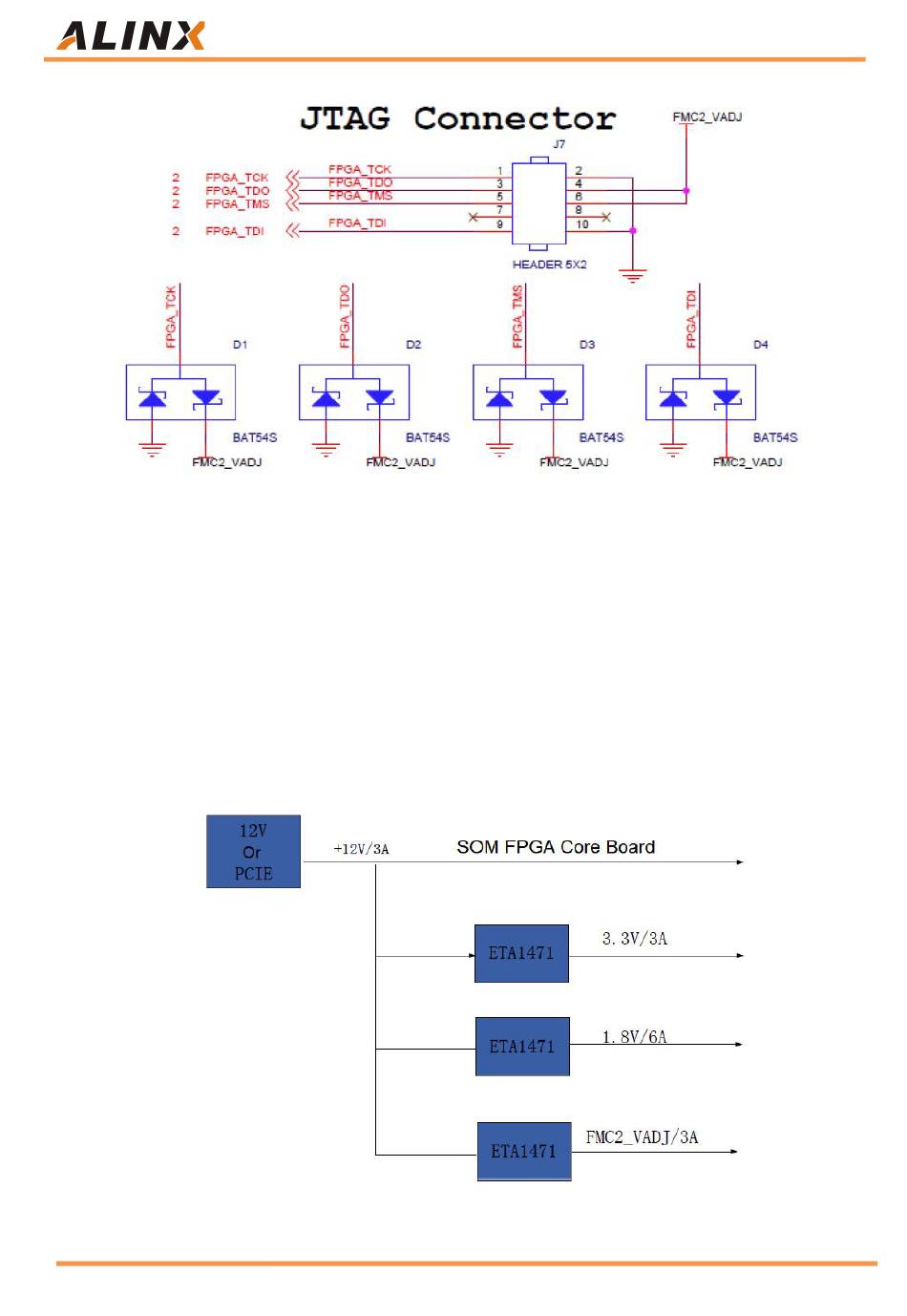

The Power supply design diagram shown in Figure 2-13-1.
54 / 56
KINTEX UltraScale+ FPGA Board AXKU042 User Manual
Figure 3-12-1: JTAG Interface Schematic
Figure 2-13-1: Power Supply Design Diagram
