KINTEX UltraScale+ FPGA Board AXKU042 User Manual

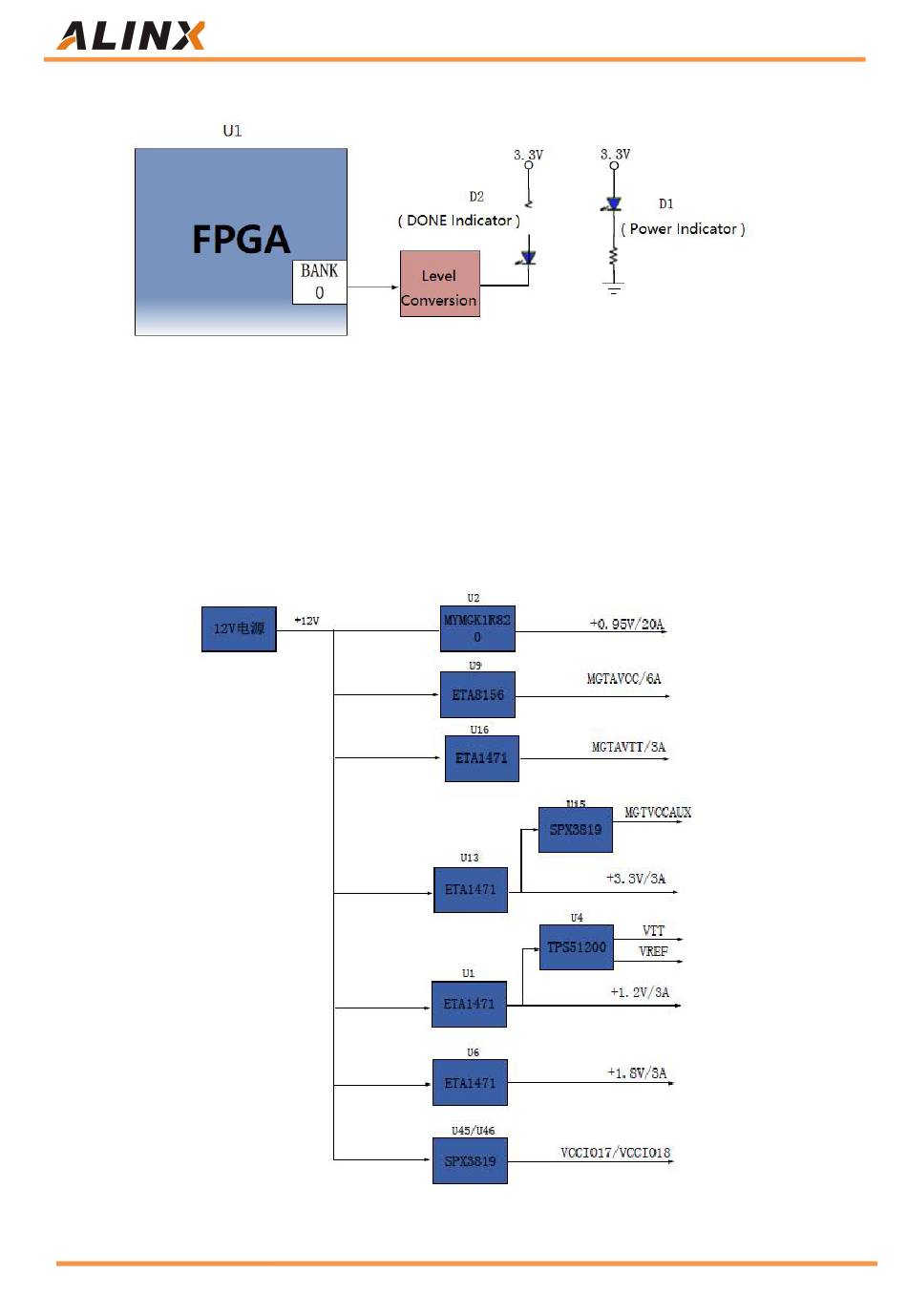

LED light hardware connection is shown in Figure 2-6-1:
Figure 2-6-1: LED in core board Schematic

Part 2.7: Power Supply

The ACKU040 core board power supply voltage is DC12V, which is
powered by the carrier board. The core board power supply schematic is show
as Figure 2-7-1.
Figure 2-7-1: Power Supply Design Diagram
Amazon Store: https://www.amazon.com/alinx
17 / 56
