FMS 1:24 FCX24 UNIMOG Instruction Manual page 8

Transmitter Instruction
Transmitter instruction
The product adopts the 2.4GHz AFHDS 2A-BS Automatic Frequency Hopping Digital System which consist of
FMS-G3 transmitter and FMS-R3A receiver. It supports two-way transmission, featuring 3-channel and compatible
with variety of car models.
本系统采用 2.4GHz AFHDS 2A-BS 协议，由 FMS-G3 发射机和 FMS-R3A 接收机组成。支持双向传输、共输出 3
个通道、兼容多种车模型。
Transmitter instruction
[3]
[4]
[5]

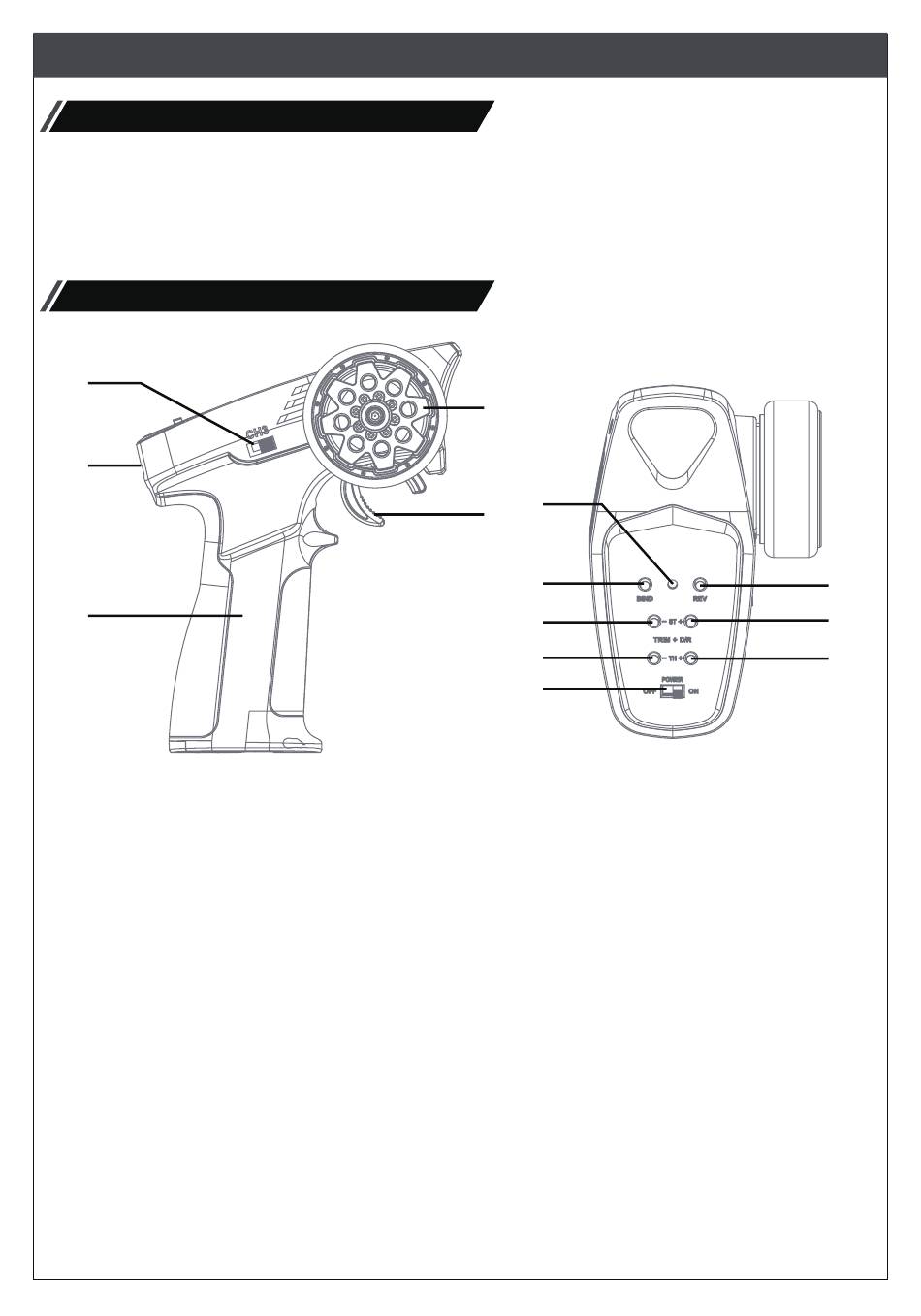

[1] Steering Wheel CH1
方向手轮 CH1
[2] Throttle Trigger CH2
油门扳机 CH2
[3] Three-position Switch CH3
三档开关 CH3
[4] Lanyard Eye
挂绳孔
[5] Handle (AAA*4 batteries can be installed inside）
手柄( 内可安装 AAA*4 电池）
[6] LED
指示灯
[7] BIND Button (Binding, turn on or off the car light
or reset data）
BIND 按键（对码）（对码、开启关闭车灯或数据复位）
发射机概览
发射机介绍
发射机概览
[8] ST- Button (To decrease the trim and travel value of CH1)
ST- 复位按键（减小 CH1 微调和舵量
[9] TH- Button (To decrease the trim and travel value of CH2）
TH- 复位按键（减小 CH2 微调和舵量）
[10] Power Switch
电源开关
[11] REV Button (To reverse the CH1 or CH2）
REV 复位按键（控制 CH1 或 CH2 方向）
[12] ST+ Button (To increase the trim and travel value of CH1）
ST+ 复位按键（增加 CH1 微调和舵量）
[13] TH+ Button (To increase the trim and travel value of CH2）
TH+ 复位按键（增加 CH2 微调和舵量）
