7.3 Statistics

TYPE (for C7000 command) :
1 - unit - room temperature
2 - unit - room humidity
3 - unit - supply air temperature
4 - unit - supply air humidity
5 - water temperature, inlet 1
6 - outside temperature
7 - outdoor humidity
8 - condensation pressure 1
9 - hot-gas temp. 1
10 - evaporation pressure 1
11 - suction gas temp. 1
12 - zone room temperature
13 - zone room humidity
14 - zone supply air temperature
15 - zone supply air humidity
16 - zone outdoor temperature
17 - water temperature, inlet 2
18 - water temperature, outlet 1
19 - water temperature, outlet 2
BA C7000 for EC Tower | EN | 01-2019 | 1000755

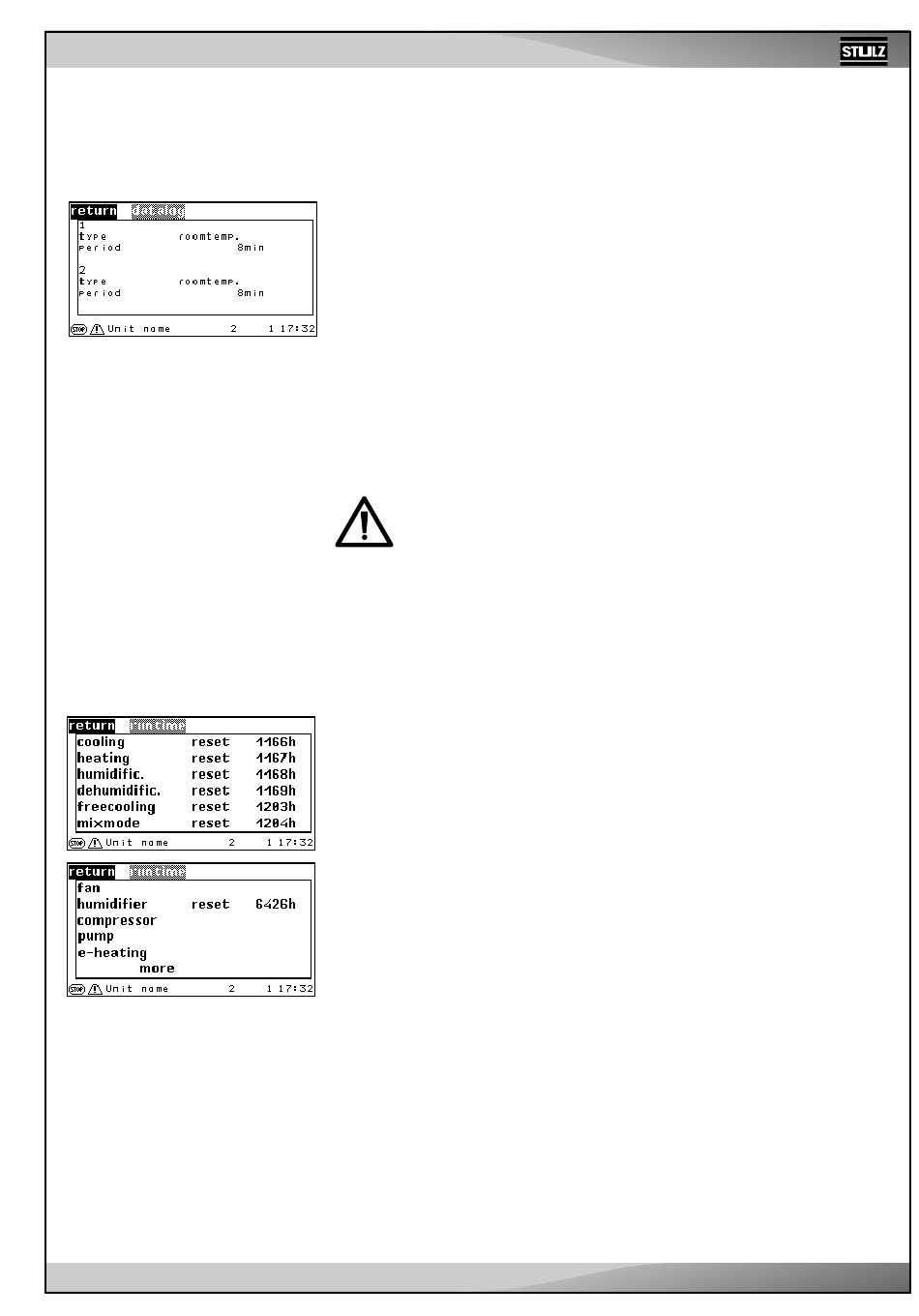

Config
Here, you can adjust the basic conditions for both data loggers.
This includes sensor type
➊
measured values of the corresponding sensor are stored.
➋
Each data logger can store a maximum of 1440 data points. The 1441st data point deletes
the first data point, etc. If you set 1 minute as the cycle rate, you will receive a graphic
over a period of 1440 minutes, which is exactly 24 hours. If you set 2 minutes as the cycle
rate, data points will be stored over a period of 2 days, etc.
Considering that a pixel width of only 180 is displayed in the graphic, we recommend
choosing the cycle rate depending on the period of time that is going to be displayed
(Info menu).
Time period (info menu)
- Hour
- Day
- Week
- Month
- Year
When changing a parameter (type or cycle rate (period)) or if the controller
is de-energized, all previous data of the corresponding data logger is
deleted.
This compilation of runtimes only exists in the C7000 Advanced. The runtime menus
are an exact copy of the menu branch with the same name in the Info menu. However,
they also allow runtimes to be reset.
Unlike the settings options in the C7000 I/O controller, in the C7000 Advanced you can
also reset the runtimes of superordinate unit functions.
Operation:
1. Select functions (cooling, heating, etc.) with the arrow keys
2. Confirm using the OK button
3. The cursor is now located in the center column on the "Return" field. Using the arrow
keys, you can choose between the "Delete" and "Return" options.
4. Confirm the chosen function using the OK button.
Statistics
Data loggers
➊ and cycle rate (periods)
Cycle rate
1 min.
8 min.
60 min.
240 min.
2880 min.
Statistics
Runtimes
➋ , giving the intervals at which
