Main menu (for a C7000 IOC)
Alarm text
Stop cause
Stop symbol
Alarm symbol

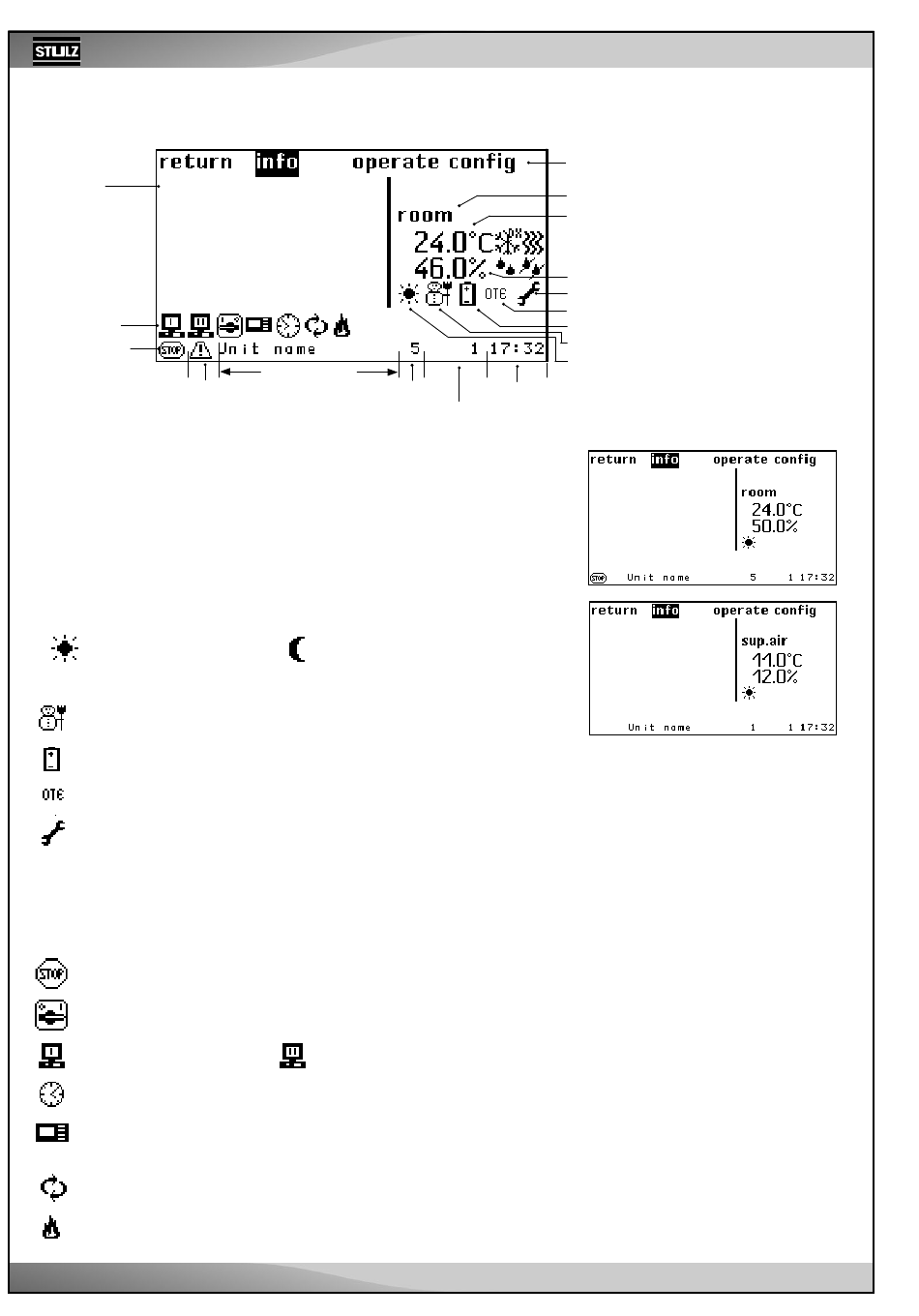

If you select and confirm an I/O controller, you will reach the standard window,
as shown on the right. You have the option of choosing one of three submenus:
"Info", "Operate" or "Config".
The control type (room or supply air) is displayed in the center of the window
and underneath, the corresponding actual values (room or supply air) are given.
Under the actual values there is a symbol that indicates day or night operation.
Day operation corresponds to operation with the first setpoint temperature.
Night operation corresponds to operation with the second setpoint temperature.
Day operation
Other symbols
This symbol is shown if the controller has been switched to winter op-
eration. The symbol goes out during operation in summer.
This symbol is displayed if voltage is present at the input for the UPS
operation or UPS operation is requested via a BMS.
This symbol is displayed if the OTE special software is activated and the
unit is in OTE mode.
This symbol is displayed if the maintenance interval, which can be ad-
justed in the Config menu, has elapsed.
Stop cause
The I/O controller can be stopped via several functions or devices that are indicated by
symbols on the AT.
This symbol indicates that the IOC has been stopped.
The following symbols indicate the cause of the unit being stopped.
stopped via Remote ON/OFF (Remote control switch at digital input)
stopped by BMS/WIB
stopped via the internal timer (week program)
stopped via the ON/OFF button on the C7000AT or by the "status stop" command
via the IOC service port.
stopped by the sequencing function (standby unit)
stopped by the fire alarm
16
Unit name
Bus address
Global address
Night operation
if necessary, stopped by the WIB sequencing
function (depending on the settings in the WIB)
Menu lines
Control type
Temperature
}
Main function
Humidity
Maintenance symbol
Special software OTE
UPS operation
Winter operation
Day/night operation
Time
