7. Configuration

First steps
1. When several units are present that are supposed to work in the bus network: Perform bus wiring and configure
bus.
2. Check the equipment in the Config level.
3. Configure or deactivate additional components, e.g. air damper, water warning system or humidifiers.
For the C7000AT you can do this in the Config level in the submenus of the "Components" menu item. Activating
the component, allocating an output for the component control, assigning an alarm input and setting the start value/
hysteresis are part of the configuration.
4. Perform sensor adjustment with reference instruments (Operate/Components/Sensor menu).
5. Adjust setpoints.
6. Adjust the special operating modes such as the week program, zone operation.
7. possible BMS configuration.

7.1 Values

Menu structure of the Info, Operate and Config main menus
The menu structure of the Info, Operate and Config main menus is depicted in chapter "12. Menu structure of the main menu for
operating the EC tower" on page 74.
...Temperature
...Humidity
➋ a
BA C7000 for EC Tower | EN | 01-2019 | 1000755
Operate

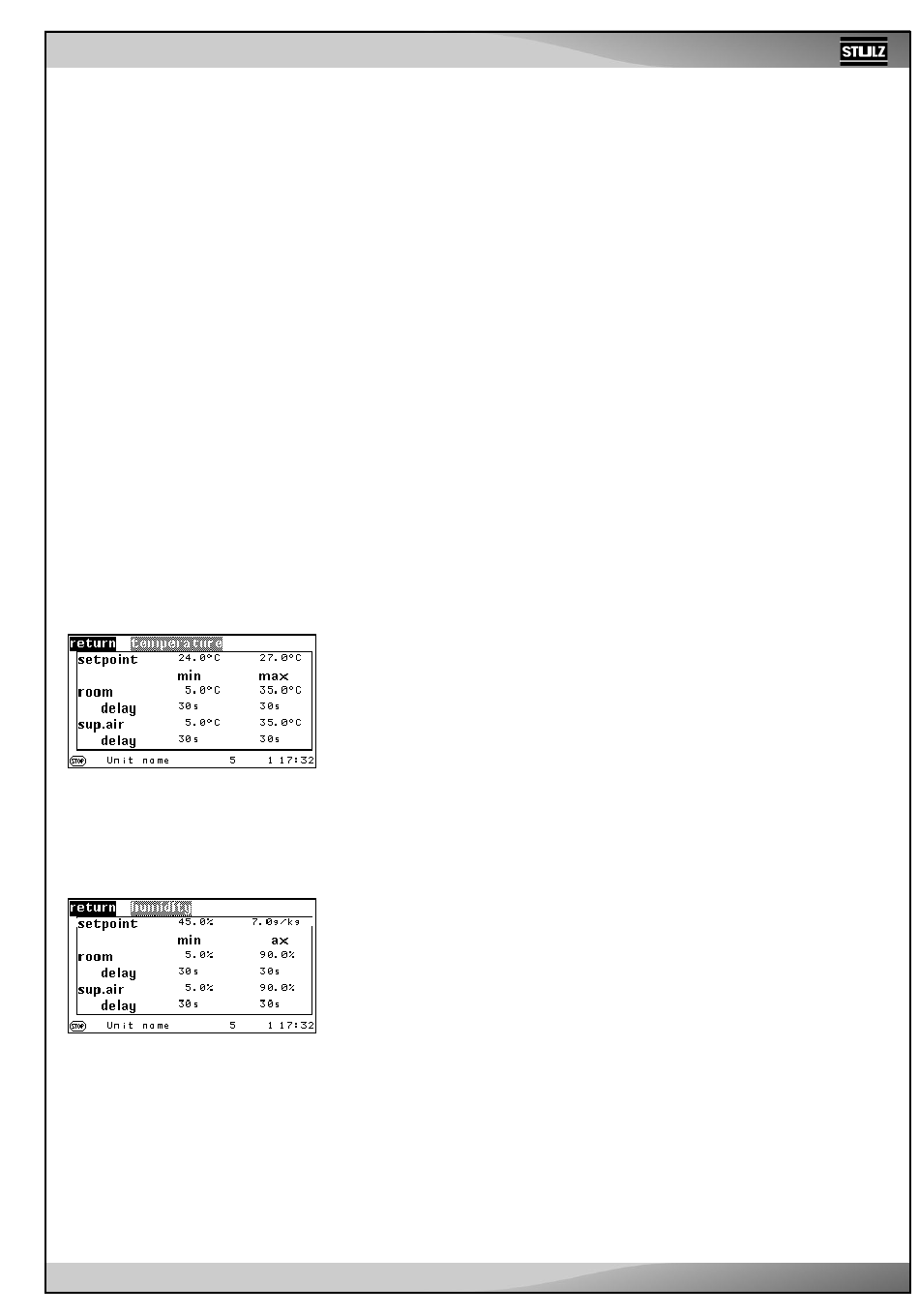

The first line of the menu concerns the adjustment of temperature setpoints. The following
lines serve to adjust the temperature limit values, which are decisive for the "Temperature/
humidity too high/low" alarms.
Two temperature setpoints can be defined. Setpoint 1 concerns day operation while
setpoint 2 concerns night operation. The distinction of when the unit should run in day
or night operation is established in the week program (see Page 47).
The limit values for the room air sensor follow this. The "MIN" column contains the values
for the lower temperature limit and the "MAX" column relates to the upper temperature
limit accordingly.
If, for example, the measured value undershoots the lower room air temperature limit,
the "Room temperature too low" alarm is displayed.
Below this, you can enter the alarm time delay in seconds.
The values for the supply air sensor can be adjusted in the same way.
You can set the same parameters for the relative humidity. However
no distinction is made between day and night setpoint values here.
➋ b
The setpoint for the specific humidity
specific
humidity.
The limit values for humidity are only valid for the humidity control of relative humidity.
Values/Air/...
➋ b is required for the control according to the
