6. Info menus

6.1. Info and Operate menus of the operation interface C7000AT

Menu structure of the Info main menu
The menu structure of the Info main menu is pictured in chapter "12. Menu structure of the main menu for operating the EC tower"
on page 74.
The depicted menus show the maximum configuration of the C7000AT operation interface.
In the following, menus will only be described if they are relevant for the EC tower.
The info main menu has the following selection menus: Values, components, zone, statistics and system. There is a parameter
menu at the end of a menu branch in the Info main menu. Relevant values are only displayed in the parameter menu. The values
cannot be changed in the parameter menu.
The following describes the Info main menu's selection menus and parameter menus (values). The Operate main menu and the
Config main menu are described when the relevant
selection menu is described.
The Info and Operate menus only display components,
sensors, unit alarms and auxiliary alarms that are
configured in the Config menu. This also has an effect
on the selection menus. If, for example, no heater is
configured, the "Heating" function is omitted in the "Info/
Components" menu and the "Operate/Components"
menu. If no zone is configured, this menu item is also
omitted in the "Info" and "Operate" menus. The runtime
menus under "Info/Statistics/Runtime" are also reduced
accordingly.

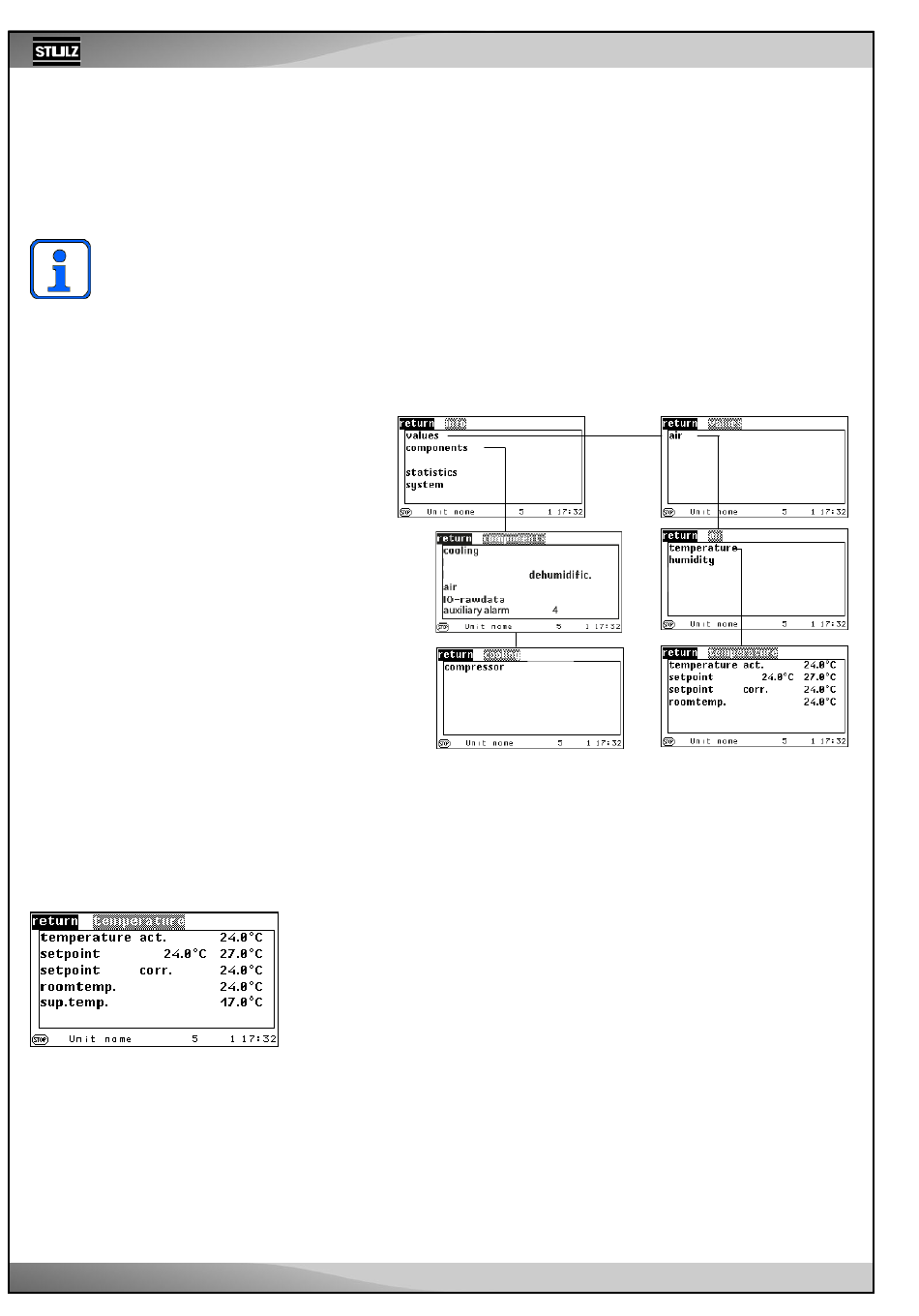

The Info menus for an air conditioning unit of design
A with a room air T/H sensor and an auxiliary alarm,
which is not in a zone, then shorten as shown opposite.
Subsequently, the menus appear in full size so that all
menu items can be clarified.
C7000 Advanced
...Air/temperature
18
Info
This window shows the following temperatures:
1. The value that is used for the control, can also be the zone temperature.
The zone values represent an average value that is calculated from all unit sensors
that are assigned to the same zone.
2. The adjusted setpoint (setpoint 1, setpoint 2)
3. The setpoint corrected by the controller, is controlled only according to this value.
Usually, this value matches the adjusted setpoint.
In the following circumstances, it can be different due to:
- Week program
- Backup operation
- Integral factor
4. The actual value of the room temperature sensor.
5. The actual value of the supply air temperature sensor.
6. The outside temperature.
Values
- External setpoint shifting
- Limiting control
