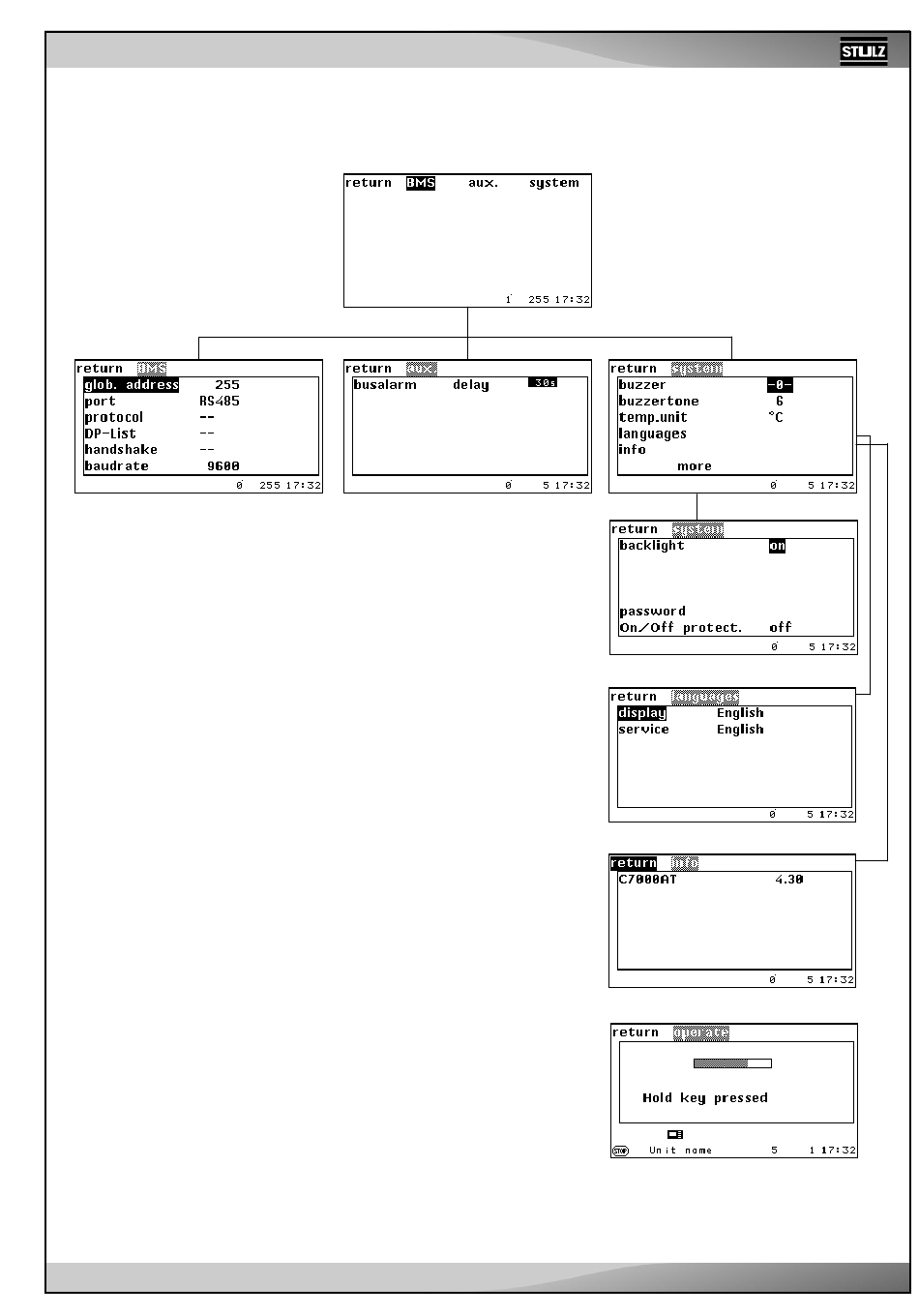

Main menu for a C7000AT
If you select the C7000AT for further
settings and confirm with OK, you
will reach the following display with
the menu branch below after enter-
ing the password 0000:
1. In the BMS menu, you can adjust the global address of the C7000AT and
select one of the RS232 or RS485 interfaces available on the C7000AT,
as well as the protocol according to the BMS requirement.
Other things that can be adjusted include "data point lists" (depending on
the protocol), "handshake" and "baud rate". For further information, see
the BMS instruction manual.
2. Here, you can set the alarm time delay for the bus alarm, which is
generated when the bus is interrupted.
3. You can switch the alarm sound on (-1) or off in the system menu. Fur-
thermore, you can adjust the pitch of the alarm sound.
You can decide whether the display is in degrees Fahrenheit or degrees
Celsius in the "Temperature unit" menu item.
You can select the operating language for this display and for the service
interface in the Language menu.
The Info submenu displays the C7000AT's software version.
Using the "Background light" menu item, you can choose between "on"
(the light remains on permanently) and "auto", which means that the light
switches off automatically once no button has been pressed for 10 minutes.
It switches back on after the first button has been pressed.
There are three possible settings for the "On/Off protection" menu item:
1. Off, 2. Dela. (Time delay), 3. Password.
With the first setting (Off), the control is switched on or off immediately
using the start/stop button of the controller.
With the second setting (Dela.), the display shown opposite appears when
the start/stop button is pressed. On this display, a green bar empties to the
left within 3 seconds. During this time, the button has to remain pressed,
otherwise the switching operation is not completed.
With the third setting (password), the operation password is requested
when the start/stop button is pressed. The switching operation is performed
once the password has been entered.
