7.2.6 Contacts

.../ D-IN
.../D-OUT
44
Config

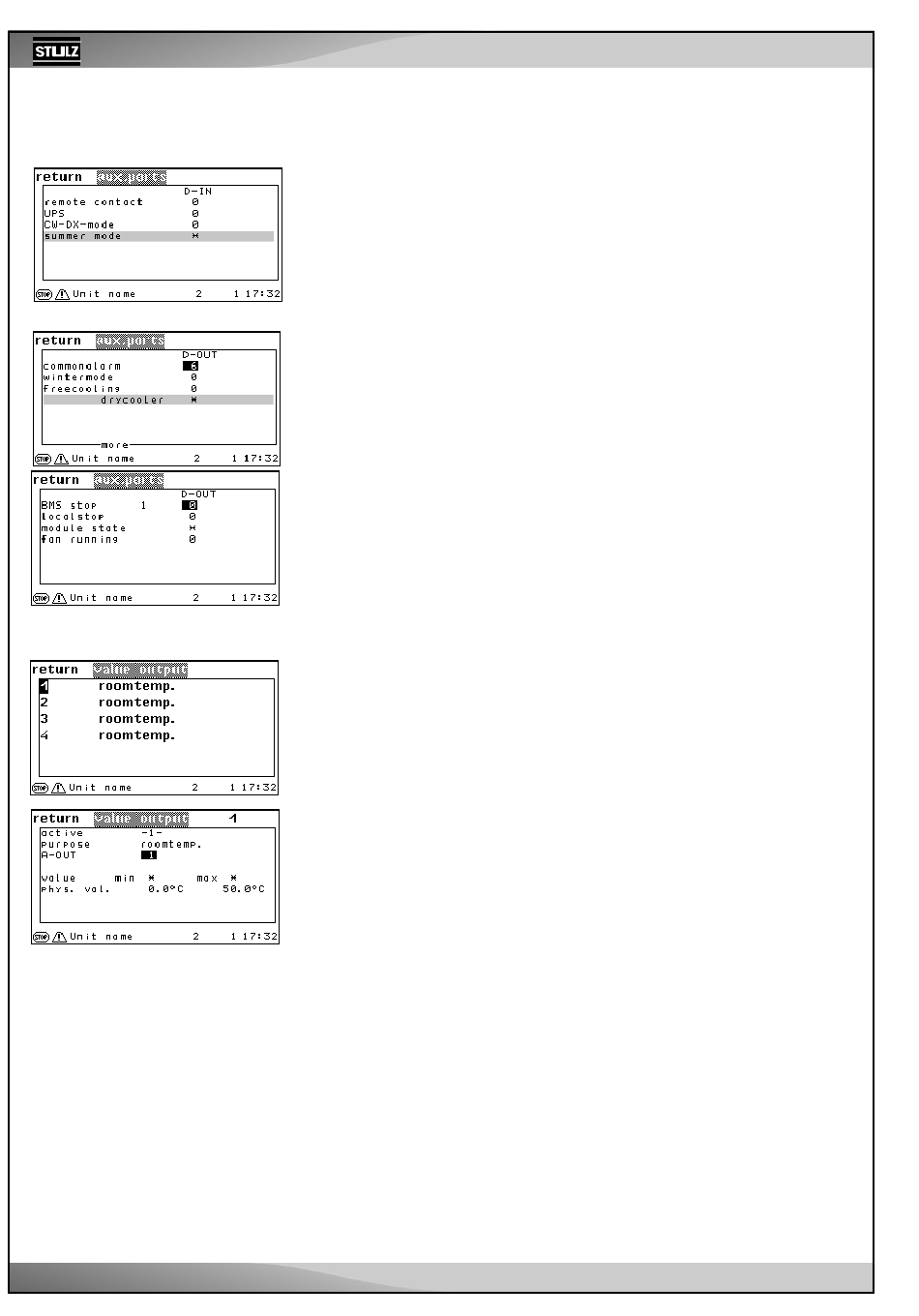

In this menu, you can assign digital inputs to external signals.
Furthermore, you can determine digital inputs for the remote on/off contact
➊
UPS operation ➋ and for the external cooling priority provision
➋
➌
The summer operation setting is only relevant for DFC² control.
In this menu, you can assign digital outputs to unit-related alarms and signals.
More specifically, you can determine the digital output for the common alarm
for winter operation (= approved Free Cooling)
➊
➋
forwarded to the BMS. Furthermore, the status of the Free Cooling operating type
➌
➍ (Free Cooling also means mixed mode here), of Free Cooling with a dry cooler
for chiller software), of the BMS stop 1 (control has been switched off via BMS)
of the local stop (control switched off via the start/stop button) can be outputted on
➏
a digital output.
Using the "module status" parameter, you can adjust the digital output
to display whether the unit is in operation or is in some kind of stopped condition.
In the last line, you can adjust the digital output
➎
➏
is running.
➐
➑
In this menu, you can output analog measurement values via analog outputs so that
these can be recorded by a BMS, for example.
Choose one of 4 value outputs that are set as standard with the "Room temp." sensor
purpose.
This opens a window that allows you to apply settings for this value output. You can
activate the value output in the first line. This means that you can place the settings in
lines 2 to 4 beforehand and save them without the value output occurring. The value
output only begins once you set the parameter in the first line to "1". If there are several
sensors with the same purpose, an average value is calculated.
The actual value that is outputted is determined in line 2. Using purpose
➊
on the previous page), the sensor that has this purpose is selected. If you select a pur-
➋
pose that has no sensor configured to it, the outputted value is 0V. Specify the analog
output ➋ in the third line.
➌ a,b
The parameters in line 5 serve to calibrate the output. For example, if you have chosen
a sensor with the purpose Water temperature inlet 2 and have entered the value 5.0°C
in line 5 for the "min" parameter
outputted at 5.0°C. 0V is also outputted at 4.0°C. Determine the upper limit, at which
10V is outputted, using the "max" parameter
Components
Contacts/...
➋ . The winter operation signal can be
➑ that is used to show whether a fan
Contacts/A-OUT
➌ a, you have thus specified in the lower limit. 0V is
➌ b.
