C7000 Advanced
.../Heating
.../Humidifiers
.../Air
20
Components
Info

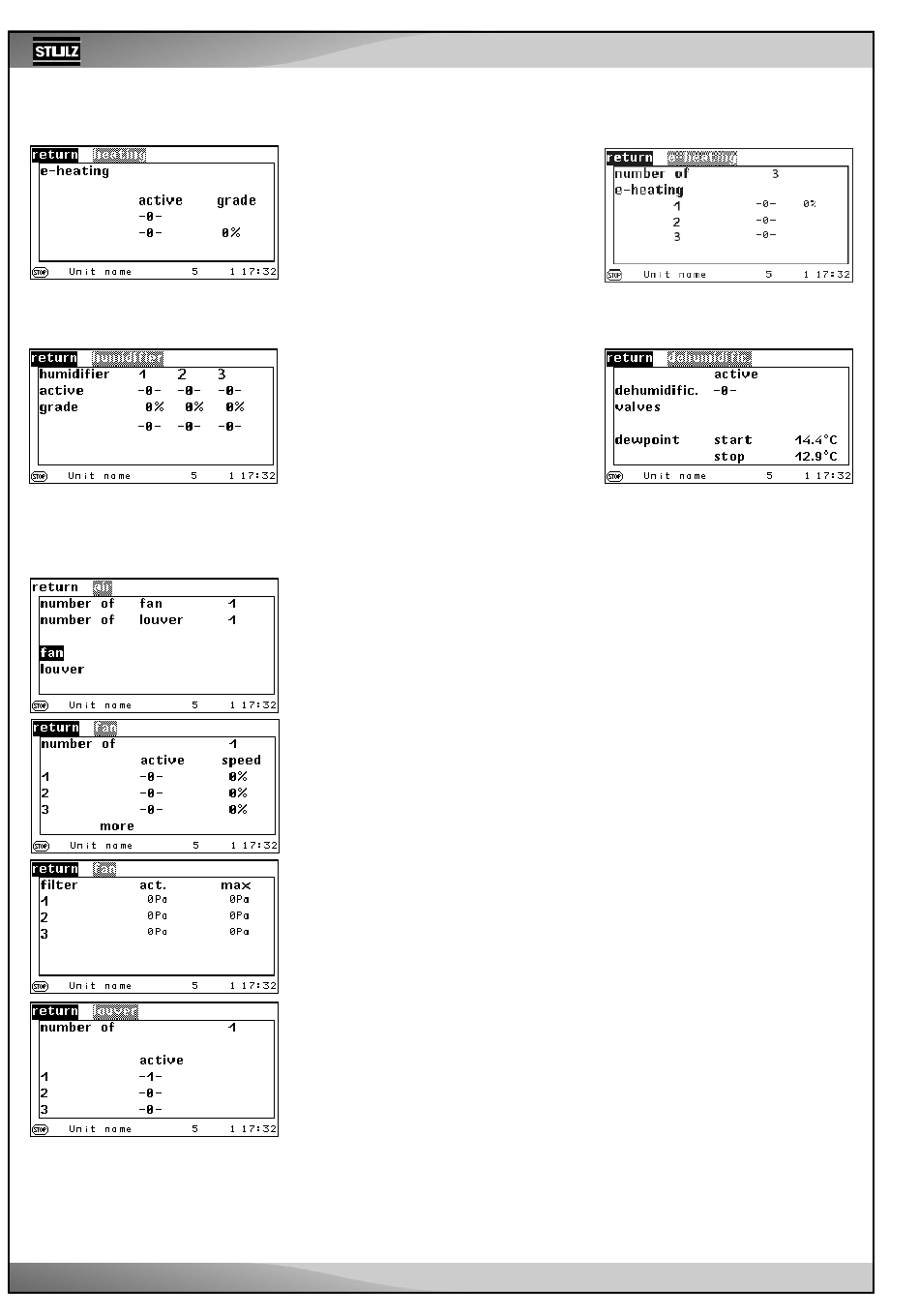

If the unit is equipped with a heater, the oper-
ating state of the heaters is displayed in this
window. For heaters with constant control, the
capacity is displayed from 0-100 %.
For the warm water heater, the capacity is
specified in the form of the degree of openness
of the valve.
The number of configured electric heaters
and their operating state is displayed in the
submenu for the electric heater. The first
heater can be actuated via the pulse width
modulation quasi proportionately.
If the unit is equipped with a humidifier, the
operating state of the humidifier and the de-
gree of steam generation is displayed here
from 0 to 100 %.
The Dehumidification menu shows whether
the dehumidification is switched on and
whether the dehumidification valve is open.
A switched-on dehumidification with a closed
valve shows that the fans are dehumidified via
the speed reduction.
The number of configured fans and air
dampers is shown in this window. Additional
menus can be opened from the "Fan" and
"Air damper" menu items. These additional
menus display the operating status of the fans
including the speed from 0-100 %.
In an additional menu about the fan, the filter's
pressure drops, measured by analog pressure
sensors, are compared with the maximum
permissible adjustable pressure drops.
If the air dampers are configured, -1- indicates
that the air damper is open.
.../Heating/Electric heater
.../Dehumidification
