C7000 Advanced
Info

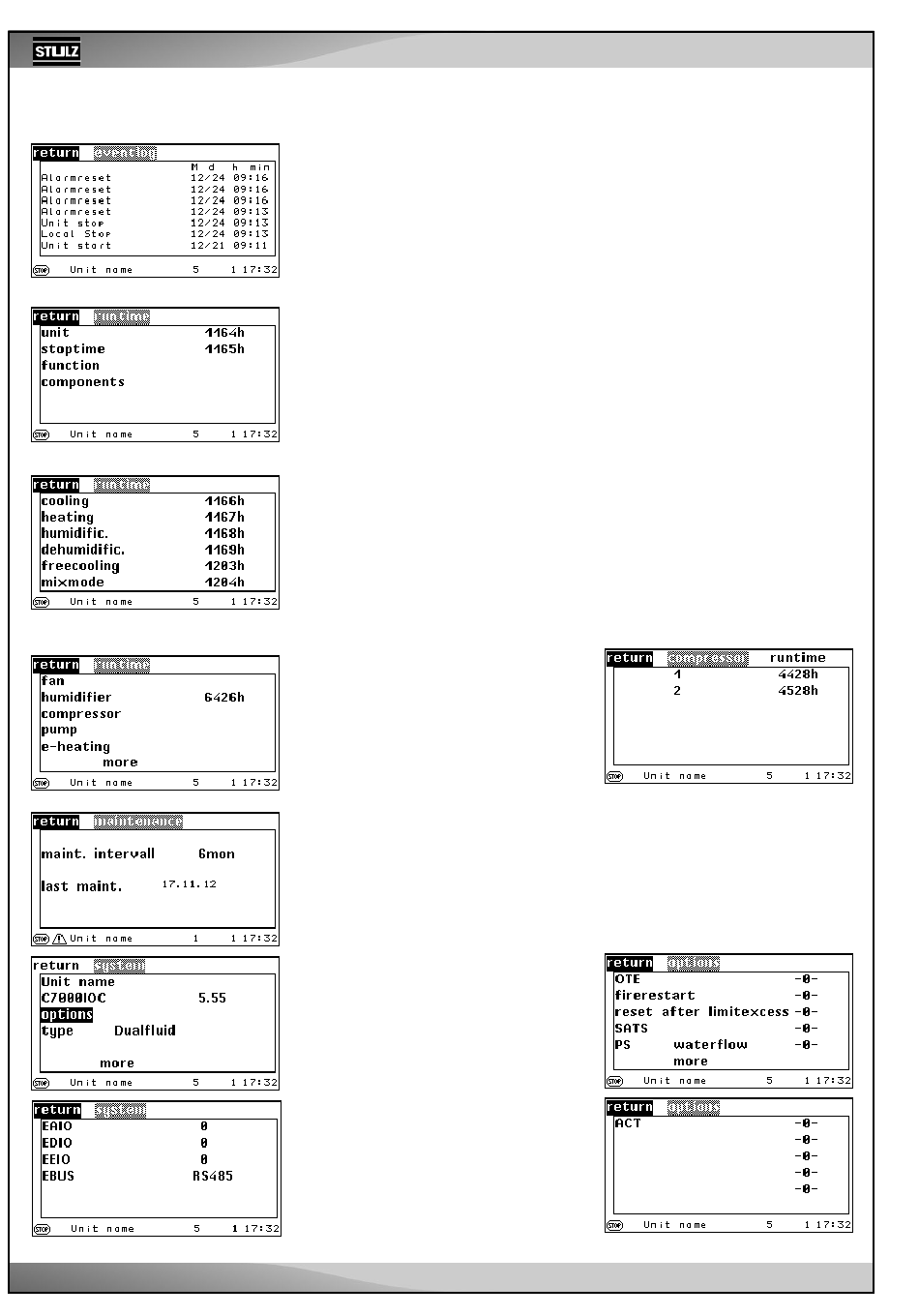

Statistics/Events
All alarm signals and events (Unit on/off, watchdog (WD) restart) of one unit are displayed
in this window. The signals contain the following information:
Alarm text, day and time.
Up to 200 signals can be stored.
Statistics/Runtimes
The runtimes are shown in hours.
The unit runtime comprises all times when the unit is not in a stop/standby mode.
The stop time is counted, when the unit is in a stop/standby mode.
Stop mode means: Unit is supplied with power, but the control is switched off.
The runtimes of the functions are displayed in a submenu.
The cooling runtime is counted when cooling is requested. The heating runtime is counted
when heating is requested. The humidification runtime is the time in which the unit has
humidified. The dehumidification runtime is counted when dehumidification is requested.
The runtime for Free Cooling is counted when the opening degree of the GE valve is bigger
than 0, when no compressor request exists and when the GE valve is not heating. The
runtime for the mixed mode is counted when the degree of openness of the GE valve is
bigger than 0, when a compressor request exists and when the GE valve is not heating.
The runtimes of the components are displayed
in another submenu.
The fan and humidifier runtimes are displayed
here.
For the compressor, pump, electric heater and
dry cooler components, more submenus exist
of the kind shown on the right.
Statistics/Maintenance
In this window, the adjusted maintenance inter-
val and the date of the most recent maintenance
are displayed.
System
In this menu, the software version and the unit
type are displayed.
The "Option" menu item leads to a submenu,
which displays which special software options
are active.
The number of connected EAIO, EDIO, EEIO
and EBUS boards is indicated here.
