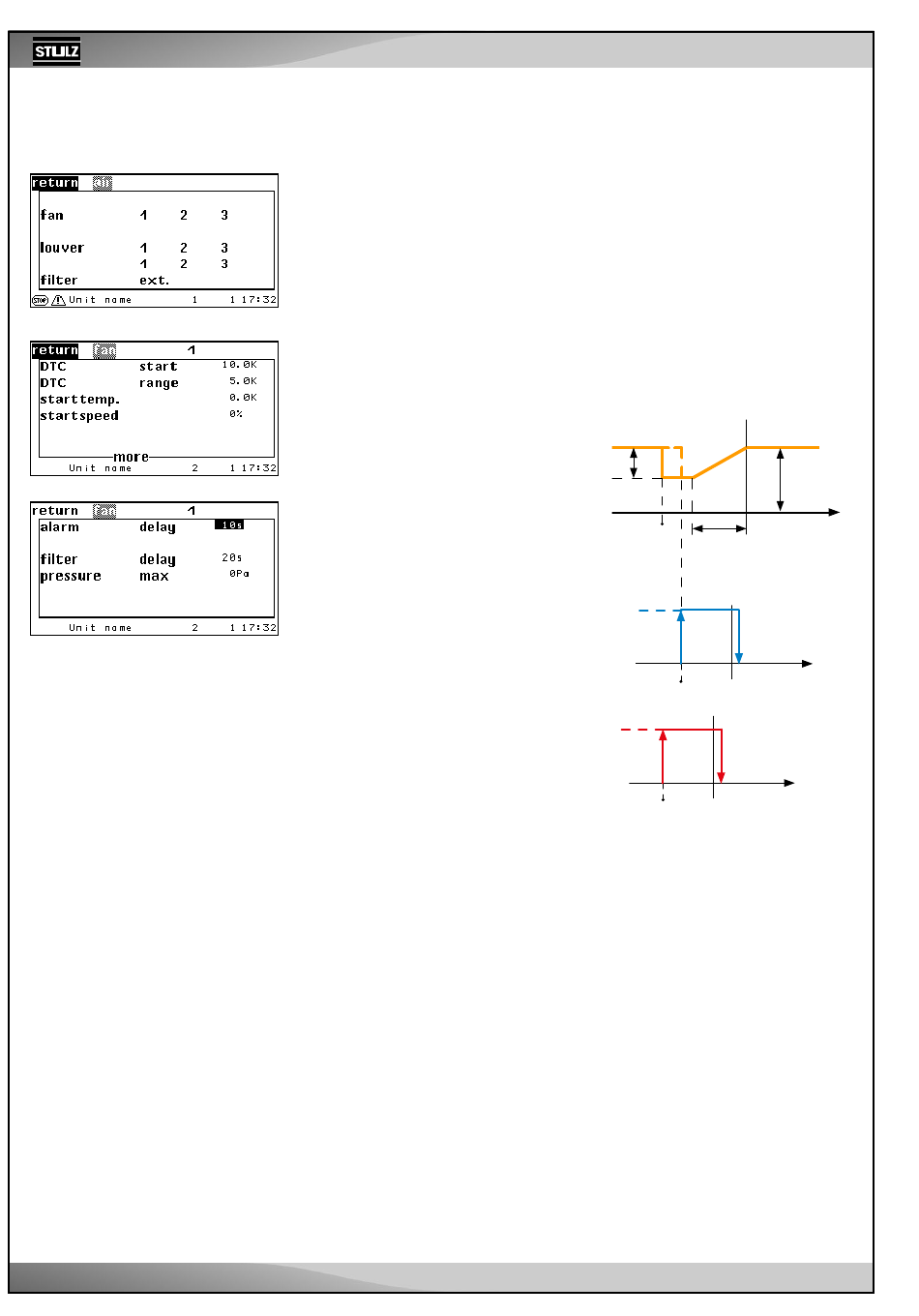

7.2.2 Air circuit, internal standard components

34
Operate
On the EC tower, a fan can be individually controlled.
The parameters "DTC start" and "DTC range" are related to the differential temperature
control. The differential temperature control is not active for the EC tower.
Reduction according to temperature
Enter the start temperature as a negative difference to the air temperature setpoint.
Enter the start speed as a percentage of reduction of the maximum speed.
The speed lowers proportionately with
➊
a sinking air temperature up to the start
➋
speed if the set temperature difference
under the temperature setpoint is reached.
However, if the heater or humidification is
requested, the speed is raised to its original
value.
Alarm parameters:
➌
Airflow alarm time delay
Filter alarm time delay
➍
➎
Monitoring the pressure drop of an in-
ternal air filter
You can set a maximum value
analog differential pressure monitor, which
monitors the pressure loss via the prefil-
ter. An alarm is generated if the value is
exceeded.
To correctly assign the differential pressure
monitor, you must configure the sensor with
the sensor purpose 24, 25 or 26.
Components/Air
Fans
Fan speed
➊
➋
➌
➍
Humidif.
ON
➎ for an
OFF
Heater
ON
OFF
BA C7000 for EC Tower | EN | 01-2019 | 1000755
➋
Setpoint
n
max
n
maxCW
+ offset
➊
T/°C
Heater
start
Humidity set-
point
%r.h
Humidif.
Start
T/°C
Temp.
Heater
setpoint
start
➊
or
