On/Off control
Dehumid.
➋
ON
OFF
Setpoint
➊
Dehumidification range
min max GE off
5 10 14 20
Water temp.
Dehumidification stop
Dehum.
1K
Temp.
setpoint
ON
OFF
➍
38
Operate

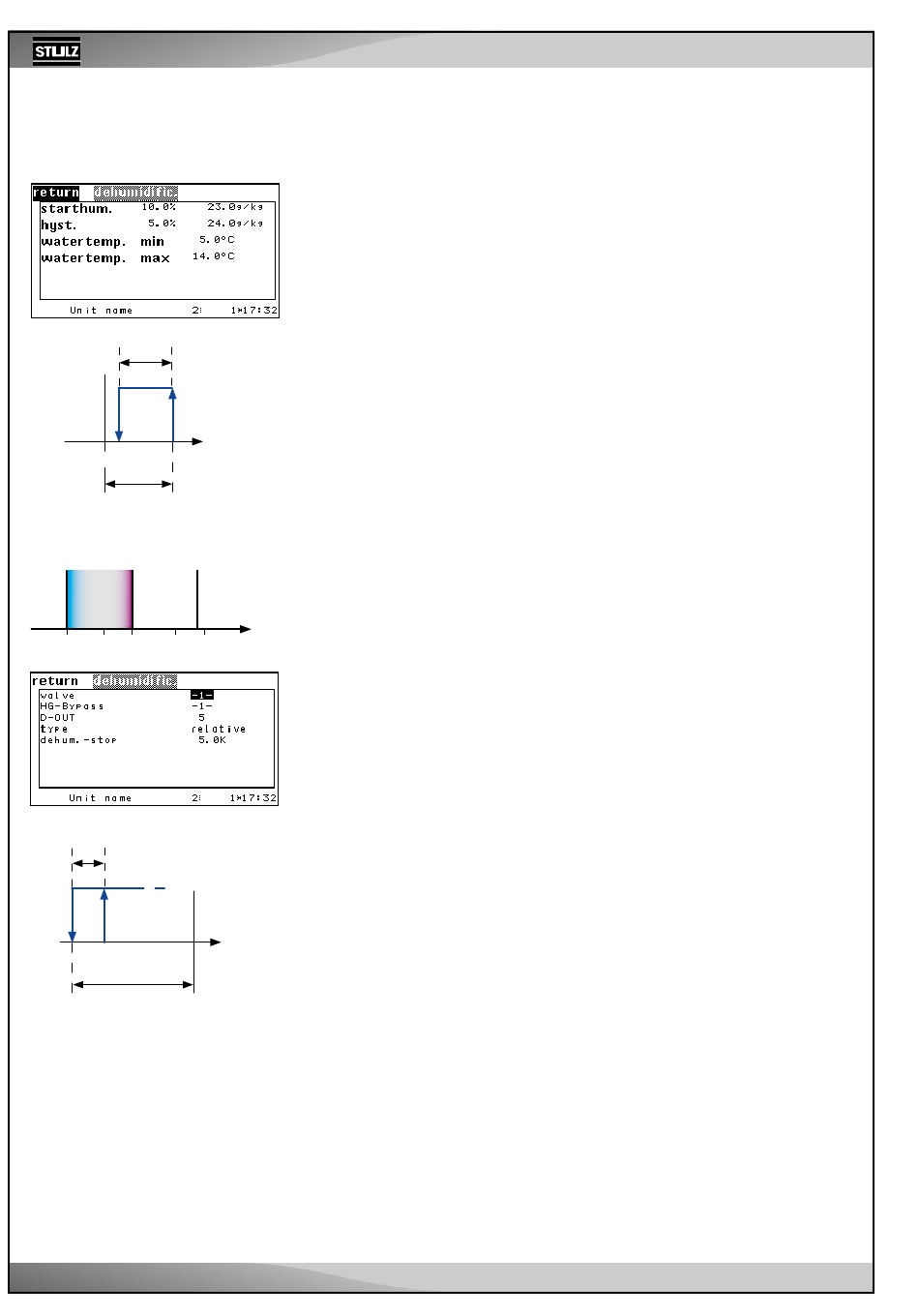

The start humidity for the dehumidification is entered as a positive difference to the room
➊
humidity setpoint.
➋
To fundamentally block the dehumidifying function, the start humidity has to be set to
➌
100 %.
➍
The hysteresis for the dehumidification step is entered in the second line.
Adjusting the water temperature limits for the dehumidification relates to the possibility
of dehumidifying the air via a GE register using fan speed reduction.
If the water temperature limits are exceeded, the controller switches to dehumidification
using the compressor operation.
Note:
The dehumidification speed is set in the Air/Fan menu.
%r.h
Config
When there is a dehumidification request with compressor operation, the full refrigerant
mass flow is required by the partial admission flow of the evaporator or by the airflow
reduction due to the drops below dew-point.
This also applies during compressor operation and speed reduction.
You determine the digital output for the dehumidification using the "D-OUT" parameter.
24 °C
In order to avoid a feedback circle of dehumidification and cooling, where the sinking
temperature causes an increased rel. humidity which then leads to a new dehumidification
request, you can enter a stop temperature
➌
air temperature setpoint and avoids dehumidification during a shortfall.
➍ The dehumidification is switched on with a fixed hysteresis of 1 Kelvin as soon as the
room temperature rises above the stop temperature (+ 1 Kelvin) again.
Process of dehumidification for the EC tower (Size 1 and 2):
During a dehumidification request, the speed of the fan is reduced and the compressor
operation is converted to the nominal speed (100 %) (see "Config/Compressor/Dehumid.
speed" on page 28).
Process of dehumidification for the EC tower (Size 3):
During a dehumidification request, both compressors are converted to the nominal
speed (60 %).
T/°C
Components/humidity
Dehumidification
➊
Dehumidification
➍ which is set as a negative difference to the
