Accelnet

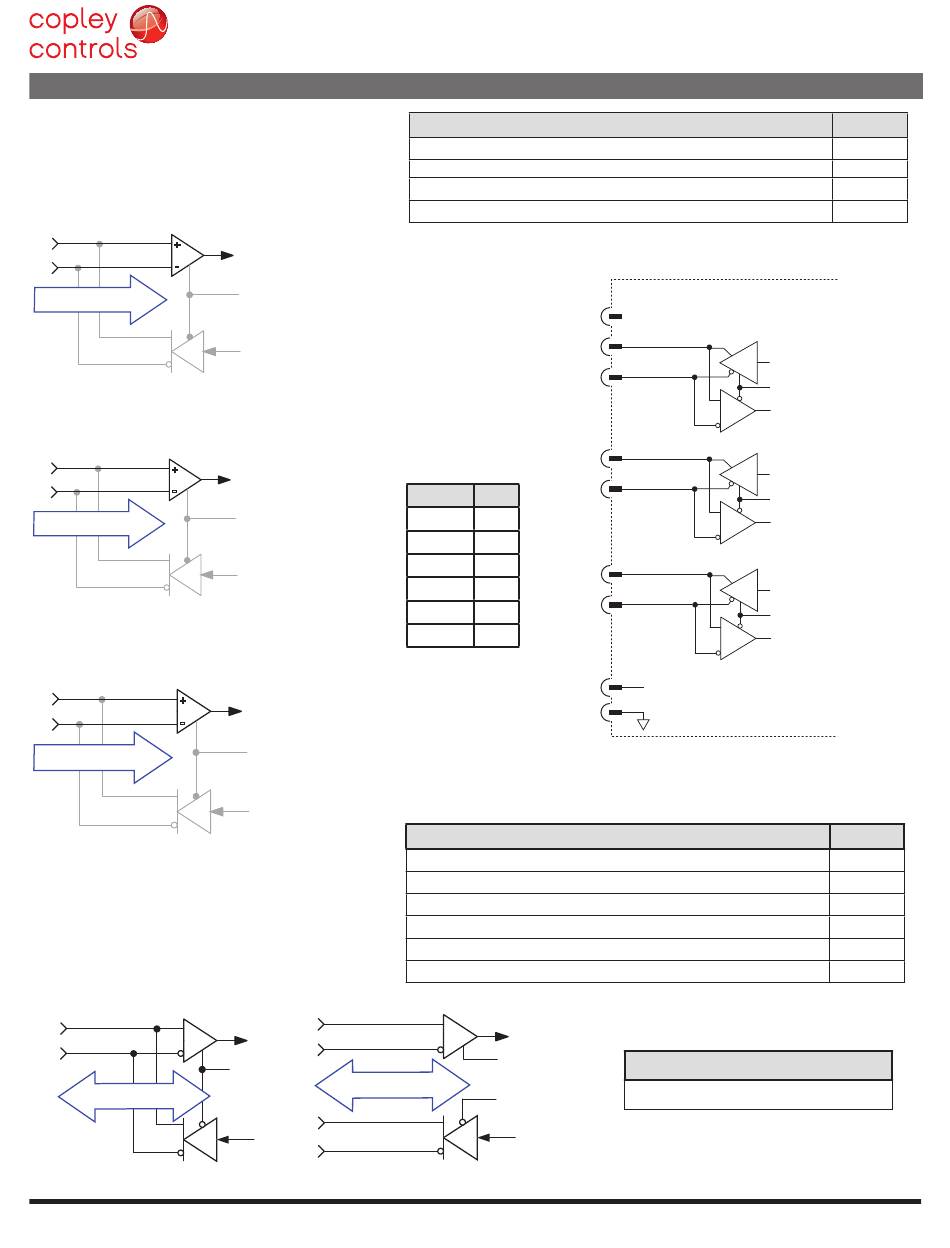

MULTI-MODE PORT AS AN INPUT
COMMAND INPUT
POSITION COMMANDS: DIFFERENTIAL
• Pulse & Direction
• CW & CCW (Clockwise & Counter-Clockwise)
• Encoder Quad A & B
• Camming Encoder A & B input
Pulse/Dir or CU/CD
differential commands
CURRENT or VELOCITY COMMANDS: DIFFERENTIAL
• Current/Velocity Magnitude & Direction
• Current/Velocity 50%
Vel/Pol, Curr/Pol or 50%
differential commands
FEEDBACK INPUT: ENCODER 2
SECONDARY FEEDBACK: INCREMENTAL
• Quad A/B/X incremental encoder
A/B/X signals from
digital encoder
SECONDARY FEEDBACK: ABSOLUTE
• Half-Duplex: Absolute A encoders (2-wire)
The A channel first transmits a Clock signal and
then switches to a receiver to receive data from
the encoder
• Full-Duplex: SSI, BiSS, EnDat encoders (4-wire)
The X channel sends the Clock signal to the
encoder, which initiates data transmission to the
A-channel
A
2-Wire digital absolute
encoder signals
A
