ENCODER 1 (PRIMARY FEEDBACK)
ENDAT ABSOLUTE ENCODER
The EnDat interface is a Heidenhain
interface that is similar to SSI in the use
of clock and data signals, but which also
supports analog Sin/Cos channels from
the same encoder. The number of position
data bits is programmable as is the use
of Sin/Cos channels. Use of Sin/Cos
incremental signals is optional in the EnDat
specification.

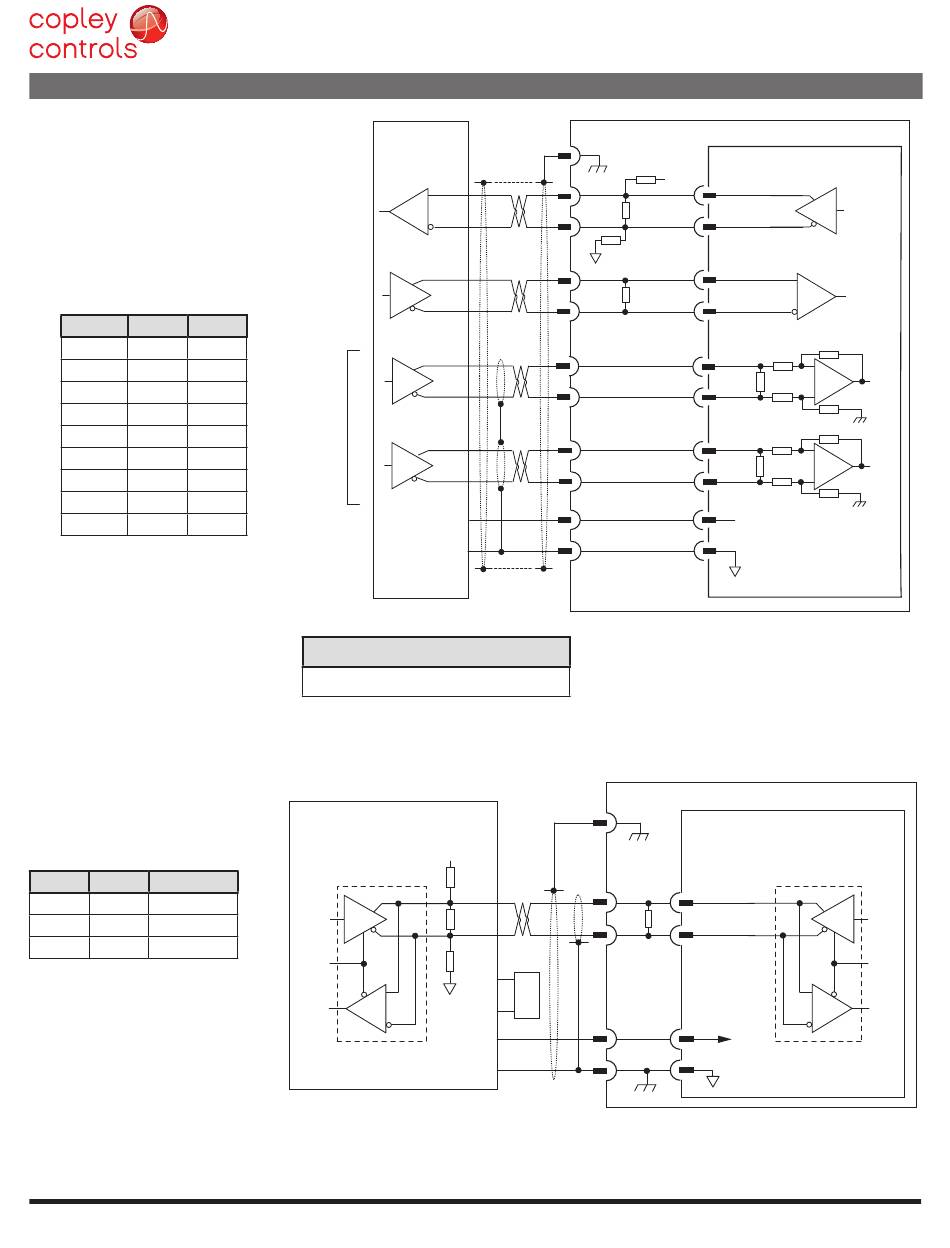

ENDAT SIGNALS
EnDAT Signal J2 Pins
Clk ENCX1
/Clk /ENCX1
Data ENCA1
/Data /ENCA1
Sin(+) * SIN1+
Sin(-) * SIN1-
Cos(+) * COS1+
Cos(-) * COS1-
+5V +5ENC 57,58
* Sin/Cos optional with EnDat 2.2
or any 1 Mbit or faster Endat
Sin/Cos required if EnDat 2.1 < 1 Mbit
ABSOLUTE-A ENCODER
The Absolute A interface is a serial, half-duplex type that is electrically the same as RS-485.
Note the battery which must be connected. Without it, the encoder will produce a fault condition.
ABSOLUTE-A SIGNALS
ABS-A Signal J2 Pins
Data ENCA1 43
/Data /ENCA1 44
+5V +5ENC 57,58
• Absolute A
• Tamagawa Absolute A
• Panasonic Absolute A Format
• Sanyo Denki Absolute A
