Accelnet
EZ BOARD PRIMARY FEEDBACK CONNECTOR P1

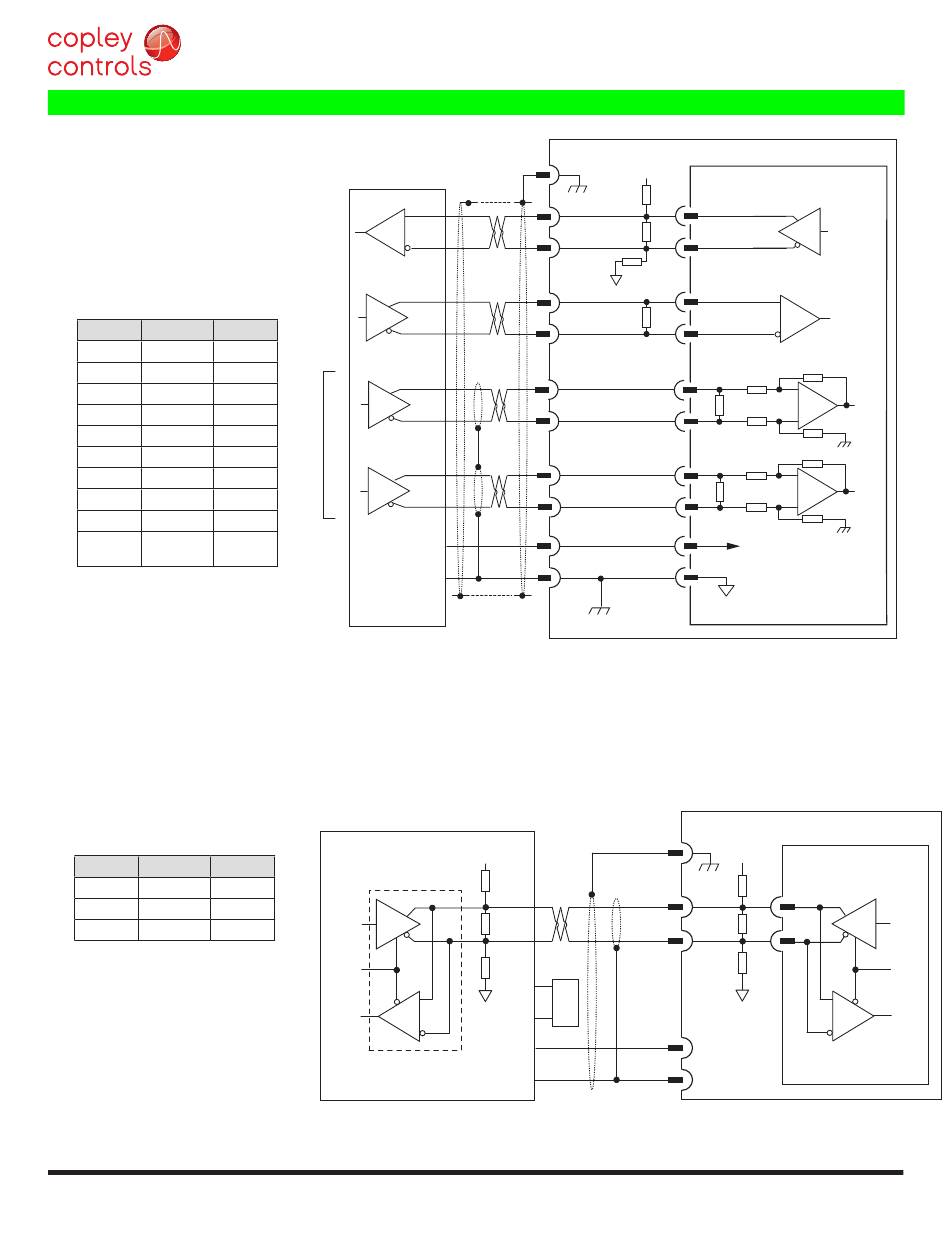

ENDAT ABSOLUTE ENCODER
The EnDat interface is a Heidenhain
interface that is similar to SSI in the use
of clock and data signals, but which also
supports analog Sin/Cos channels from
the same encoder. The number of position
data bits is programmable as is the use
of Sin/Cos channels. Use of Sin/Cos
incremental signals is optional in the EnDat
specification.
ENDAT SIGNALS
EnDAT Signal P1 Pins
Clk ENCX1
/Clk /ENCX1
Data ENCA1
/Data /ENCA1
Sin(+) * SIN1+
Sin(-) * SIN1-
Cos(+) * COS1+
Cos(-) * COS1-
+5V +5VENC
0V SGND
* Sin/Cos optional with EnDat 2.2
or any 1 Mbit or faster Endat
Sin/Cos required if EnDat 2.1 < 1 Mbit
ABSOLUTE-A ENCODER
The Absolute A interface is a serial, half-duplex type that is electrically the same as RS-485.
Note the battery which must be connected. Without it, the encoder will produce a fault condition.
ABSOLUTE-A SIGNALS
ABS-A Signal J2 Pins
Data ENCA1
/Data /ENCA1
+5V +5VENC
• Absolute A
• Tamagawa Absolute A
• Panasonic Absolute A Format
• Sanyo Denki Absolute A
* Battery optional
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
P/N 16-01681 Rev 15
Plus
EnDAT
Encoder
Clk
Data
9
8
13
sin
12
19
18
Cos(+)
21
cos
20
6,17
5, 16
+5V
25,26
Absolute-A Encoder
13
12
SD
6, 17
D-R
Cmd
MAX3362B
Micro
Module EtherCAT
AEV EZ P1
Clk
Clk
/Clk
/Clk
Dat Data
/Data
/Dat
Sin(+)
Sin(+)
Sin(-)
Sin(-)
Cos(+)
Cos(-)
Cos(-)
+5VENC
SGND
0V
5V
1.2k
SD+
220
SD-
1.2k
*
Batt+ +
-
Batt-
+5V
V+
0V
V-
Tel: 781-828-8090
AEV
+5V
AEV J2
1k
A
130
B
1k
A
121
B
-
121
+
-
121
+
+5VENC
SGND
AEV EZ P1
AEV J2
5V
1k
Data
130
/Data
1k
+5V Out
@ 500 mA
SGND
Fax: 781-828-6547
Page 34 of 52
Clk
Data
Sin
Cos
Cmd
D-R
SD
