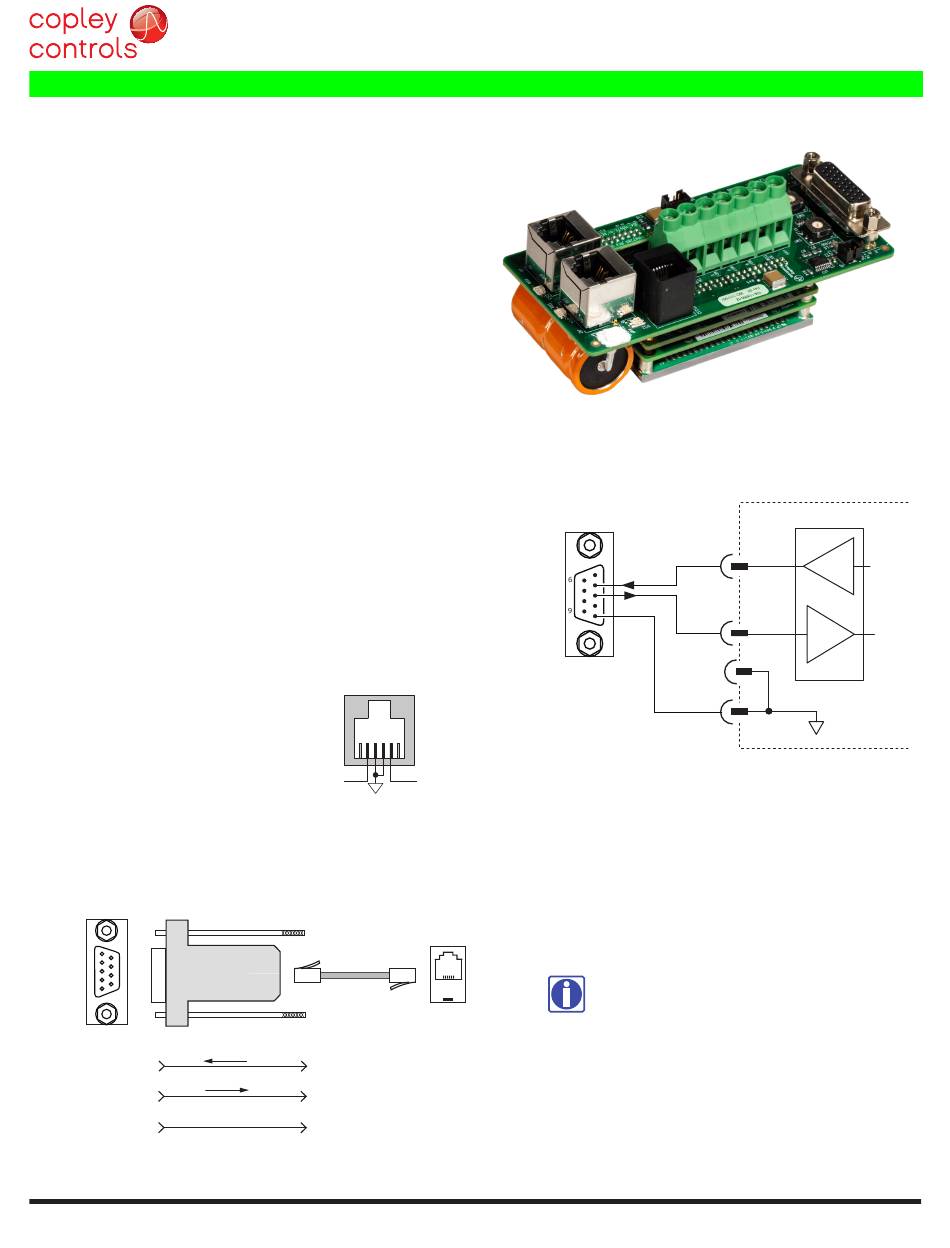

Copley Controls AccelnetPlus AEV-090-14 Manual page 25

Accelnet
EZ BOARD
DESCRIPTION
The EZ Boards provide connectivity to these AEV models so
they can be mounted directly to equipment surfaces.
The AEV-EZ-090 EZ Board accepts these models as plug-ins:
AEV-090-14
AEV-090-30
The AEV-EZ-180 EZ Board accepts these models as plug-ins:
AEV-180-10
AEV-180-20
Important: The AEV-EZ-090 EZ Board is not compatible
with the AEV-090-50 and AEV-090-50-C models.
For higher current, the AEZ-090-50 is an AEV-090-50
soldered to the EZ Board at the factory as a single assembly.
RS-232 CONNECTION
The RS-232 port is used to configure the drive for stand-alone
applications, or for configuration before it is installed into an EtherCAT
network. CME software communicates with the drive over this link
and is then used for complete drive setup. The EtherCAT Device ID
that is set by the rotary switches can be monitored, and a Device ID
programmed as well.
The RS-232 connector, J9, is a modular RJ-11 type that uses a
6-position plug, four wires of which are used for RS-232. A connector
kit is available (SER-CK) that includes the modular cable, and an
adaptor to interface this cable with a 9-pin RS-232 port on a computer.
SER-CK SERIAL CABLE KIT
The SER-CK provides connectivity between a D-Sub 9 male connector and the RJ-11
connector J9 on the EZ board. It includes an adapter that plugs into the COM1 (or
other) port of a PC and uses a straight-through modular cable to connect to the AEV.
The connections are shown in the diagram below.
1
Dsub-9F
6
to RJ11
Adapter
9
5
D-Sub 9F
2
RxD
3
TxD
5
Gnd
Copley Controls, 20 Dan Road, Canton, MA 02021, USA
P/N 16-01681 Rev 15
Plus
Micro
J9
6 5 4 3 2 1
RS-232
TxD RxD
6 1
RJ-11 cable
6P6C
RJ-11
Straight-wired
on
Servo
Drive
5
TxD
2
RxD
3
Gnd
Module EtherCAT
1
RxD
TxD
5
Gnd
D-Sub 9M
(DTE)
Don't forget to order a Serial Cable Kit SER-CK
or SER-USB-RJ11 when placing your order for
an AEZ drive, or an EZ board.
Tel: 781-828-8090
AEV
EZ J9
5
TxD TD
2
RD
RxD
3
4
SGND
Fax: 781-828-6547
Page 25 of 52
