5.7.1

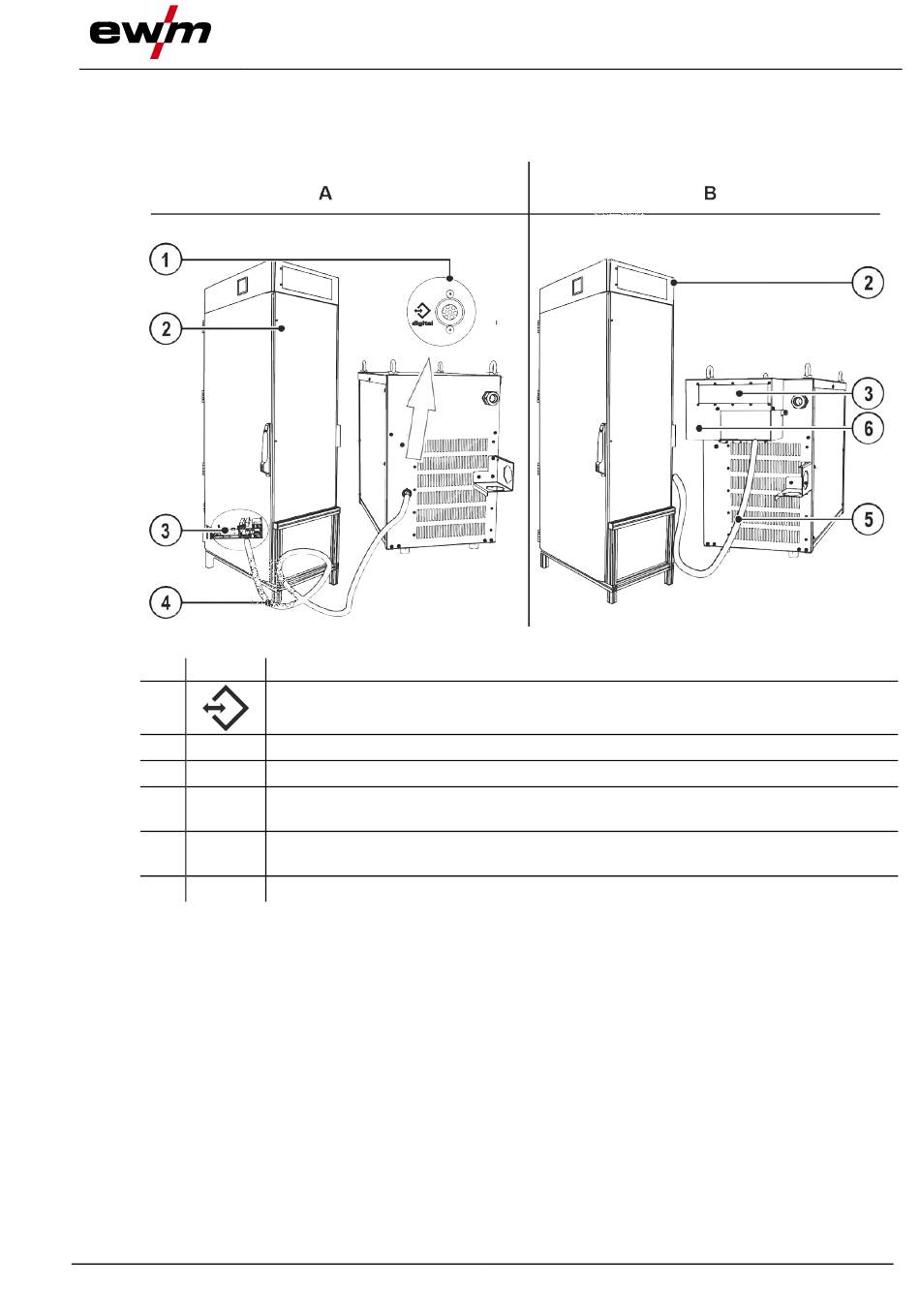

Connecting the robot interface / industrial bus interface

The interfaces can be operated directly on the power source in a separate interface casing or externally,
e.g. in a robot control cabinet or via a data cable.
Item Symbol
1
2
3
4
5
6
5.7.1.1

RINT X12 robot interface

The standard digital interface for mechanised applications
(optional, retrofitting on the machine or external fitting by the customer)
Functions and signals:
• Digital inputs: start/stop, operating modes, JOB and program selection, inching, gas test
• Analogue inputs: control voltages, e.g. for welding performance, welding current, etc.
• Relay outputs: process signal, ready for welding, system composite fault, etc.
099-000141-EW501
22.03.2023
Description 0
7-pole connection socket (digital)
For connecting digital accessory components
Switching cabinet
Robot interface / Industrial bus interface
7-pole connection cable
Connection between switching cabinet and power source
Connection lead
Connection between interface casing and switching cabinet
Interface casing ATCASE
Figure 5-50
Design and function
Interfaces for automation
