• Insert the plug on the welding current lead into the "-" welding current connection socket and lock.
• Lock the connecting nipples on the cooling water hoses into place in the appropriate quick connect
couplings: Connect the red return line to the red quick connect coupling (coolant return) and the blue
supply line to the blue quick connect coupling (coolant supply).
• Insert cable plug on the control lead into the 19-pole connection socket (digital) and secure with crown
nut (the plug can only be inserted into the connection socket in one position).
• Connect the crown nut on the shielding gas lead to the G¼" connecting nipple, shielding gas connec-
tion.
5.2.3

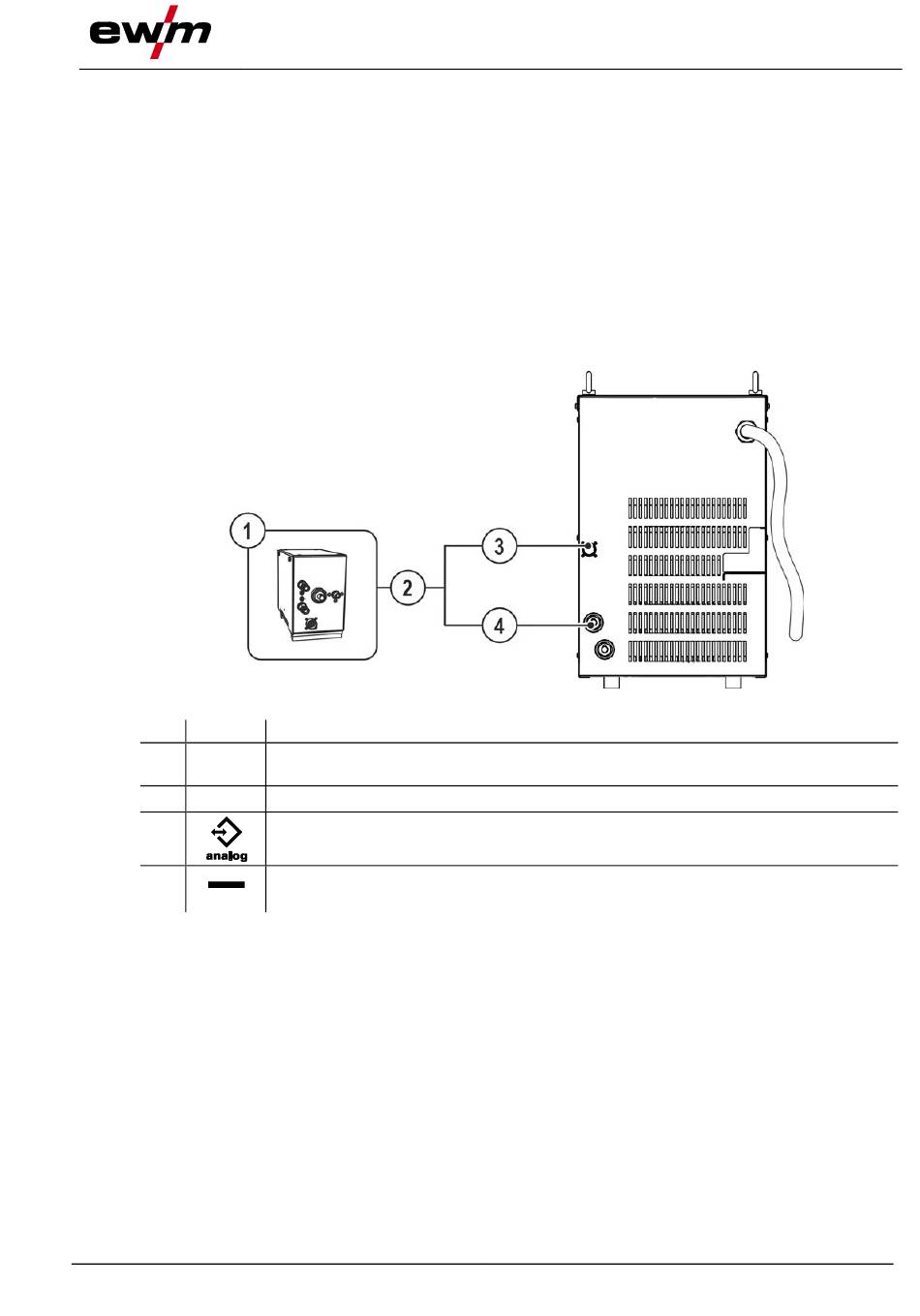

Connecting the media separation box to the power source

When using a media separation box the gas supply must be connected directly to the media
separation box.
Gas monitoring can be configured using the Tool EWMConfig.Net.
Item Symbol
1
2
3
4
• Plug the welding current lead plug into the welding current "-" connecting nipple and lock.
• Insert the control cable plug into the 19-pole connection socket (analog) and secure with a crown nut.
(The plug can only be inserted in one position.)
099-000141-EW501
22.03.2023
Description 0
Media separation box
Observe additional system documents!
Connecting hose package
19-pole connection socket (analogue)
Connection socket for analogue control signals (collision protection, etc.)
Connector plug (TIG)
Welding current, minus potential
Connect the cooling unit to the power source
Figure 5-11
