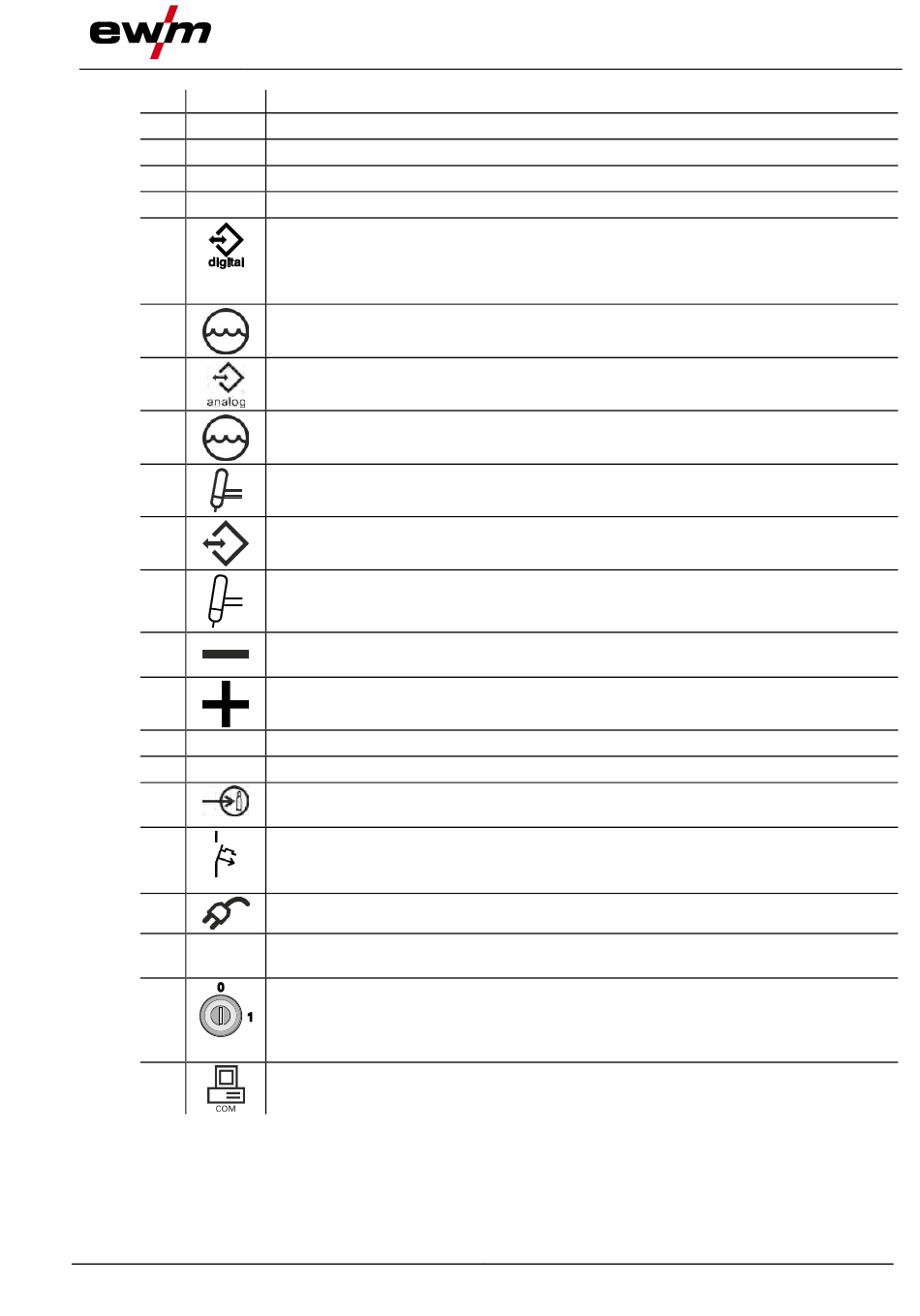

Item Symbol
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
099-000141-EW501
22.03.2023
Machine description – quick overview
Description 0
Lifting lug > see 5.1.1 chapter
Machine control > see 4.2 chapter
Cooling air inlet
Machine feet
Interfaces
Optional interface in the extension casing for assembly onto the power source
• RINTX11 robot interface
• BUSINTX10 industrial bus interface
5-pole connection socket
Cooling unit voltage supply
19-pole mechanised welding interface (analogue)
> see 5.7.2 chapter
8-pole connection socket
Cooling unit control lead
19-pole (analogue) connection socket
Collision protection / sensor voltage control signals
7-pole connection socket (digital)
For connecting digital accessory components
G¼" connection thread, shielding gas connection, outlet
Connection socket for welding current of welding torch
Minus potential
Connection socket, welding current +
Workpiece connection
Cooling air outlet
Intermediate hose package strain relief
Connection thread - G¼"
Shielding gas connection (inlet)
Key button, automatic cutout
Wire feed motor supply voltage fuse
press to reset a triggered fuse
Mains connection cable > see 5.1.7 chapter
Main Switch
Switching the machine on or off.
Key switch to protect against unauthorised use (retrofitting option)
Position 1: changes possible.
Position 0: no changes possible.
> see 5.9 chapter.
Connection socket (9-pole) - D-Sub
PC interface > see 5.8 chapter
Front view
