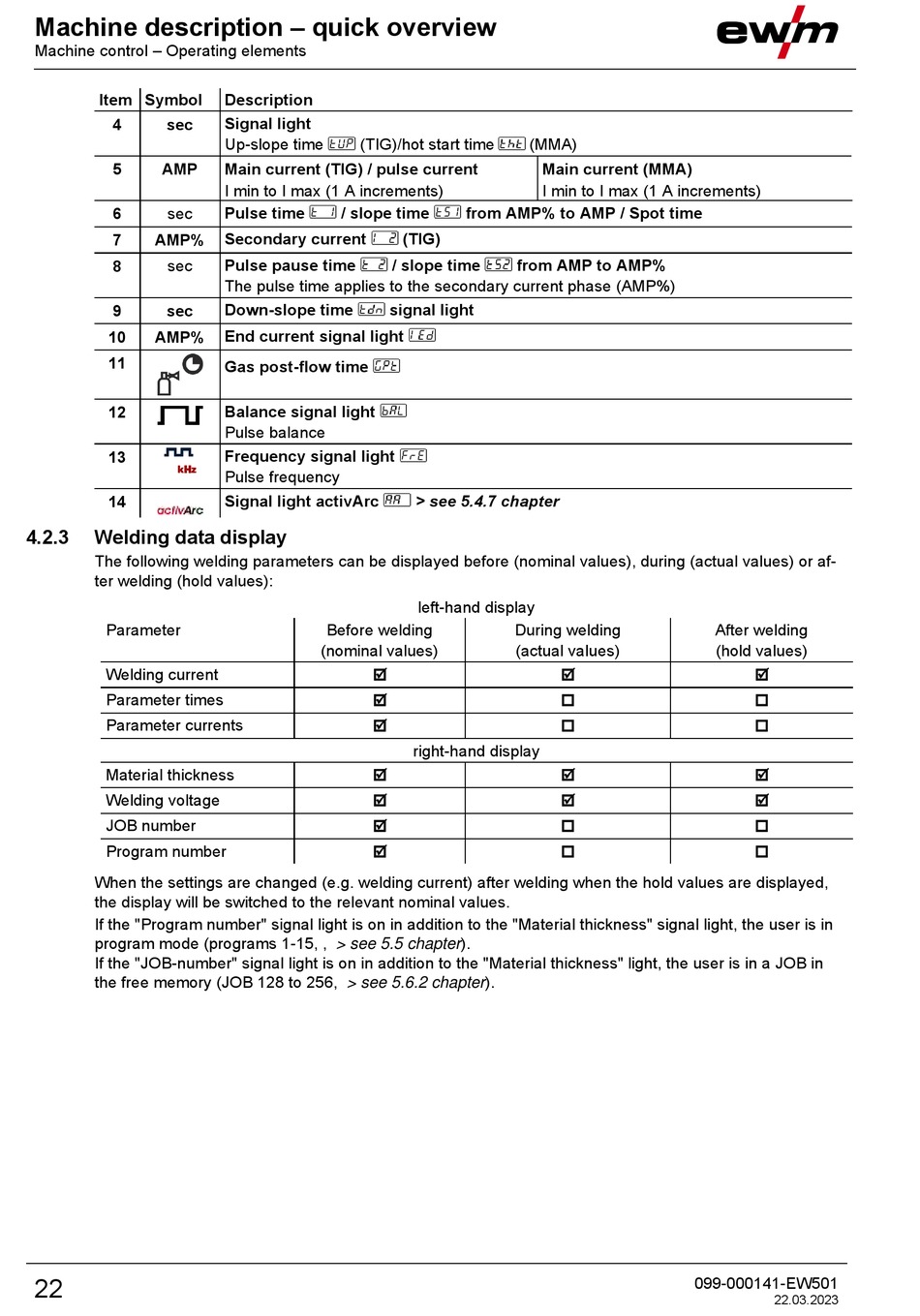

Welding Data Display - EWM Tetrix 352 Synergic Operating Instructions Manual

Machine description – quick overview
Machine control – Operating elements
Item Symbol
4 sec
5 AMP
6 sec
7 AMP%
8 sec
9 sec
10 AMP%
11
12
13
14
4.2.3

Welding data display

The following welding parameters can be displayed before (nominal values), during (actual values) or af-
ter welding (hold values):
Parameter
Welding current
Parameter times
Parameter currents
Material thickness
Welding voltage
JOB number
Program number
When the settings are changed (e.g. welding current) after welding when the hold values are displayed,
the display will be switched to the relevant nominal values.
If the "Program number" signal light is on in addition to the "Material thickness" signal light, the user is in
program mode (programs 1-15, , > see 5.5 chapter).
If the "JOB-number" signal light is on in addition to the "Material thickness" light, the user is in a JOB in
the free memory (JOB 128 to 256, > see 5.6.2 chapter).
22
Description 0
Signal light
Up-slope time (TIG)/hot start time
Main current (TIG) / pulse current
I min to I max (1 A increments)
Pulse time / slope time
Secondary current
Pulse pause time / slope time
The pulse time applies to the secondary current phase (AMP%)
Down-slope time signal light
End current signal light
Gas post-flow time
Balance signal light
Pulse balance
Frequency signal light
Pulse frequency
Signal light activArc
Before welding
(nominal values)







(MMA)
Main current (MMA)
I min to I max (1 A increments)
from AMP% to AMP / Spot time
(TIG)
from AMP to AMP%
> see 5.4.7 chapter
left-hand display
During welding
(actual values)



right-hand display




After welding
(hold values)







