Module Programming; Keys Required - Directed DB3 Installation Manual

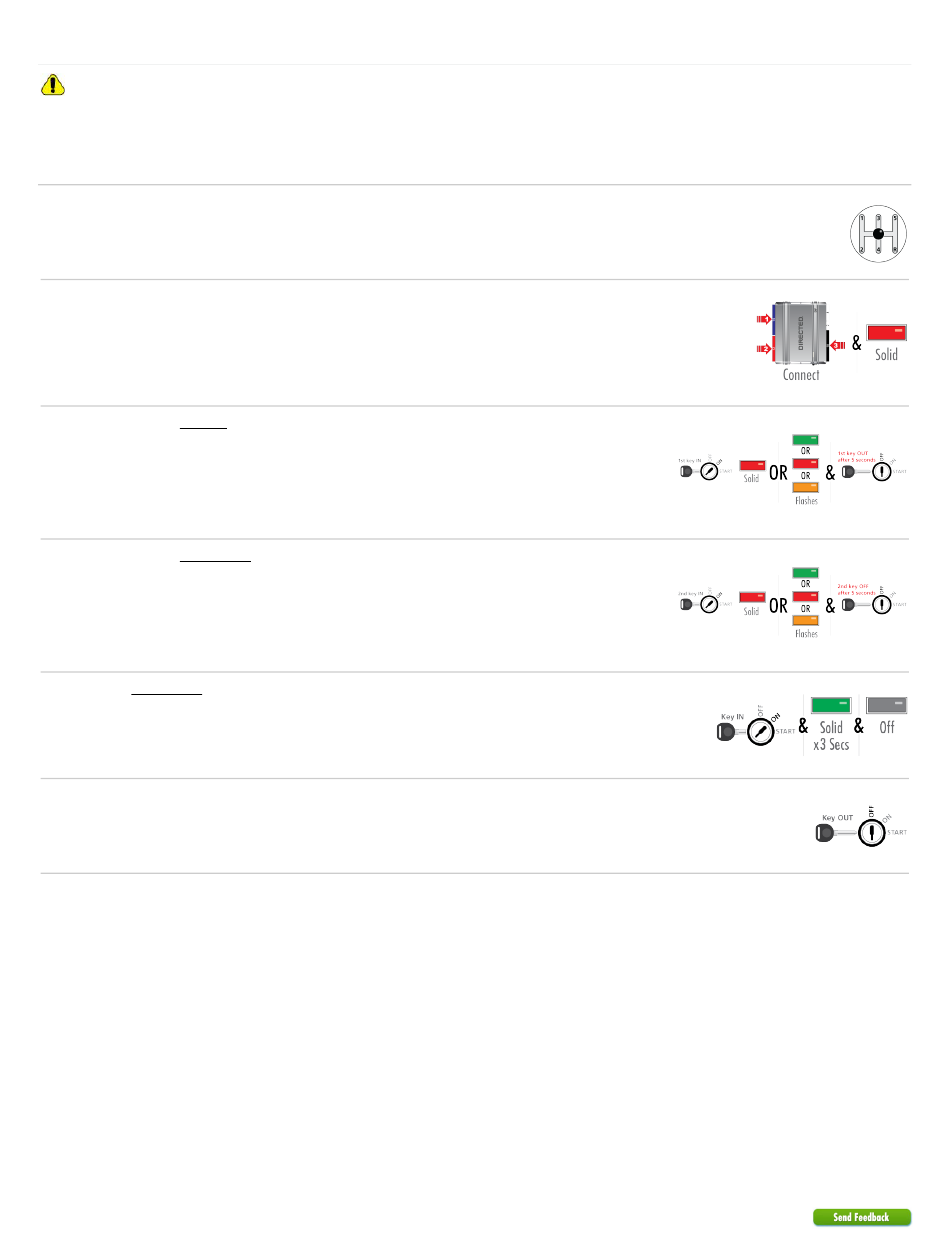

Module programming

Refer to "LED diagnostics and troubleshooting" for more information and for troubleshooting purposes.

2 Keys required!

For Convenience-Only programming, see next section.
Ensure vehicle is in a safe location, and cannot move forward during programming. For vehicles
1
equipped with a manual transmission, make sure the gearshift lever is in the neutral position.
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2
2. Connect the 12-pin.
3. Connect the 10-pin.
When the LED turns on solid red, proceed with the next step.
Insert the first key and turn the key to the ON position.
1.
Wait 5 seconds, then remove the key.
2.
3
The LED may stay solid red, or flash red, green or orange.
Important! Proceed with the next step within 5 seconds.
Insert the second key and turn the key to the ON position.
1.
Wait 5 seconds, then remove the key.
2.
4
The LED may stay solid red, or flash red, green or orange.
Important! Proceed with the next step within 5 seconds.
Turn the second key back to the ON position.
The LED will turn on solid green for 3 seconds, then shut off.
5
Note: If the LED stays on solid red, check your connections and try again.
6
Turn the key off when the module is successfully programmed.
You have successfully completed the module programming sequence.
11
403.FORD4 3.25 2017 Ford Escape
