403.TL10
DB3
v2.32
2015 Toyota RAV4 (H Key)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Directechs DB3 and is the answer not in the manual?

Questions and answers

Related Manuals for Directed Directechs DB3

Summary of Contents for Directed Directechs DB3

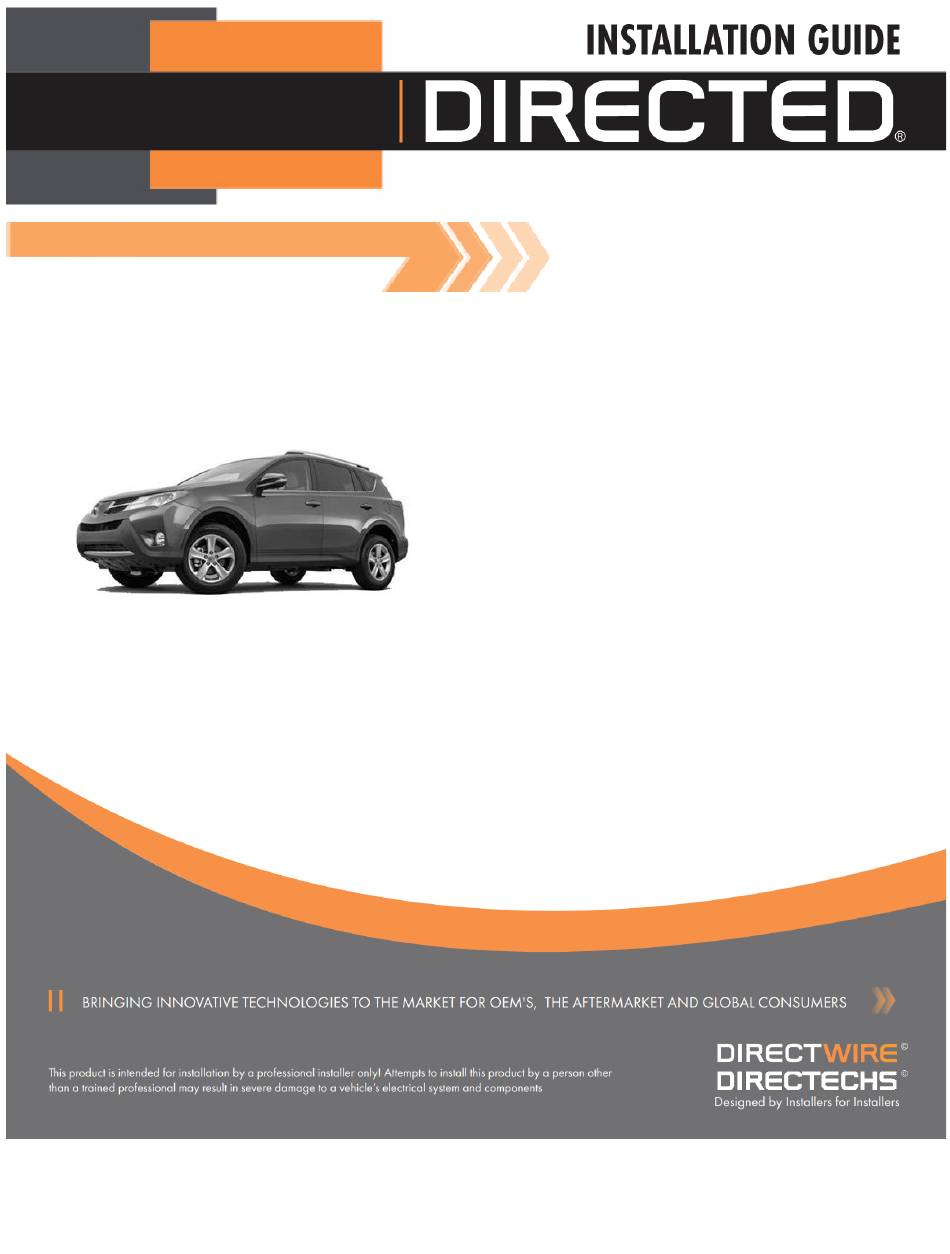

  • Page 1 403.TL10 v2.32 2015 Toyota RAV4 (H Key)

  • Page 2: Table Of Contents

    Contents Introduction Vehicle function compatibilities Pre-installation and application warnings Key type Wiring diagram Locating components in the vehicle Vehicle connections Module programming Note: The master key is REQUIRED to complete the module programming successfully. Module programming for convenience only (skip transponder) Connecting the module LED diagnostics and troubleshooting Soft reset...

  • Page 3: Introduction

    This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs Mobile application for smartphones. Refer to “Connecting the module” for more information. 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 4: Vehicle Function Compatibilities

    Brake Status (foot brake) Driver Priority Unlock Door Locks Status Control of aftermarket alarm with OEM remote E-Brake Status Immobilizer Bypass-Data No Key Req'd Ignition Status Remote Start Takeover SmartStart 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 5: Pre-Installation And Application Warnings

    For vehicles with dot-stamped keys, the TL10 firmware. the TL5 & TL7 firmware. see the TL11 firmware. Note: Some replacement keys may not have any markings on the key. 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 6: Wiring Diagram

    Body ECU Connector (underside conn. of ECU) FUSES (+) Ignition 2: (+) Accessory: Pink, pin 8 Red, pin 7 BODY ECU Ignition Connector RDA: Lt. Blue or Green, pin 16 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 7: Locating Components In The Vehicle

    Locating components in the vehicle 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 8: Vehicle Connections

    Body ECU on back of dash fuse box, white 30 pin plug, pin 16 Data Lt. Blue or Green H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.
  • Page 9 Ignition Switch, white 8 pin plug, pin 8 Pink Starter Ignition Switch, white 8 pin plug, pin 2 White Tachometer [2] OBD-Data Link Connector, white 16 pin plug, pin 9 Gray 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 10: Module Programming

    OFF when programming is done. Turn the key to the OFF position, and remove it from the ignition barrel. You have successfully completed the module programming sequence. 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 11: Module Programming For Convenience Only (Skip Transponder)

    Turn the ignition ON and wait until the LED turns OFF. START Key OUT Turn ignition OFF and remove the key from the ignition barrel. START You have successfully completed the module programming sequence. 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 12: Connecting The Module

    (12-pin) (D2D) (10-pin) (14-pin) W2W installation If required: Connect the 10-pin and 12-pin harnesses to the module, then connect the 14-pin harness to the module. (12-pin) (10-pin) (14-pin) 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 13: Led Diagnostics And Troubleshooting

    External Module Synchronization Description Troubleshooting OBDII feature not supported. The diagnostic data bus was not detected, therefore the SmartStart features will be limited. (Flashes red, red, then orange) x 10 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.
  • Page 14 The smart key was not detected, which prevents the system from shutting down the vehicle. Flashes red x 3 Speed was detected. The vehicle was detected as moving, which prevents the system from shutting it down. Flashes red x 4 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 15: Soft Reset

    Wait 3 seconds until the LED turns ON solid orange, and wait 10 more seconds until the LED starts & to flash orange and red. Solid Flashes Release the programming button. The LED turns ON solid red. & Solid Release 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 16: Feature Programming

    To exit feature programming, press and hold the programming button for 3 seconds or ensure there is no activity on the interface for 30 seconds. The LED will turn ON orange for 2 seconds to confirm the end of the programming sequence. 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 17: Feature And Option List

    If the vehicle is unlocked or is not equipped with factory alarm, the disarm/rearm will not be executed. 1. Trunk Release Trunk Release Trunk Release 2. Motorized Tailgate Trunk Release Option 3. Non Motorized Trunk Release (Unlock All)* 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 18: Limited One Year Consumer Warranty

    This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. VOXX DEI LLC, 2351 J. Lawson Blvd., Orlando, Florida 32824 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.

  • Page 19: Quick Reference Guide

    3 possible ways you can send commands to your vehicle, using the: in Park (P). • Factory remote. • Aftermarket remote. Press the Remote Start button on the transmitter.* • Directed SmartStart application via your smartphone. & Parking lights The parking lights will flash once to indicate the vehicle is Press...
  • Page 20 Notes 403.TL10 2.32 2015 Toyota RAV4 (H Key) ©2023 Directed. All rights reserved.
