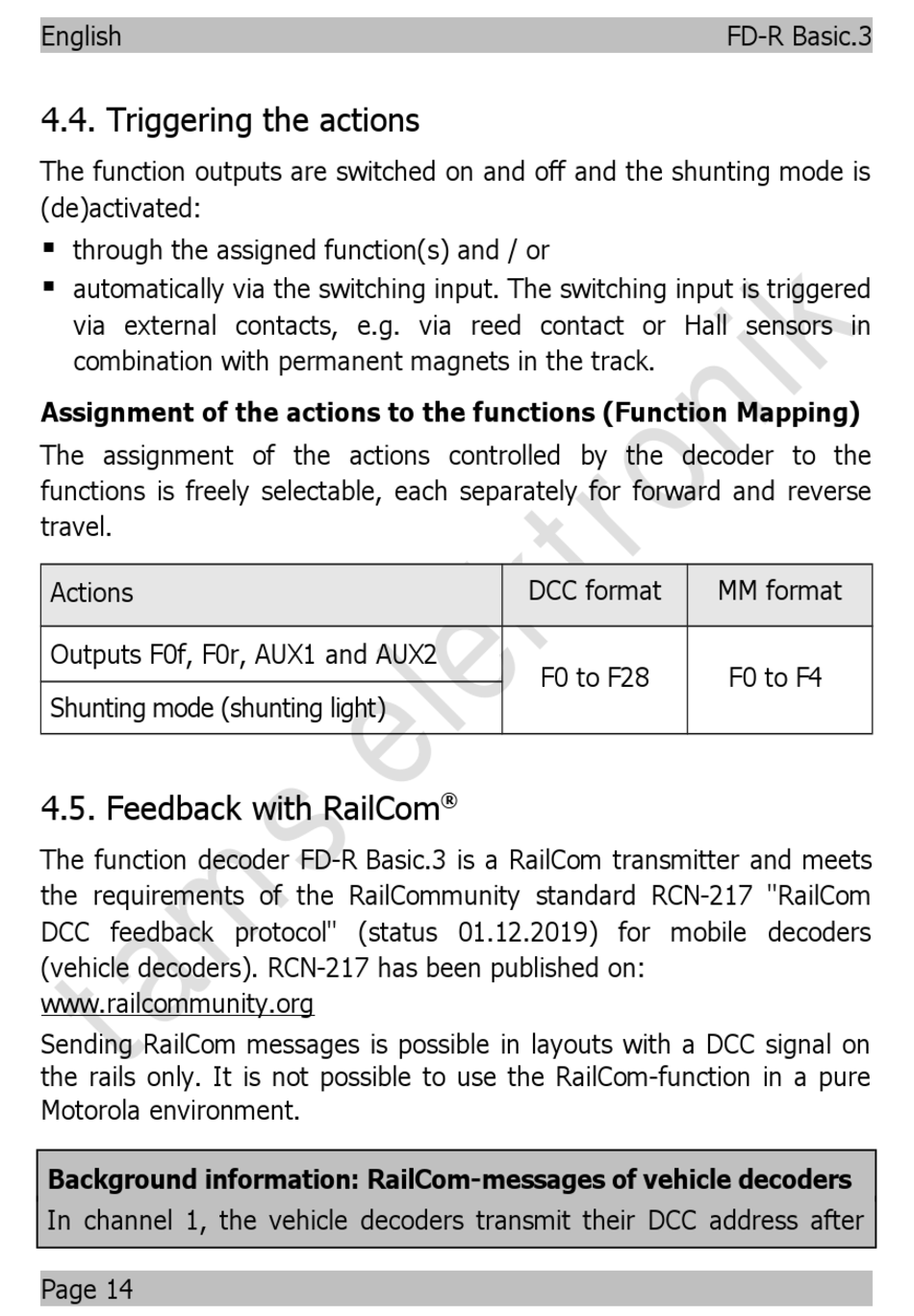

4.4. Triggering the actions

The function outputs are switched on and off and the shunting mode is
(de)activated:
through the assigned function(s) and / or
automatically via the switching input. The switching input is triggered
via external contacts, e.g. via reed contact or Hall sensors in
combination with permanent magnets in the track.
Assignment of the actions to the functions (Function Mapping)
The assignment of the actions controlled by the decoder to the
functions is freely selectable, each separately for forward and reverse
travel.
Actions
Outputs F0f, F0r, AUX1 and AUX2
Shunting mode (shunting light)

4.5. Feedback with RailCom

The function decoder FD-R Basic.3 is a RailCom transmitter and meets
the requirements of the RailCommunity standard RCN-217 "RailCom
DCC feedback protocol" (status 01.12.2019) for mobile decoders
(vehicle decoders). RCN-217 has been published on:
www.railcommunity.org
Sending RailCom messages is possible in layouts with a DCC signal on
the rails only. It is not possible to use the RailCom-function in a pure
Motorola environment.
Background information: RailCom-messages of vehicle decoders
In channel 1, the vehicle decoders transmit their DCC address after
Page 14
DCC format
F0 to F28
®
FD-R Basic.3
MM format
F0 to F4
