tams elektronik LD-G-2 Manual

Locomotive decoder n with load control for dc engines motorola format
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
with Load Control for DC engines
Décodeur avec compensation de charge
pour locomotive avec moteur continu
voor gelijkstroommotoren
LD-G-2

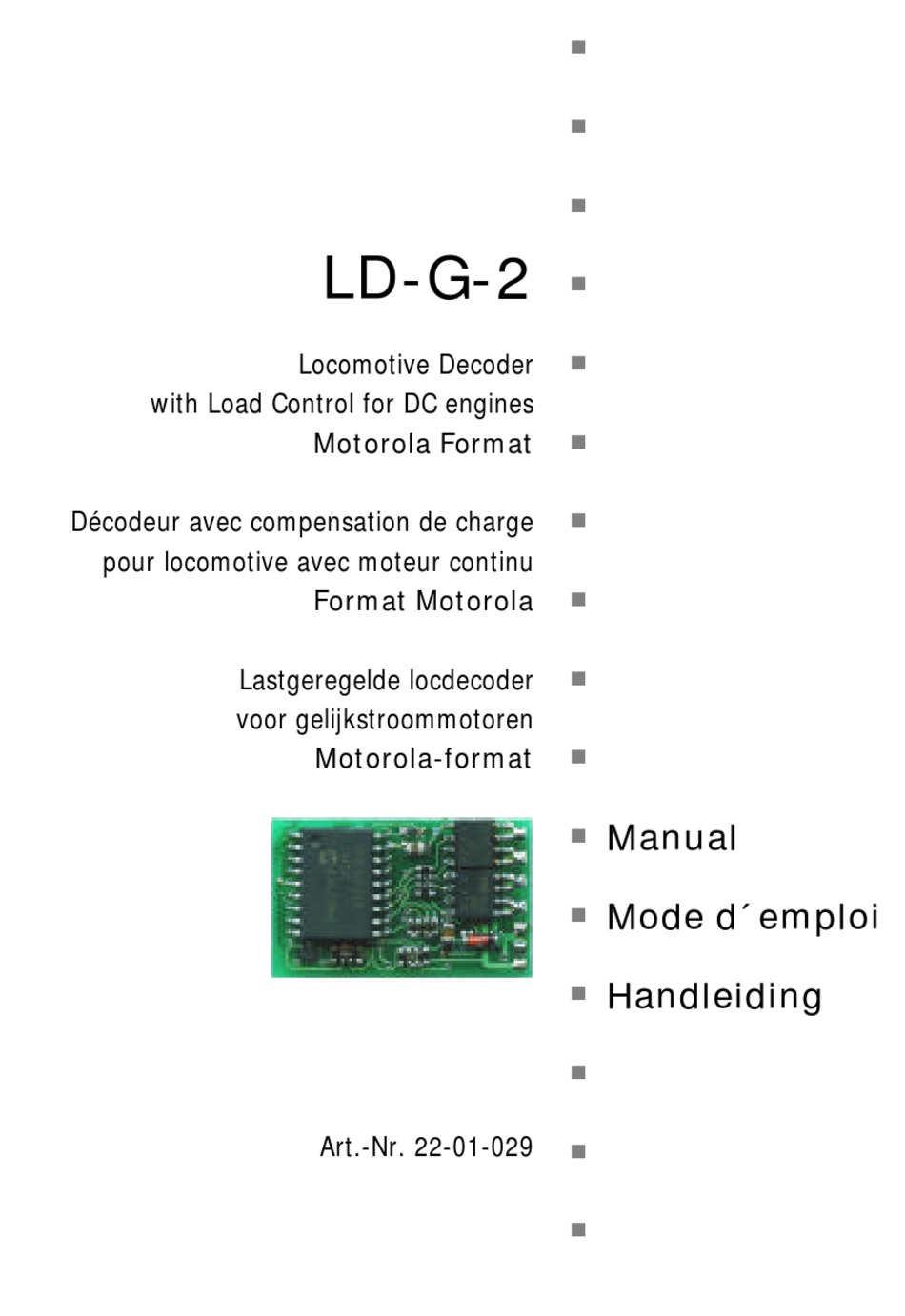

Locomotive Decoder
Motorola Format
Format Motorola
Lastgeregelde locdecoder
Motorola-format
Art.-Nr. 22-01-029
n
n
n
n
n
n
n
n
n
n
Manual
n
Mode d´emploi
n
Handleiding
n
n
n
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LD-G-2 and is the answer not in the manual?

Questions and answers

Related Manuals for tams elektronik LD-G-2

Summary of Contents for tams elektronik LD-G-2

  • Page 1 LD-G-2 Locomotive Decoder with Load Control for DC engines Motorola Format Décodeur avec compensation de charge pour locomotive avec moteur continu Format Motorola Lastgeregelde locdecoder voor gelijkstroommotoren Motorola-format Manual Mode d´emploi Handleiding Art.-Nr. 22-01-029...
  • Page 2 © 06/2005 Tams Elektronik GmbH rights reserved. part this publication reproduced transmitted in any form or by any means, electronic mechanical, including photocopying, without prior permission in English writing from Tams Elektronik GmbH. Subject to technical modification. Français Nederlands © 06/2005 Tams Elektronik GmbH Tout droits réservés, en particulier les droits...

  • Page 3: Table Of Contents

    LD-G-2 English Table of contents How to use this manual Intended use Safety instructions EMC declaration Operation overview Technical specifications Checking the package contents Required tools and consumables Safe and correct soldering Performing a visual check Mounting the locomotive decoder...

  • Page 4: How To Use This Manual

    English LD-G-2 How to use this manual If you have no specialist technical training, this manual gives step-by- step instructions for safe and correct fitting of the module, and operation. Before you start, we advise you to read the whole manual, particularly the chapter on safety instructions and the FAQ chapter.

  • Page 5: Safety Instructions

    LD-G-2 English Safety instructions Mechanical hazards Cut wires can have sharp ends and can cause serious injuries. Watch out for sharp edges when you pick up the PCB. Visibly damaged parts can cause unpredictable danger. Do not use damaged parts: recycle and replace them with new ones.
  • Page 6 English LD-G-2 Fire risk Touching flammable material with a hot soldering iron can cause life- threatening fire, burns and toxic smoke. Connect your soldering iron or soldering station only when actually needed. Use the correct soldering iron or station and never leave a hot soldering iron or station unattended.

  • Page 7: Emc Declaration

    LD-G-2 English EMC declaration This product is developed in accordance with the European standards EN 55014 and EN 50082-1, tested corresponding to the EC - directive 89/336/EWG (EMVG of 09/11/1992, electromagnetic tolerance) and meets legal requirements. To guarantee the electromagnetic tolerance you must take the following precautions: §...
  • Page 8 English LD-G-2 Function speed level and direction of motion Based on 14 speed levels sent by the central unit the decoder can provide up to 27 speed levels. When changing the direction the existing direction is saved and so retained, even if the central unit does not send absolute driving data (e.g.
  • Page 9 LD-G-2 English changes internally the directions of motion „forwards“ and „backwards“. After the negative direct voltage on the track has been compensated the locomotive automatically starts with the set acceleration delay in the opposite direction. During standard operation it is possible to drive the decoder as usual even if the automatic shuttle service is active.
  • Page 10 English LD-G-2 Kick function: It is possible to set the function outputs so that they get the full voltage first for up to seven seconds and then are dimmed. Example of use: For some types of electric couplings you need the full voltage for decoupling and the voltage then reduced to protect the couplings.

  • Page 11: Technical Specifications

    LD-G-2 English Technical specifications Data format Motorola-II Supply voltage 12-24 Volt digital voltage Current consumption (without connected loads) ca. 10 mA Max. current for motor 1.000 mA Max. current per function output 500 mA Max. total current 1.500 mA Protected to...

  • Page 12: Safe And Correct Soldering

    English LD-G-2 Safe and correct soldering Caution: Incorrect soldering can cause fires (through excessive heat). Avoid this danger by reading the chapter Safety instructions again and following the directions given. If you have had training in soldering you can skip this chapter.

  • Page 13: Mounting The Locomotive Decoder

    LD-G-2 English Mounting the locomotive decoder Open the locomotive housing. Locate the position for the decoder. Disconnect the motor from the rail current collector respectively the change-over switch from the motor and rail current collector if you have a locomotive with electronic change-over switch.
  • Page 14 English LD-G-2 In case you want to operate the decoder in analogue mode and want to switch the lighting depending on the direction of travel, you have to connect the front and back lighting to the points X4 and X3 respectively.
  • Page 15 LD-G-2 English Connecting the LEDs The function outputs of the locomotive decoder switch against decoder ground. For that reason you must connect the cathode (-) of the LED to the output of the relevant function. Caution: If you use light-emitting diodes (LEDs) you must always operate them via a series resistor.

  • Page 16: Programming The Locomotive Decoder

    English LD-G-2 Connection Colour of cable Contact Connecting points Motor connection 1 orange Lighting back (-) yellow Not used or F1 green Power supply left black Motor connection 2 grey Lighting front (-) white blue Common conductor for all functions (+)
  • Page 17 LD-G-2 English Accessing the programming mode Put the locomotive on to a track oval and reset the central unit (by simultaneously pushing the buttons “stop” and “go” for some time). Set the function key "function" of the central unit to "off". Enter the address "78"...
  • Page 18 English LD-G-2 Starting the programming mode Switch on the central unit or perform a reset at the central unit. Set address 78. For address 78: Intellibox? Set Motorola I format. Push button „stop“ à Switch off the track voltage. Operate the direction switch and hold it in that position.
  • Page 19 LD-G-2 English Top menu level Top menu level Setting the address and the functions Disconnect the loco. Setting the driving characteristics Disconnect the loco. Querying the decoder address Disconnect the loco. Performing a decoder reset Modifying the parameters of the load control Disconnect the loco.
  • Page 20 English LD-G-2 Setting the locomotive address and the functions 1. Setting the locomotive address You are in the menu point „Setting the locomotive address“ when all lighting connected to the function outputs flash regularly. Enter the desired address. You do not need to enter the old address. Confirm your setting by switching the function key „function”...
  • Page 21 LD-G-2 English Setting the dimming function: The dimming function is set via the speed knob. If lamps are connected speed level 0 stands for minimal voltage at the output to be set and speed level 14 (250 on Märklin* Control Unit 6021) maximal voltage. Confirm your setting by switching the function key „function“...
  • Page 22 English LD-G-2 Assign the function keys: Setting the locomotive Switch on the function keys address and the functions F1, F2, F3 and / or F4. Assign „function“: Enter the desired level 1: backward direction locomotive address. level 2: forward direction level 3: independent function „on/off“...
  • Page 23 LD-G-2 English 1. Setting the driving characteristics - step 1 You get to this menu point automatically from the menu point „Setting the address and the functions“ or by pushing the function key F3 when entering the top menu level.
  • Page 24 English LD-G-2 2. Setting the driving characteristics - step 2 During this programming step the locomotive continuously accelerates and brakes. Advice: The settings you make in the programming step 2 are valid for both velocity characteristics. Setting the automatic shuttle service: Set if the automatic shuttle service is to be active or not in later operation.
  • Page 25 LD-G-2 English Setting the driving characteristics step 1 Operate speed knob. For which Set starting speed. characteristic? F4 „off“ function „on/off“ F4 „on“ Operate speed knob. Operate speed knob. Set maximum speed. function „on/off“ Direction of travel o.k.? Operate direction switch.
  • Page 26 English LD-G-2 Setting the driving characteristics step 2 Operate speed knob. Set brake delay. Shuttle service Level 0: No brake on / off? delay. F3 „on“ Level 14: maximum brake delay. F3 „off“ function „on/off“ F1 „off“ F1 „on“ Operate speed knob.
  • Page 27 LD-G-2 English Querying the decoder address You get to this programming step only by operating the function key F1 on the top menu level after having started the programming mode. The lighting of the locomotive now starts to flash. Two flashing signals interrupted by a short stop transmit the coded address.
  • Page 28 English LD-G-2 KP (function key F1): The proportional component of the load control ensures the difference between the set and the present value being as small as possible. It cannot have the value „0“ at any time. KI (function key F2): The integral component of the load control ensures the remaining difference between the set and the present value being reduced to 0.

  • Page 29: Operation

    LD-G-2 English Operation Speed level regulation Based on the 14 speed levels sent by the central unit the decoder can provide up to 27 speed levels. The 13 additional speed levels are "half" speed levels between the speed levels set at the central unit. They are selected if you switch to a higher speed level followed by a lower grade, or if you reduce the speed level and then switch to a higher grade.

  • Page 30: Faq

    English LD-G-2 Improvement of the driving characteristics Locomotives with especially high current consumption or track sections with bad contacts (e.g. some types of points) may give an unsatisfactory performance. improve locomotive performance by soldering a capacitor 100 µF / 35 V between X10 and X11 (see fig.

  • Page 31: Manufacturer's Note

    LD-G-2 English § The locomotive runs too slowly or too fast. Possible cause: Different locomotives react in different ways to identical programmings. à Adapt the programming to the individual characteristics of the locomotive. § The locomotive does not react to F3 and F4.
  • Page 32 English LD-G-2 § using an unsuitable soldering iron, solder containing liquid acids or similar, § if damage is caused by not following the instructions in this manual or the connection diagram, § if the circuit has been altered and repair attempts have failed, §...
  • Page 33 LD-G-2 Check back of the address Indiquation de l´adresse du décodeur Terugmelding van het decoderadres Flash 1 * Flash 2 * Address Flash 1 * Flash 2 * Address Adresse Adresse Adres Adres Page - Page - Pagina 94...
  • Page 34 LD-G-2 Flash 1 * Flash 2 * Address Flash 1 * Flash 2 * Address Adresse Adresse Adres Adres Page - Page - Pagina 95...
  • Page 35 LD-G-2 Flash 1 * Flash 2 * Address Flash 1 * Flash 2 * Address Adresse Adresse Adres Adres Page - Page - Pagina 96...
  • Page 36 LD-G-2 Flash 1 * Flash 2 * Address Flash 1 * Flash 2 * Address Adresse Adresse Adres Adres * Number of flashing signals / Nombre des clignotements / Aantal knipperingen Flash 1: before the short stop / avant la courte pause / voor de korte pauze Flash 2: after the short stop / après la courte pause / na de korte pauze...
  • Page 37 LD-G-2 LD-G-2 Fig. 1 / Fig. 2: Connction Diagrams - Schémas de connexion - Aansluitplannen Page - Page - Pagina I Page - Page - Pagina I...
  • Page 38 LD-G-2 LD-G-2 Fig. 3: Circuit Diagram - Schéma de principe - Schakelplan Page - Page - Pagina II Page - Page - Pagina II...
  • Page 39 Actuele informatie en tips: http://www.tams-online.de Garantie und Service: Warranty and service: Garantie et service: Garantie en service: Tams Elektronik GmbH Rupsteinstraße 10 D-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
