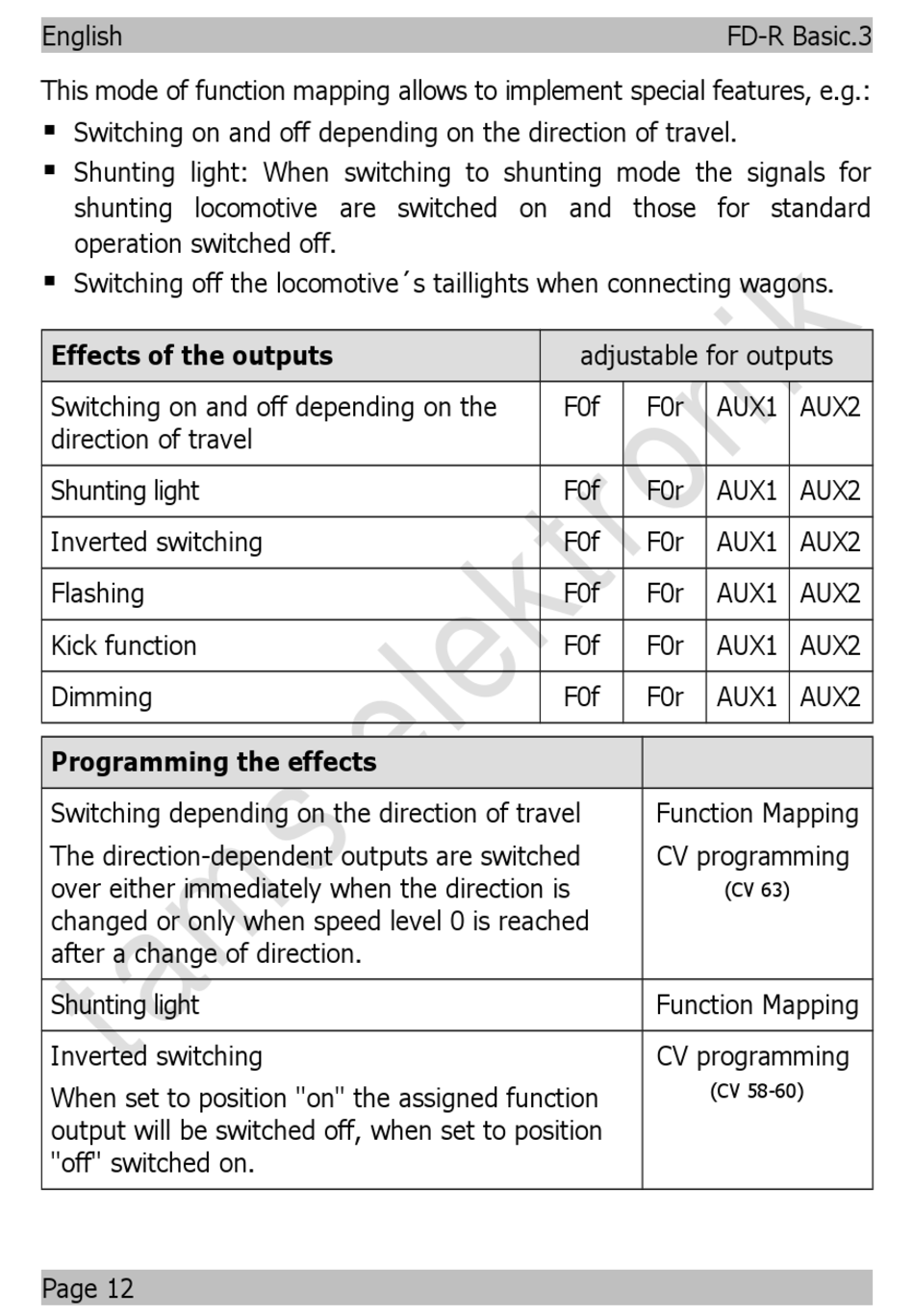

tams elektronik FD-R Basic.3 Manual page 12

English
This mode of function mapping allows to implement special features, e.g.:

Switching on and off depending on the direction of travel.

Shunting light: When switching to shunting mode the signals for
shunting locomotive are switched on and those for standard
operation switched off.

Switching off the locomotive´s taillights when connecting wagons.
Effects of the outputs
Switching on and off depending on the
direction of travel
Shunting light
Inverted switching
Flashing
Kick function
Dimming
Programming the effects
Switching depending on the direction of travel
The direction-dependent outputs are switched
over either immediately when the direction is
changed or only when speed level 0 is reached
after a change of direction.
Shunting light
Inverted switching
When set to position "on" the assigned function
output will be switched off, when set to position
"off" switched on.
Page 12
FD-R Basic.3
adjustable for outputs
F0f F0r AUX1 AUX2
F0f F0r AUX1 AUX2
F0f F0r AUX1 AUX2
F0f F0r AUX1 AUX2
F0f F0r AUX1 AUX2
F0f F0r AUX1 AUX2
Function Mapping
CV programming
(CV 63)
Function Mapping
CV programming
(CV 58-60)
