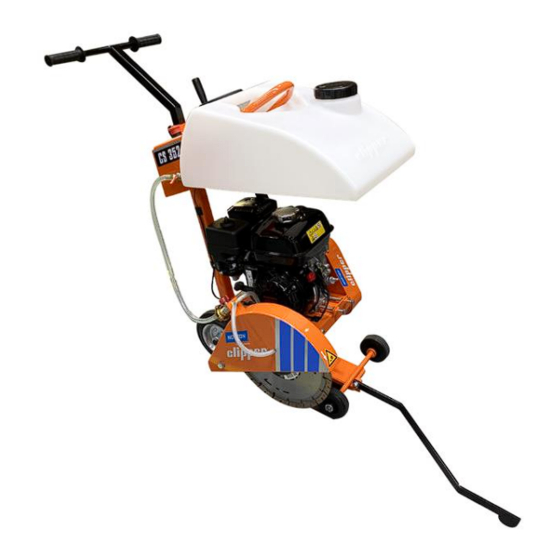

Norton clipper CS 352 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Norton Manuals
  4. Saw
  5. clipper CS 352
  6. Operating instructions manual

Norton clipper CS 352 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS 352
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading

Related Manuals for Norton clipper CS 352

Summary of Contents for Norton clipper CS 352

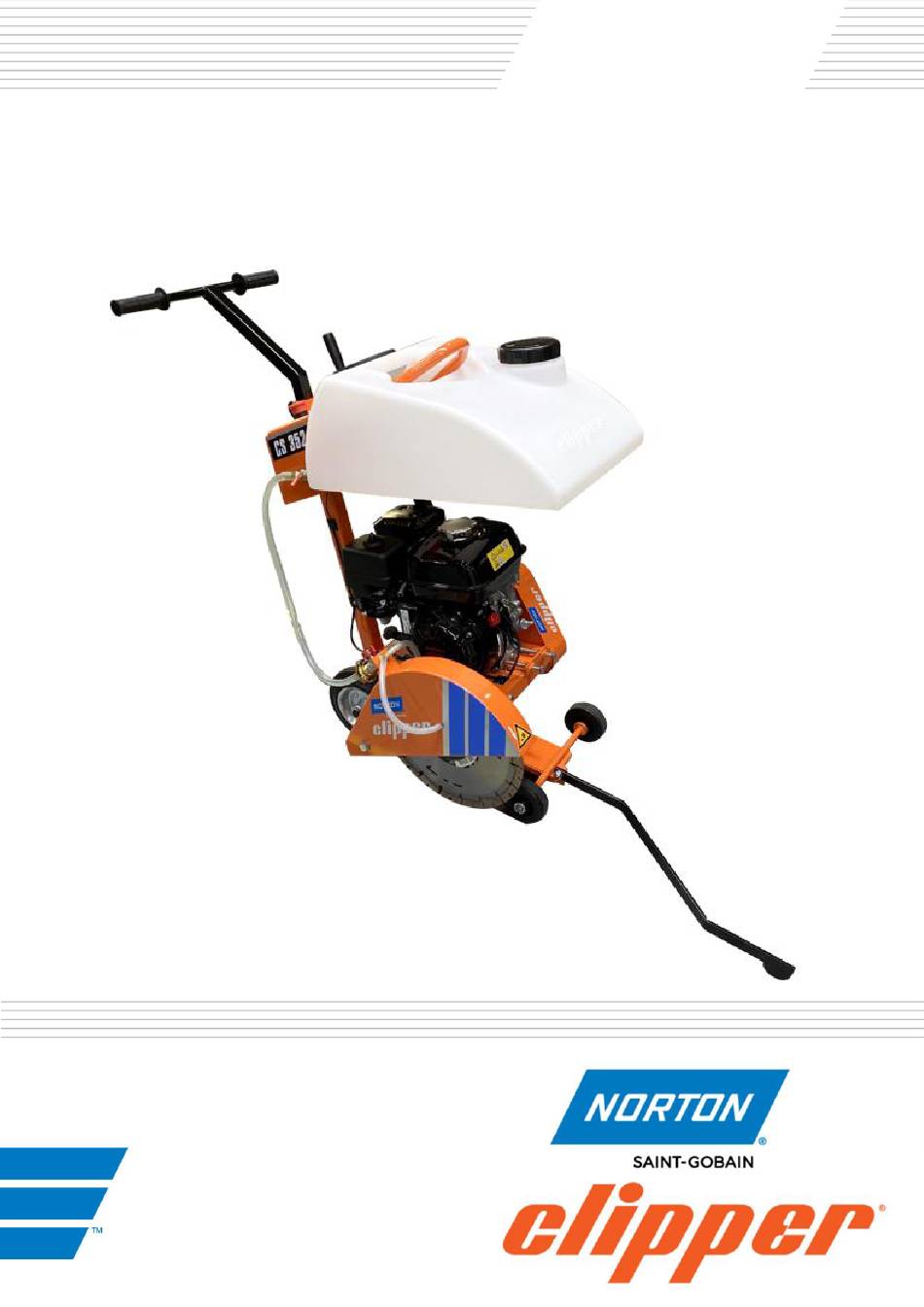

  • Page 1 CS 352 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2022.10.20 CS352_MAN_EN...
  • Page 3 VERS.2022.10.20 CS352_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CS 352 P6.5 70184632007 « Floor saw »: Code : is in conformity with the following Standards: ...
  • Page 4 VERS.2022.10.20 CS352_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CS 352 P6.5 70184632007 « Floor saw »: Code : is in conformity with the following standard: ...

  • Page 5: Table Of Contents

    VERS.2022.10.20 CS352_MAN_EN CS 352 OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS 352 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING 3.1 Assembly...

  • Page 6: Basic Safety Instructions

    VERS.2022.10.20 CS352_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS 352 is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

    VERS.2022.10.20 CS352_MAN_EN Rotation of the wheel in the indicated Rotation of the wheel in the indicated direction lowers the blade direction raises the blade Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine: Year of...

  • Page 8: Safety Instructions For Particular Operating Phases

    Immediately remove damaged or badly worn blades, as they endanger the operator whilst rotating.  Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine!  Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.

  • Page 9: General Description Of The Cs 352

    VERS.2022.10.20 CS352_MAN_EN 2 GENERAL DESCRIPTION OF THE CS 352 Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations.

  • Page 10: Layout

    VERS.2022.10.20 CS352_MAN_EN 2.2 Layout Made of jig welded open profile steel, the CS 352 is stable but at the same time, easily transportable. The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened by rotation to change blades. A manually operated hand wheel mechanism (2) enables graduated depth setting.
  • Page 11 VERS.2022.10.20 CS352_MAN_EN The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block bearings, including grease nipples. The steel belt guard (5) is a sealed two pieces unit. The backing plate is bolted to the mainframe of the machine and two locking nuts are welded to it. The outer guard, covering the three drive belts and taper lock pulleys, is held in place by two locking bolts.

  • Page 12: Technical Data

    VERS.2022.10.20 CS352_MAN_EN 2.3 Technical data Engine Honda GX200, 4 strokes, 1 cylinder, 6,5HP (4,8kW) Filter Cyclone Filter Fuel Regular unleaded Honda 4-Stroke, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. automobile manufacturer’s requirement for service classification SG, SF. (SG, SF designated on the oil container).

  • Page 13: Statement Regarding The Vibration Emission

    VERS.2022.10.20 CS352_MAN_EN Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code CS 352 P6.5 HONDA 5,56 1,04 Pro béton 70184632007 ...

  • Page 14: Statement Regarding Noise Emission

    VERS.2022.10.20 CS352_MAN_EN Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744)

  • Page 15: Assembly And Commissioning

    Secure the operator’s handle in a comfortable user position by using the locking nut. 3.2 Tool assembly Only use NORTON blades with the CS 352. A blade with a maximum diameter of 350 mm can be fitted in the CS 352.

  • Page 16: Starting The Machine

    VERS.2022.10.20 CS352_MAN_EN 3.4 Starting the machine Make sure the blade is raised clear up the ground before starting the machine. Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. NOTE: do not use the choke if the engine is warm or the air temperature is high.

  • Page 17: Operating The Cs 352

    VERS.2022.10.20 CS352_MAN_EN 4 OPERATING THE CS 352 4.1 Site of work Before you start working, please check the following points:  Remove from the site anything, which might hinder the working procedure.  Make sure the site is sufficiently well lit. ...

  • Page 18: Transport And Storing

    VERS.2022.10.20 CS352_MAN_EN 5 TRANSPORT AND STORING Take the following measures in order to transport and store the CS 352 securely. 5.1 Securing for transport Before transporting the machine:  Remove the blade.  Empty the water tank.  Lower the handle in its fixing tube and secure it using the locking nut. ...

  • Page 19: Maintenance And Service

    VERS.2022.10.20 CS352_MAN_EN 6 MAINTENANCE AND SERVICE ATTENTION: to perform maintenance on the machine, always switch it off. Always wear a face mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS 352, please follow the maintenance plan below: Regular service period Perform...

  • Page 20: Maintenance Of The Engine

    VERS.2022.10.20 CS352_MAN_EN 6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first  Check level Engine oil Change Check Air cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary) Every 2 years...
  • Page 21 VERS.2022.10.20 CS352_MAN_EN Air cleaner The CS 352 has a Cyclone filter. To service the air cleaner filter, follow these instructions:  Remove the nut, air cleaner cover and wing nut.  Remove the pre air cleaner elements and separate them. ...
  • Page 22 VERS.2022.10.20 CS352_MAN_EN Spark plug To service the spark plug, follow these instructions:  Visually inspect the spark plug. Discard the plug if the insulator is cracked or chipped.  Remove carbon or other deposits with a stiff wire brush.  Measure the plug gap with a wire-type feeler gauge.

  • Page 23: Faults: Causes And Cures

    VERS.2022.10.20 CS352_MAN_EN 7 FAULTS: CAUSES AND CURES 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the one described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source Resolution...

  • Page 24: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel.: 00352-50 401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...

  • Page 25: Spare Parts

    VERS.2022.10.20 CS352_MAN_EN 7.4 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 26 VERS.2022.10.20 CS352_MAN_EN...
  • Page 27 VERS.2022.10.20 CS352_MAN_EN...
  • Page 28 VERS.2022.10.20 CS352_MAN_EN...
