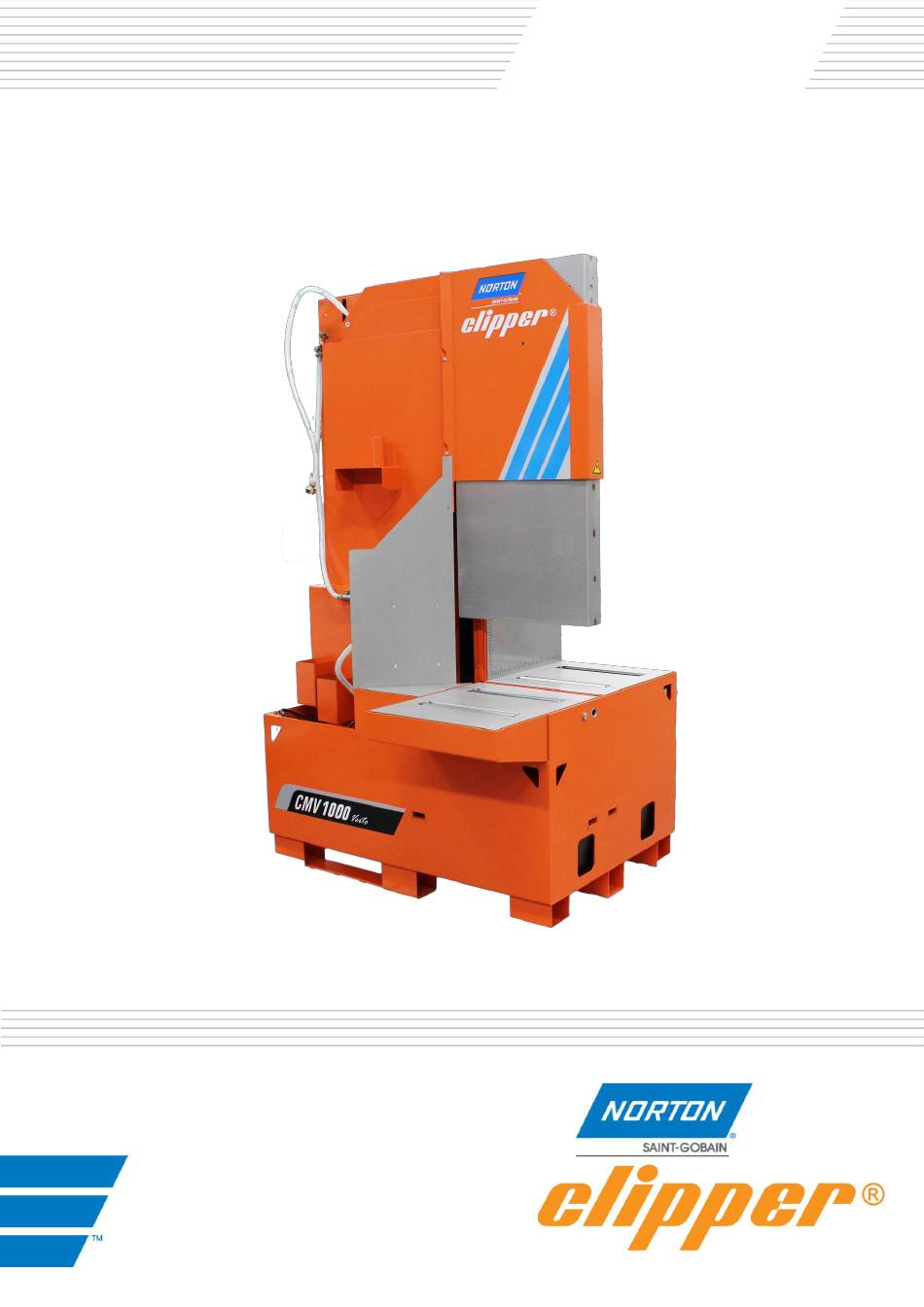

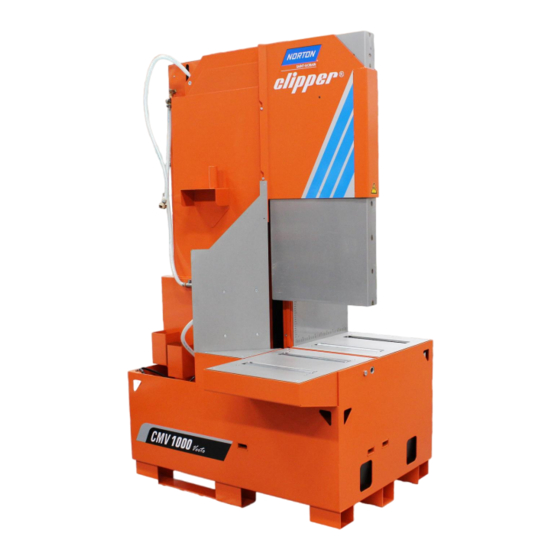

  • Page 1 CMV 1000 Verto OPERATING INSTRUCTIONS Translation of the original Instructions...
  • Page 2 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN...
  • Page 3 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CMV 1000 Verto 400V 70184603244 Masonry saw: Code: 70184603243 70184607717 Is in conformity with the following Directives: ...
  • Page 4 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN...

  • Page 5: Table Of Contents

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN CMV 1000 Verto OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS ....................7 1.1 Symbols ..........................7 1.2 Machine plate .......................... 9 1.3 Safety instructions for particular operating phases ............9 2 MACHINE DESCRIPTION ......................10 2.1 Short description ........................
  • Page 6 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN...

  • Page 7: Basic Safety Instructions

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN BASIC SAFETY INSTRUCTIONS The CMV 1000 Verto is exclusively designed for the cutting of construction products mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. Any risk shall be borne entirely by the user.
  • Page 8 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN...

  • Page 9: Machine Plate

     Always cut with the blade guard in position.  Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine!  Read the blades’ specifications carefully to choose the correct tool for your application.

  • Page 10: Machine Description

    As with all other NORTON products, the operator will immediately appreciate the attention given to detail and quality of materials used in construction. The machine and its component parts are assembled to high standards assuring long life and minimum maintenance.
  • Page 11 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN *11 and 12 In option Electrical Motor and switch (6) Motor with 7,5kW: Low voltage trigger (NVR) prevents the motor to restart for example after a power cut. The electric motor has overload protection. Thermal overload tripping can occur for two reasons: a.
  • Page 12 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Cutting head Jig-welded steel console housed in a heavy-duty bearing. Console supports the electric motor, the chain drive with its guard and the blade shaft assembly. Precision-machined blade shaft held in ball bearings and is driven by a chain. The blade shaft assembly is completely enclosed in a cutting head console, accessible for inspection by opening the blade guard.
  • Page 13 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN *21 and 22 in option...

  • Page 14: Technical Data

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Technical data CMV 1000 Verto Electric motor 7,5kW / 14.5A / 50Hz / 2900 1/min. / IE3 Voltage 400V / 3-Phase / CEE 32 Electric motor protection IP55 Star-triangle switch with thermal overload protection, no volt Switch release and emergency stop Max.

  • Page 15: Statement Regarding The Vibration Emission

    Model / code CMV 1000 Verto Full Version 400V 70184603244 CMV 1000 Verto Basic Version 400V <2.5 Norton universal laser 70184603243 CMV 1000 Verto Hydraulic table 400V 70184607717  The vibration value is lower and does not exceed 2.5 m/s². ...

  • Page 16: Statement Regarding Noise Emission

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744...

  • Page 17: Assembly And Commissioning

    Tool assembly Only NORTON blades with a maximum diameter of 1000mm can be used with the CMV 1000 Verto. All tools must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed.

  • Page 18: Electrical Connections

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN To mount a saw blade, follow these steps:  Lift up the saw blade respectively the blade guard by the hand wheel in the middle position and secure it by using of the lock pin ...

  • Page 19: Water Cooling System

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Emergency Stop The main ON-OFF switch can be used as an emergency stop switch! Water cooling system  Fill the water tray with clean water through the intake opening (I.) up to approximately 2cm from top (ensure that bottom of pump is fully immersed in water that the pump not run dry and burn) ...
  • Page 20 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Dry Cutting ( only in exceptionally cases ! )  Make sure that you wear an additional dust mask and use dust vacuum collecting or cleaning equipment during dry cutting  Pull out the water pump basket from the water tray and lock the water pump basket (I.) ...

  • Page 21: Transport And Storing

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN TRANSPORT AND STORING Take the following measures in order to transport the CMV 1000 Verto securely. Securing for transport  As first empty the water tray  Lift down the cutting head in its position that it is below the machine cover ...

  • Page 22: Transportation Procedure

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Transportation procedure  Only use the crane hook (1) to lift the machine, as other parts of the machine are not designed for this purpose.  If you want to transport the machine using a fork-lift truck, use the bracket (2) for one of the fork, the other one supporting under the frame ...

  • Page 23: Wheel Kit (Option)

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Wheel kit (option)  The machine can be moved on a flat surface using its original wheel kit  Insert the two back wheels on the back side of the machine into the outer European pallet feeds and the front joke wheel at the front side of the machine in the middle pallet feed ...

  • Page 24: Cutting Methods

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN 5.1.1 Siting the machine  Remove from the site anything, which might hinder the working procedure!  Site the machine on an even, firm and stable base!  Make sure the site is sufficiently well lit! ...
  • Page 25 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN 5.2.2 The cut To use the machine correctly, you must be on the side of the machine with one hand on the handwheel, and the other ready to stop the machine in case of emergency. Always keep your hands away from the moving blade.

  • Page 26: Maintenance And Servicing

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the CMV 1000 Verto, please follow the maintenance plan below: Whole machine Visual control (general aspect) Clean Saw blade shaft and flange Clean Water tray Clean Water pump...

  • Page 27: Faults : Causes And Cures

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN FAULTS : CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 28: Circuit Diagram 400V

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Circuit Diagram 400V...

  • Page 29: Roller Table (Option)

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Roller table (option) If, you have ordered later a complete roller table kit for your CMV 1000 Verto you may assembly it as following: Step 1.: Remove first the black cover caps, insert the hydraulic hose through the bigger hole and assembling the manual hydraulic pump with the included screws Step 2.: Release the table screws, pull out the table plate and remove the last black cover cap...
  • Page 30 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Step 3.: Insert the hydraulic hose next tot he chain hoist through the bigger hole into the water collecting housing. Insert the additional hydraulic hose with the side of 700mm through the hole to the water collecting housing of the swivel table.
  • Page 31 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Step 4.: Release the transport secure screws at the roller tables and assemble them at the table plates from the bellow side. Caution: The quick fix coupling at the hydraulic cylinders have to be placed in the direction of the front side of the machine (see at picture step 5.) Step 5.: Place the table plates again and connect the hydraulic hoses with the hydraulic cylinders (quick fix couplings).
  • Page 32 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Step 6.: Finish the assembling of the roller table kit with tightening of the table screws. Now, you may continue with the placement of the bloc according to the point 5.2.1 Preparing the cut with roller table. Caution: The manual hydraulic pump has an integrated pressure limiter what means you may use the manual hydraulic pump as long as the rollers reach the final position …...

  • Page 33: Costumer Service

    In the case of a warranty claim, the part must always be returned for evaluation. This machine has been manufactured by: Saint-Gobain Abrasives S.A.: 190, Bd. J. F. Kennedy L-4930 BASCHARAGE Grand-duché de Luxembourg Tel. : 00352 50 401 1 Fax. : 00331 83717792 http://www.construction.norton.eu e-mail : sales.nlx@saint-gobain.com...

  • Page 34: 7.6 Spare Parts

    VERS. 21.01.2019 CMV 1000 Verto_MAN_EN 7.6 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 35 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
  • Page 36 VERS. 21.01.2019 CMV 1000 Verto_MAN_EN...

This manual is also suitable for:

701846032447018460324370184607717

Table of Contents
