CS 502LV P13
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the clipper CS 502LV P13 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Norton clipper CS 502LV P13

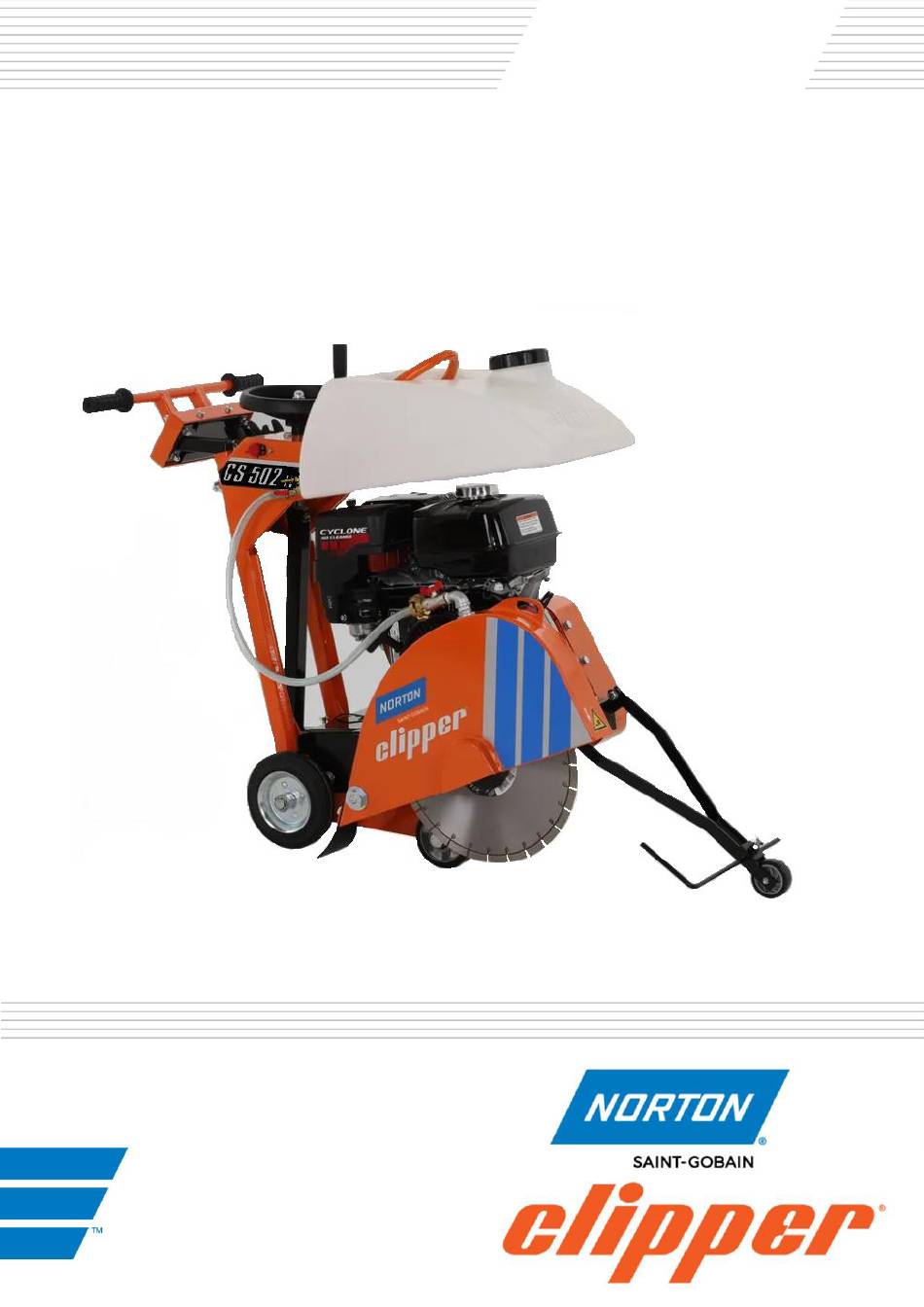

  • Page 1 CS 502LV P13 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2022.09.11 CS 502LV P13_MAN_EN...
  • Page 3: Cs 502Lv P13

    VERS.2022.09.11 CS 502LV P13_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CS 502LV P13 70184631994 « Floor saw »: Code : is in conformity with the following Directives : ...
  • Page 4 VERS.2022.09.11 CS 502LV P13_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: Floor Saw: CS 502LV P13 Code: 70184631994 is in conformity with the following standard: ...
  • Page 5: Table Of Contents

    VERS.2022.09.11 CS 502LV P13_MAN_EN CS 502LV P13 OPERATING INSTRUCTIONS AND SPARE PARTS LIST 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS 502LV 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission...
  • Page 6: Basic Safety Instructions

    VERS.2022.09.11 CS 502LV P13_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS 502LV is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage.
  • Page 7: Machine Plate

    VERS.2022.09.11 CS 502LV P13_MAN_EN Rotation of the wheel in the indicated Rotation of the wheel in the indicated direction lowers the blade direction raises the blade Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine:...
  • Page 8: Safety Instructions For Particular Operating Phases

    Always cut with the blade guard in position.  Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine!  Read the blades’ specifications carefully to choose the correct tool for your application.
  • Page 9: General Description Of The Cs 502Lv

    VERS.2022.09.11 CS 502LV P13_MAN_EN 2 GENERAL DESCRIPTION OF THE CS 502LV Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations.
  • Page 10: Layout

    VERS.2022.09.11 CS 502LV P13_MAN_EN 2.2 Layout Made of jig welded open profile steel, the CS 502LV is stable but at the same time, easily transportable. The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened by rotation to change blades.
  • Page 11 VERS.2022.09.11 CS 502LV P13_MAN_EN The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block bearings, including grease nipples. On one end is a Poly-V pulley with taper lock and on the other end the shaft is reduced to 25,4mm, allowing an inner flange to be fixed. Outer flange is assembled on the shaft with a 36mm locking nut.
  • Page 12: Technical Data

    VERS.2022.09.11 CS 502LV P13_MAN_EN 2.3 Technical data Engine Honda GX390, 4 stroke, 1 cylinder, 13HP (9,6kW) Fuel Automotive unleaded gasoline with a pump octane rating of 86 or higher (research octane rating of 91 or higher) Honda 4-Stroke, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S.
  • Page 13: Statement Regarding The Vibration Emission

    VERS.2022.09.11 CS 502LV P13_MAN_EN 2.4 Statement regarding the vibration emission Declared vibration emission value in accordance with EN 12096 Machine Measured vibration Uncertainty K Tool used Model / code emission value a Model / code CS 502LV P13 Duo Extreme Ø350x25.4 70184631994 ...
  • Page 14: Statement Regarding Noise Emission

    VERS.2022.09.11 CS 502LV P13_MAN_EN 2.5 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744...
  • Page 15: Assembly And Commissioning

    Secure the operator’s handle in a comfortable user position by using the locking screws. 3.2 Tool assembly Only NORTON blades with a maximum diameter of 500 mm can be fitted on the CS 502LV. A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation...
  • Page 16: Starting The Machine

    VERS.2022.09.11 CS 502LV P13_MAN_EN 3.4 Starting the machine Make sure the blade is raised clear up the ground before starting the machine. Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. NOTE: do not use the choke if the engine is warm or the air temperature is high.
  • Page 17: Operating The Cs 502Lv

    VERS.2022.09.11 CS 502LV P13_MAN_EN 4 OPERATING THE CS 502LV 4.1 Site of work Before you start working, please check the following points:  Remove from the site anything, which might hinder the working procedure.  Make sure the site is sufficiently well lit. ...
  • Page 18 VERS.2022.09.11 CS 502LV P13_MAN_EN 4.2.2 Cutting the floor You can now start the engine. To make your cut,  Turn on the water tap according to the type of blade used and the cut required: o Water cutting: a sufficient amount of water should be used continuously throughout the cutting process to cool the disc properly.
  • Page 19: Transport And Storing

    VERS.2022.09.11 CS 502LV P13_MAN_EN 5 TRANSPORT AND STORING Take the following measures in order to transport and store the CS 502LV securely. 5.1 Securing for transport Before transporting the machine:  Remove the blade.  Empty the water tank.  Lower the handle in its fixing tube and secure it using the locking screws.
  • Page 20: Maintenance And Service

    VERS.2022.09.11 CS 502LV P13_MAN_EN 6 MAINTENANCE AND SERVICE CAUTION: to perform maintenance of the machine, always switch it off. Always wear a mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS 502LV, please follow the maintenance plan below: Regular service period Perform...
  • Page 21: Maintenance Of The Engine

    VERS.2022.09.11 CS 502LV P13_MAN_EN 6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first  Check level Engine oil Change Check Air Cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary)
  • Page 22 VERS.2022.09.11 CS 502LV P13_MAN_EN  Remove the pre air cleaner elements and separate them.  Carefully check both elements for holes or tears and replace if damaged.  Paper element: tap element lightly several times on a hard surface to remove excess dirt...
  • Page 23 VERS.2022.09.11 CS 502LV P13_MAN_EN Spark plug To service the spark plug, follow these instructions:  Visually inspect spark plug. Discard the plug if the insulator is cracked or chipped.  Remove carbon or other deposits with a stiff wire brush. ...
  • Page 24: Breakdowns: Causes And Cures

    VERS.2022.09.11 CS 502LV P13_MAN_EN 7 BREAKDOWNS: CAUSES AND CURES 7.1 Breakdown-finding procedures Should any breakdown occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the ones described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source...
  • Page 25: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel.: 00352-50 401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...
  • Page 26: Spare Parts

    VERS.2022.09.11 CS 502LV P13_MAN_EN 7.4 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 27 VERS.2022.09.11 CS 502LV P13_MAN_EN...
  • Page 28 VERS.2022.09.11 CS 502LV P13_MAN_EN...
