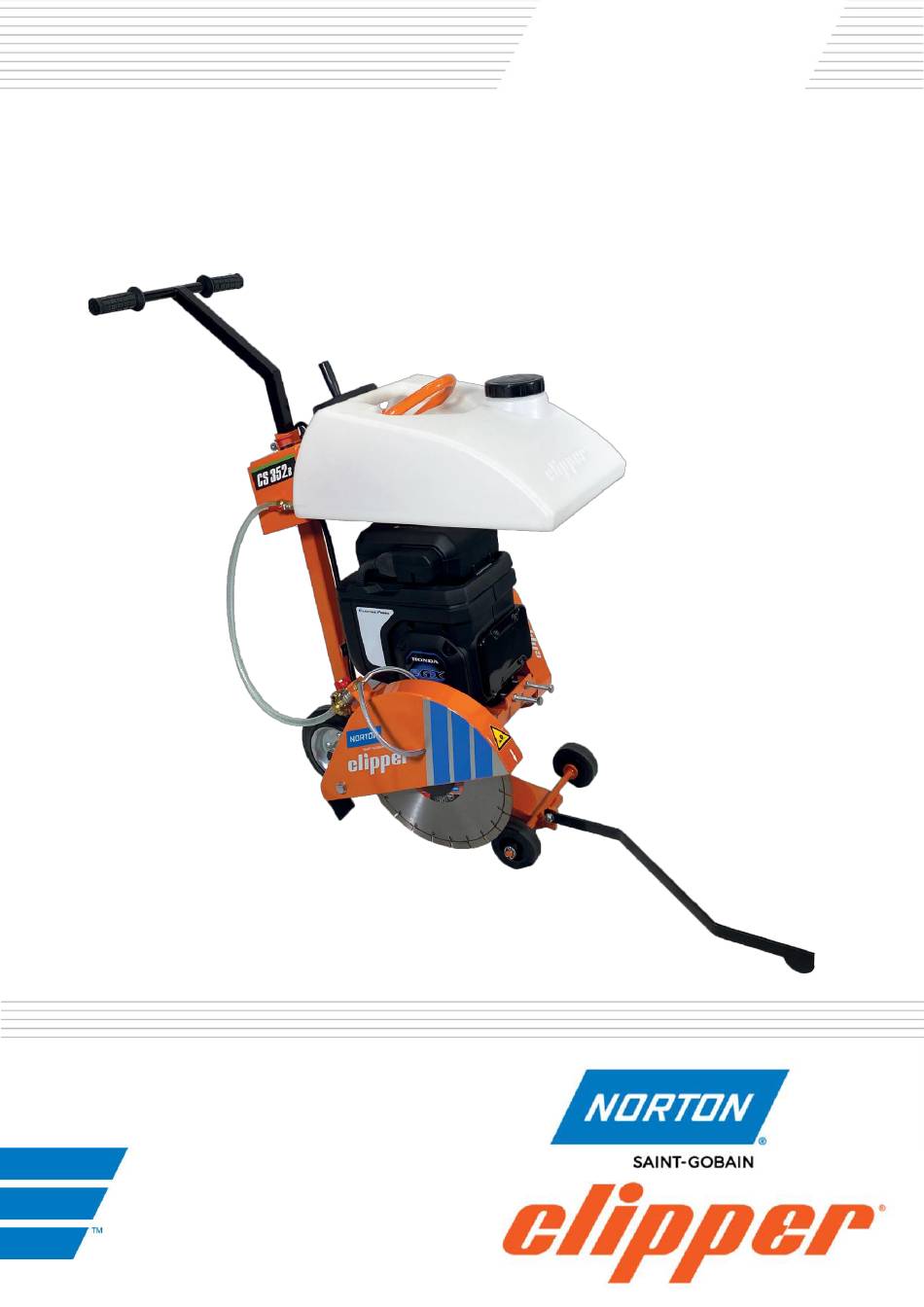

CS 352 B
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the clipper CS 352 B and is the answer not in the manual?

Questions and answers

Related Manuals for Norton clipper CS 352 B

Summary of Contents for Norton clipper CS 352 B

  • Page 1 CS 352 B OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2023.03.15 CS 352 B_MAN_EN...
  • Page 3 VERS.2023.03.15 CS 352 B_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CS 352 B 70184632546 « Floor saw »: Code : is in conformity with the following Standards: •...
  • Page 4 VERS.2023.03.15 CS 352 B_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CS 352 B 70184632546 « Floor saw »: Code : is in conformity with the following standard: •...

  • Page 5: Table Of Contents

    VERS.2023.03.15 CS 352 B_MAN_EN CS 352 B OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS 352 B 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING...

  • Page 6: Basic Safety Instructions

    VERS.2023.03.15 CS 352 B_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS 352 B is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

    VERS.2023.03.15 CS 352 B_MAN_EN Rotation of the wheel in the indicated Rotation of the wheel in the indicated direction lowers the blade direction raises the blade Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine:...

  • Page 8: Safety Instructions For Particular Operating Phases

    Immediately remove damaged or badly worn blades, as they endanger the operator whilst rotating. • Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine! • Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.

  • Page 9: General Description Of The Cs 352 B

    VERS.2023.03.15 CS 352 B_MAN_EN 2 GENERAL DESCRIPTION OF THE CS 352 B Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations.
  • Page 10 VERS.2023.03.15 CS 352 B_MAN_EN Made of jig welded open profile steel, the CS 352 is stable but at the same time, easily transportable. The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened by rotation to change blades. A manually operated hand wheel mechanism (2) enables graduated depth setting.
  • Page 11 VERS.2023.03.15 CS 352 B_MAN_EN The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block bearings, including grease nipples. The steel belt guard (5) is a sealed two pieces unit. The backing plate is bolted to the mainframe of the machine and two locking nuts are welded to it.

  • Page 12: Technical Data

    VERS.2023.03.15 CS 352 B_MAN_EN 2.3 Technical data Technical data Battery motor 1,8 kW Max. blade diameter 350mm Bore 25,4mm Rotation speed of the blade 2750 min Cutting depth 125mm Flange diameter 100mm Sound pressure level 93,3 dB (ISO EN 11201) Sound energy level 113,3 dB (ISO EN 3744) Machine dimension...

  • Page 13: Statement Regarding The Vibration Emission

    VERS.2023.03.15 CS 352 B_MAN_EN Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code CS 352 B HONDA 1.99 0.26 Classique Béton Ø350 70184632546...

  • Page 14: Statement Regarding Noise Emission

    VERS.2023.03.15 CS 352 B_MAN_EN Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744...

  • Page 15: Assembly And Commissioning

    Secure the operator’s handle in a comfortable user position by using the locking nut. 3.2 Tool assembly Only use NORTON blades with the CS 352 B. A blade with a maximum diameter of 350 mm can be fitted in the CS 352 B.

  • Page 16: Quick Reference Guide For Operation

    VERS.2023.03.15 CS 352 B_MAN_EN 3.3 Quick reference guide for operation...

  • Page 17: Battery Fixation And Starting The Machine

    VERS.2023.03.15 CS 352 B_MAN_EN 3.4 Battery fixation and starting the machine • Switch on the battery by pressing the Power button (1) (the switch must be in the OFF position) the 3 LEDs will lit. • Wait until the green LED on the control panel is the only one lit •...

  • Page 18: Charging The Battery

    VERS.2023.03.15 CS 352 B_MAN_EN 3.5 Charging the battery This machine works with a battery, so you have to think about charging it. A fast charger is available for this. It will take between 1h and 1h30 to recharge a full battery charge. When charging the battery, the charger fan turns on to prevent the battery from heating up.

  • Page 19: Operating The Cs 352 B

    VERS.2023.03.15 CS 352 B_MAN_EN 4 OPERATING THE CS 352 B 4.1 Site of work Before you start working, please check the following points: • Remove from the site anything, which might hinder the working procedure. • Make sure the site is sufficiently well lit. •...

  • Page 20: Transport And Storing

    VERS.2023.03.15 CS 352 B_MAN_EN 5 TRANSPORT AND STORING Take the following measures in order to transport and store the CS 352 B securely. 5.1 Securing for transport Before transporting the machine: • Remove the blade. • Empty the water tank. •...

  • Page 21: Maintenance And Service

    VERS.2023.03.15 CS 352 B_MAN_EN 6 MAINTENANCE AND SERVICE ATTENTION: to perform maintenance on the machine, always switch it off. Always wear a face mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS 352 B, please follow the maintenance plan below: Regular service period Perform...

  • Page 22: Maintenance Of The Engine

    VERS.2023.03.15 CS 352 B_MAN_EN 6.2 Maintenance of the engine...

  • Page 23: Faults: Causes And Cures

    VERS.2023.03.15 CS 352 B_MAN_EN 7 FAULTS: CAUSES AND CURES 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the one described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source...

  • Page 24: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel.: 00352-50 401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...

  • Page 25: Spare Parts

    VERS.2023.03.15 CS 352 B_MAN_EN 7.4 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 26 VERS.2023.03.15 CS 352 B_MAN_EN...
  • Page 27 VERS.2023.03.15 CS 352 B_MAN_EN...
  • Page 28 VERS.2023.03.15 CS 352 B_MAN_EN...
