Summary of Contents for Norton CM 351

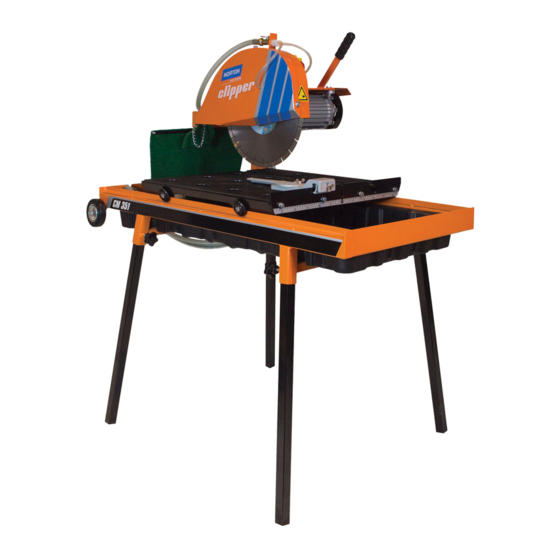

- Page 1 CM 351 OPERATING INTRUCTIONS...
-
Page 3: Declaration Of Conformity
SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that the following new products here below: Masonry Saws (Code) CM 351 2.2KW-1-230V (70184630312) • CM 351 2.0KW-1-115V (70184630321) • Is in conformity with the following Directives: "MACHINES"... -
Page 5: Table Of Contents
CM 351 OPERATING INSTRUCTIONS TABLE OF CONTENTS BASIC SAFETY INSTRUCTIONS Symbols Machine plate Safety instructions for particular operating phases MACHINES DESCRIPTION Short description Purpose of use Layout Technical data Vibration emission declaration ASSEMBLY AND COMMISSIONING Feet assembly Tool assembly Electrical connections... -
Page 6: Basic Safety Instructions
1 BASIC SAFETY INSTRUCTIONS The CM 41 is exclusively designed for the cutting of construction products, with NORTON diamond blades, mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage. -
Page 7: Machines Description
2.2 Purpose of use The CM 351 is designed for wet and dry cutting of a large range of building and refractory materials, or tiles. It is not designed for cutting wood or metals. -
Page 8: Technical Data
A water splash guard, fixed to head axle restricts water spray and minimises water loss. • Attention: The water pump must never run without water. 2.4 Technical data Machines CM 351 2.2KW-1-230V CM 351 2.0KW-1-115V 2,2 kW 230V 2800tr. min 2,0 kW 115V 2700tr. min Motor... -
Page 9: Assembly And Commissioning
• 3.2 Tool assembly Only NORTON blades with a maximum diameter of 350mm can be used. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed. Switch off the machine and unplug it from the electrical supply before to mount or change the blade. -
Page 10: Storing Of The Machine
4.3 Storing of the machine If the machine is not going to be used for a long period, please take the following measures: Completely clean the machine. • Empty the water cooling system. • Take the water pump out of the slurry and clean it thoroughly. •... - Page 11 Make sure the nut that supports the head is strongly tighten. The stops are set at the factory; no adjustment shall be made normally. 5.2.4 Important advices for the cutting The CM 351 is designed to cut material weight under 20kg and having dimensions smaller than 600x600x110mm. • Before commencing work, check the fixing and stability of the tool.
-
Page 12: Maintenance And Service
6 MAINTENANCE AND SERVICE To ensure a long-term quality from the cutting and a safe functioning of the machine without any problem, please follow the maintenance plan below: Visual control Whole machine general aspect, water tightness Clean Flange and blade fixing devices Clean Motor cooling fans Clean... -
Page 13: Circuit Diagram
7.3 Circuit diagram... -
Page 14: Customer Service
Norton.edilizia@saint-gobain.com E-mail : office@sga.net gobain.com Hungary Czech Republic Poland Saint-Gobain Abrasives KFT. Norton Diamantove Nastroje Sro Saint-Gobain Diamond Products Sp.zO.O. Banyaleg Utca 60B Vinohrdadska 184 AL. Krakowska 110/114 H-1225 BUDAPEST CS-13000 PRAHA 3 PL-00-971 WARSZAWA Tel: ++36 1 371 2250... - Page 16 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 12.05.10...
