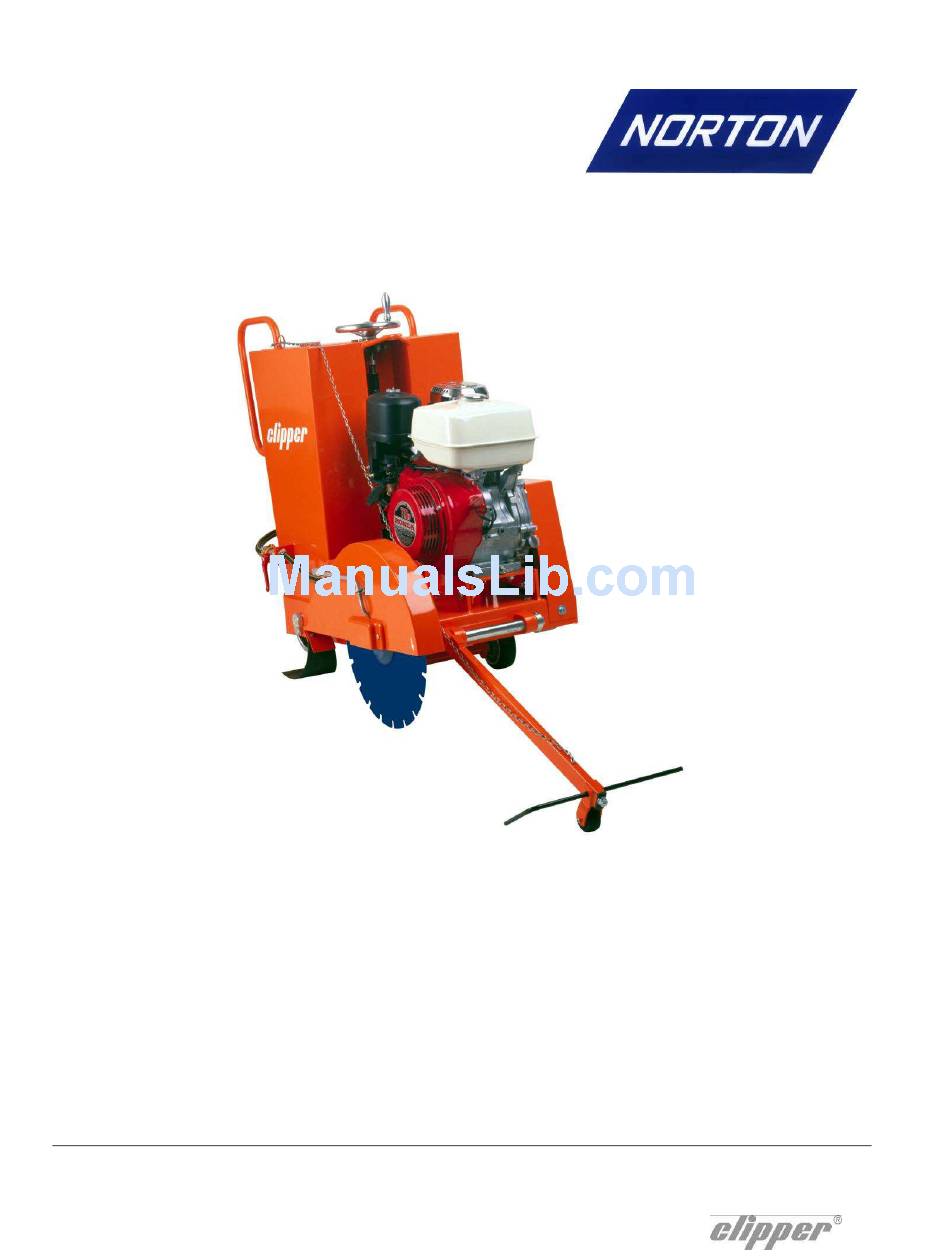

- Page 1 CS1 P13 OPERATING INSTRUCTIONS...
-
Page 3: Declaration Of Conformity
Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: Floor saw (Code): CS1 P13 HONDA Cyclonic (70184624214) CS1 P13 HONDA Cyclonic Ø500 (70184629389) is in conformity with the following Directives: •... -
Page 5: Table Of Contents
CS1 P13 OPERATING INSTRUCTIONS 1 Basic Safety Instructions 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 General description of the CS1 2.1 Short description 2.2 Layout 2.3 Technical data 3 Assembly and commissioning 3.1 Tool assembly 3.2 Water cooling system 3.3 Starting the machine 4 Transport and Storing... -
Page 6: Basic Safety Instructions
1 Basic Safety Instructions The CS1 is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. -
Page 7: Machine Plate
• Always cut with the blade guard in position. • Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine! • Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1. -
Page 8: General Description Of The Cs1
2 General description of the CS1 Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations. Saint-Gobain Abrasives S.A. keeps the right of making technical or design modification without prior notification. -
Page 9: Technical Data
The pivoting frame (3), hinged on the rear axle, is supporting the engine, the blade shaft assembly, and the protecting guards. Four heavy-duty belts drive the blade. The precisely manufactured blade shaft is fitted into two heavy-duty self-aligning pillow block bearings, including grease nipples. -
Page 10: Assembly And Commissioning
Before beginning the work with the CS1, you have to assemble some parts. 3.1 Tool assembly Only use NORTON blades with the CS1. A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation... -
Page 11: Starting The Machine
3.3 Starting the machine Make sure the blade is raised clear up the ground before starting the machine. Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. NOTE: do not use the choke if the engine is warm or the air temperature is high. -
Page 12: Transport And Storing
4 Transport and Storing Take the following measures in order to transport and store the CS1 securely. 4.1 Securing for transport Before transporting the machine: • Remove the blade. • Empty the water tank. • Raise the guide-a-cut in its upright position. •... -
Page 13: Operating The Cs1
5 Operating the CS1 5.1 Site of work Before you start working, please check the following points: • Remove from the site anything, which might hinder the working procedure. • Make sure the site is sufficiently well lit. • Make sure you have a continual adequate view of the working area so you can intervene in the working process at any time. -
Page 14: Maintenance And Service
6 Maintenance and service ATTENTION : to perform maintenance on the machine, always switch it off. Always wear a face mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS1, please follow the maintenance plan below: Regular service period Perform at every indicated period... -
Page 15: Maintenance Of The Engine
6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first Check level Engine oil Change Check Air cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary) Every 2 years Engine oil To change the oil,... - Page 16 Air cleaner The CS1 has a dual type filter. To service the air cleaner filter, follow these instructions: • Remove the nut, air cleaner cover and wing nut. • Remove the pre air cleaner elements and separate them. • Carefully check both elements for holes or tears and replace if damaged.
- Page 17 Spark plug To service the spark plug, follow these instructions: • Visually inspect spark plug. Discard the plug if the insulator is cracked or chipped. • Remove carbon or other deposits with a stiff wire brush. • Measure the plug gap with a wire-type feeler gauge.
-
Page 18: Faults: Causes And Cures
Spare parts for the engine can be ordered with the manufacturer of the engine or with their dealer, which is often quicker and cheaper. This machine has been manufactured by Saint-Gobain Abrasives S.A. 190, Bd. J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg. Tel. : 00352-50401-1 Fax : 00352- 50 16 33 http://www.construction.norton.eu... - Page 19 Tel/Fax: 0048 22 868 29 27 Fax: ++36 1 371 2255 e-mail: norton-diamond@wp.pl e-mail: nortonbp@axelero.hu Czech Republic Norton Diamantove Nastroje Sro Vinohrdadska 184 CS-13000 PRAHA 3 Tel: 0042 0267 13 20 21 Fax: 0042 0267 13 20 21 e-mail: norton.diamonds@komerce.cz...
- Page 20 SAINT-GOBAIN ABRASIVES 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel.: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com www.construction.norton.eu 10.12.2008...
