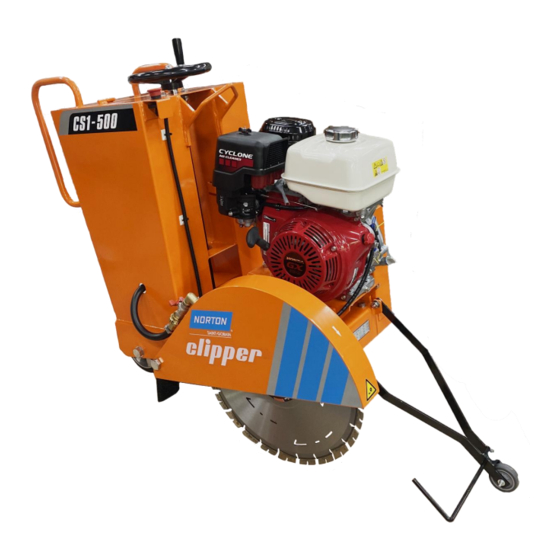

Norton clipper CS1-500 P13 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Norton Manuals
  4. Saw
  5. clipper CS1-500 P13
  6. Operating instructions manual

Norton clipper CS1-500 P13 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CS1 – 500 P13
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the clipper CS1-500 P13 and is the answer not in the manual?

Questions and answers

Related Manuals for Norton clipper CS1-500 P13

Summary of Contents for Norton clipper CS1-500 P13

  • Page 1 CS1 – 500 P13 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2022.10.20 CS1-500_MAN_EN...
  • Page 3 VERS.2022.10.20 CS1-500_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: CS1-500 P13 HONDA 70184632006 « Floor saw »: Code : is in conformity with the following Directives : ...
  • Page 4 VERS.2022.10.20 CS1-500_MAN_EN Declaration of conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES S.A. 190, BD J.F. KENNEDY L- 4930 BASCHARAGE Declares that this product: CS1-500 P13 HONDA 70184632006 « Floor saw »: Code : is in conformity with the following standard: ...

  • Page 5: Table Of Contents

    VERS.2022.10.20 CS1-500_MAN_EN CS1-500 OPERATING INSTRUCTIONS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 GENERAL DESCRIPTION OF THE CS1-500 2.1 Short description 2.2 Layout 2.3 Technical data 2.4 Statement regarding the vibration emission 2.5 Statement regarding noise emission 3 ASSEMBLY AND COMMISSIONING 3.1 Tool assembly...

  • Page 6: Basic Safety Instructions

    VERS.2022.10.20 CS1-500_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CS1-500 is exclusively designed for the cutting of floors made of asphalt, green and cured concrete (reinforced or not) as well as of industrial cement. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

    VERS.2022.10.20 CS1-500_MAN_EN Never move the machine with the blade Rotation direction of the blade running idle. Emergency Stop 1.2 Machine plate Important data can be found on the following plate located on the machine: Year of Ø Maximum Machine Code production blade Ø...

  • Page 8: Safety Instructions For Particular Operating Phases

     Always cut with the blade guard in position.  Only fit NORTON diamond blades to the machine! The use of other tools can damage the machine!  Attention is drawn to the use of BS2092 safety goggles in conformity with specified Processes No.8 of the Protection of Eyes Regulation 1974, Regulation 2(2) Part 1.

  • Page 9: General Description Of The Cs1-500

    VERS.2022.10.20 CS1-500_MAN_EN 2 GENERAL DESCRIPTION OF THE CS1-500 Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives S.A. who shall confirm that the machine is still in conformity with the safety regulations.
  • Page 10 VERS.2022.10.20 CS1-500_MAN_EN Made of jig welded open profile steel, the CS1-500 is stable but at the same time, easily transportable. The one-piece blade guard (1) fully protects the operator and his working environment. It is firmly fixed to the main frame but can be opened by rotation to change blades. A manually operated hand wheel mechanism (2) enables graduated depth setting.
  • Page 11 VERS.2022.10.20 CS1-500_MAN_EN The parking brake (9) immobilizes and secures the machine when it is not in use. The depth indicator (10) lets you know at what depth the user is cutting.

  • Page 12: Technical Data

    VERS.2022.10.20 CS1-500_MAN_EN 2.3 Technical data Engine Honda GX390, 4 strokes, 1 cylinder, 13HP (9,6kW) Fuel Automotive unleaded gasoline Honda 4-Stroke, or equivalent high detergent, premium quality motor oil certified to meet or exceed U.S. automobile manufacturer’s requirement for service classification SG, SF. (SG, SF designated on the oil container).

  • Page 13: Statement Regarding The Vibration Emission

    VERS.2022.10.20 CS1-500_MAN_EN 2.4 Statement regarding the vibration emission Declared vibration emission value in accordance with EN 12096 Machine Measured vibration Uncertainty K Tool used Model / code emission value a m/s Model / code CS1-500 P13 HONDA 4.22 Clipper Super Beton Evo 70184632006 ...

  • Page 14: Statement Regarding Noise Emission

    VERS.2022.10.20 CS1-500_MAN_EN 2.5 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Machine Sound Uncertainty K Sound power Uncertainty K Model / code Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744)

  • Page 15: Assembly And Commissioning

    Before beginning the work with the CS1-500, you have to assemble some parts. 3.1 Tool assembly Only use NORTON blades with the CS1-500. A blade with a maximum diameter of 500 mm can be fitted. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation...

  • Page 16: Starting The Machine

    VERS.2022.10.20 CS1-500_MAN_EN 3.3 Starting the machine Make sure the blade is raised clear up the ground before starting the machine. Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. NOTE: do not use the choke if the engine is warm or the air temperature is high.

  • Page 17: Operating The Cs1-500

    VERS.2022.10.20 CS1-500_MAN_EN 4 OPERATING THE CS1-500 4.1 Site of work Before you start working, please check the following points:  Remove from the site anything, which might hinder the working procedure.  Make sure the site is sufficiently well lit. ...

  • Page 18: Transport And Storing

    VERS.2022.10.20 CS1-500_MAN_EN 5 TRANSPORT AND STORING Take the following measures in order to transport and store the CS1-500 securely. 5.1 Securing for transport Before transporting the machine:  Remove the blade.  Empty the water tank.  Raise the guide-a-cut in its upright position. ...

  • Page 19: Maintenance And Service

    VERS.2022.10.20 CS1-500_MAN_EN 6 MAINTENANCE AND SERVICE ATTENTION: to perform maintenance on the machine, always switch it off. Always wear a face mask and safety goggles while performing the maintenance of machine. 6.1 Maintenance of the machine To ensure a long-term quality from the cutting with the CS1-500, please follow the maintenance plan below: Regular service period Perform at every indicated period...

  • Page 20: Maintenance Of The Engine

    VERS.2022.10.20 CS1-500_MAN_EN 6.2 Maintenance of the engine Regular service period Perform at every indicated month or operating hour interval, whichever comes first  Check level Engine oil Change Check Air cleaner filter Clean Fuel strainer cup Clean Spark plug Check-Clean Fuel line Check (Replace if necessary) Every 2 years...
  • Page 21 VERS.2022.10.20 CS1-500_MAN_EN Air cleaner The CS1-500 has a dual type filter. To service the air cleaner filter, follow these instructions:  Remove the nut, air cleaner cover and wing nut.  Remove the pre air cleaner elements and separate them. ...
  • Page 22 VERS.2022.10.20 CS1-500_MAN_EN Spark plug To service the spark plug, follow these instructions:  Visually inspect the spark plug. Discard the plug if the insulator is cracked or chipped.  Remove carbon or other deposits with a stiff wire brush.  Measure the plug gap with a wire-type feeler gauge.

  • Page 23: Faults: Causes And Cures

    VERS.2022.10.20 CS1-500_MAN_EN 7 FAULTS: CAUSES AND CURES 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off. Let only qualified staff make any intervention other than the one described in the previous section. 7.2 Trouble-shooting guide Trouble Possible source Resolution...

  • Page 24: Customer Service

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured by: Saint-Gobain Abrasives S.A. 190, Bd. J. F. Kennedy L- 4930 BASCHARAGE Grand-duché de Luxembourg. Tel.: 00352-50 401-1 Fax: 00352- 50 16 33 http://www.construction.norton.eu e-mail: sales.nlx@saint-gobain.com...

  • Page 25: Spare Parts

    VERS.2022.10.20 CS1-500_MAN_EN 7.4 Spare parts In order to consult the spare parts lists, we invite you to visit the after-sales website of Norton Clipper by using the following address: https://spareparts.nortonabrasives.com For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need.
  • Page 26 VERS.2022.10.20 CS1-500_MAN_EN...
  • Page 27 VERS.2022.10.20 CS1-500_MAN_EN...
  • Page 28 VERS.2022.10.20 CS1-500_MAN_EN...
