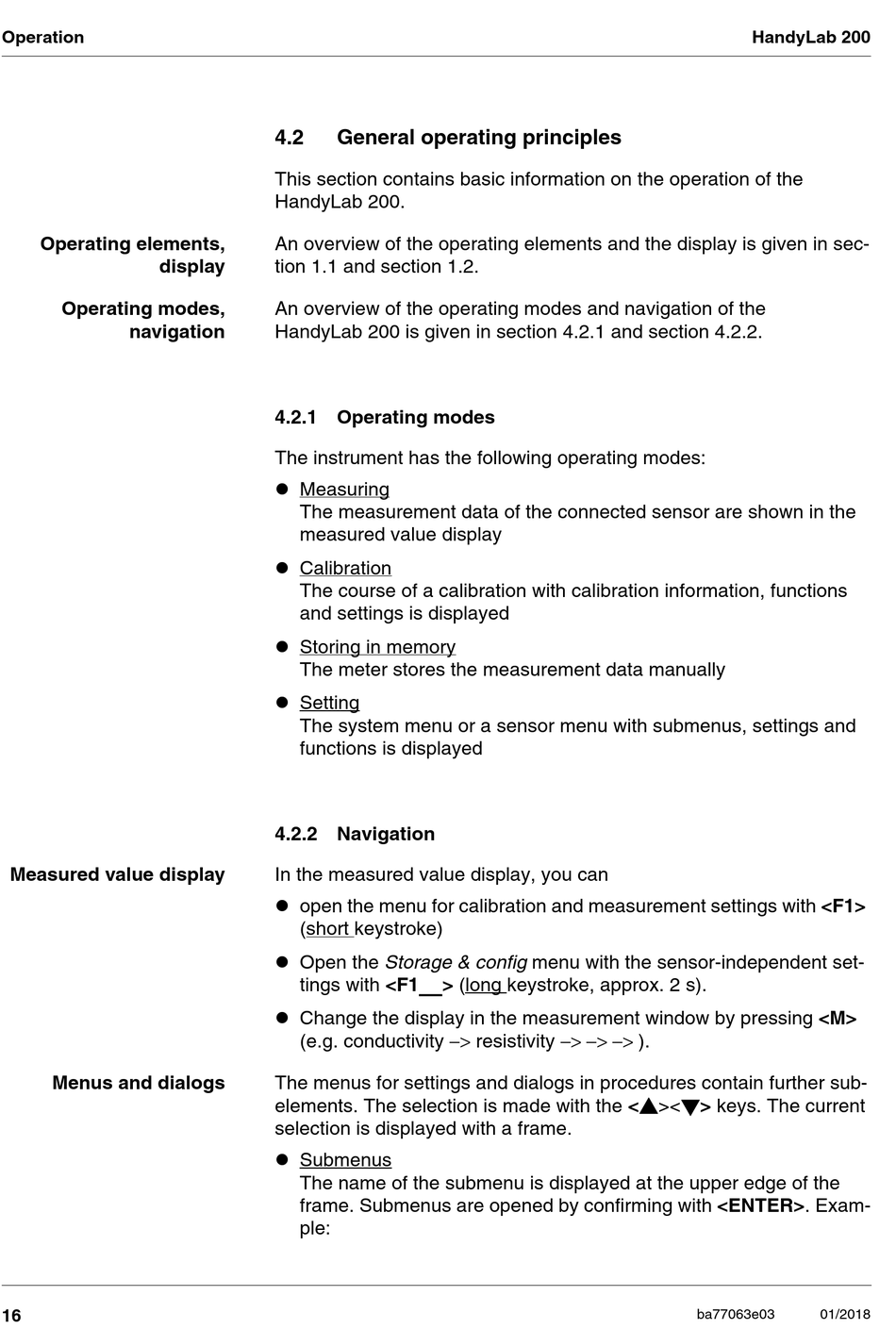

Operation
Operating elements,
display

Operating modes,

navigation

Measured value display
Menus and dialogs
16
4.2

General operating principles

This section contains basic information on the operation of the
HandyLab 200.
An overview of the operating elements and the display is given in sec-
tion 1.1 and section 1.2.
An overview of the operating modes and navigation of the
HandyLab 200 is given in section 4.2.1 and section 4.2.2.
4.2.1 Operating modes
The instrument has the following operating modes:
 Measuring
The measurement data of the connected sensor are shown in the
measured value display
 Calibration
The course of a calibration with calibration information, functions
and settings is displayed
 Storing in memory
The meter stores the measurement data manually
 Setting
The system menu or a sensor menu with submenus, settings and
functions is displayed
4.2.2 Navigation
In the measured value display, you can
 open the menu for calibration and measurement settings with <F1>
(short keystroke)
 Open the Storage & config menu with the sensor-independent set-
_
tings with <F1 > (long keystroke, approx. 2 s).
 Change the display in the measurement window by pressing <M>
(e.g. conductivity −> resistivity −> −> −> ).
The menus for settings and dialogs in procedures contain further sub-
elements. The selection is made with the <><> keys. The current
selection is displayed with a frame.
 Submenus
The name of the submenu is displayed at the upper edge of the
frame. Submenus are opened by confirming with <ENTER>. Exam-
ple:
HandyLab 200
ba77063e03 01/2018
