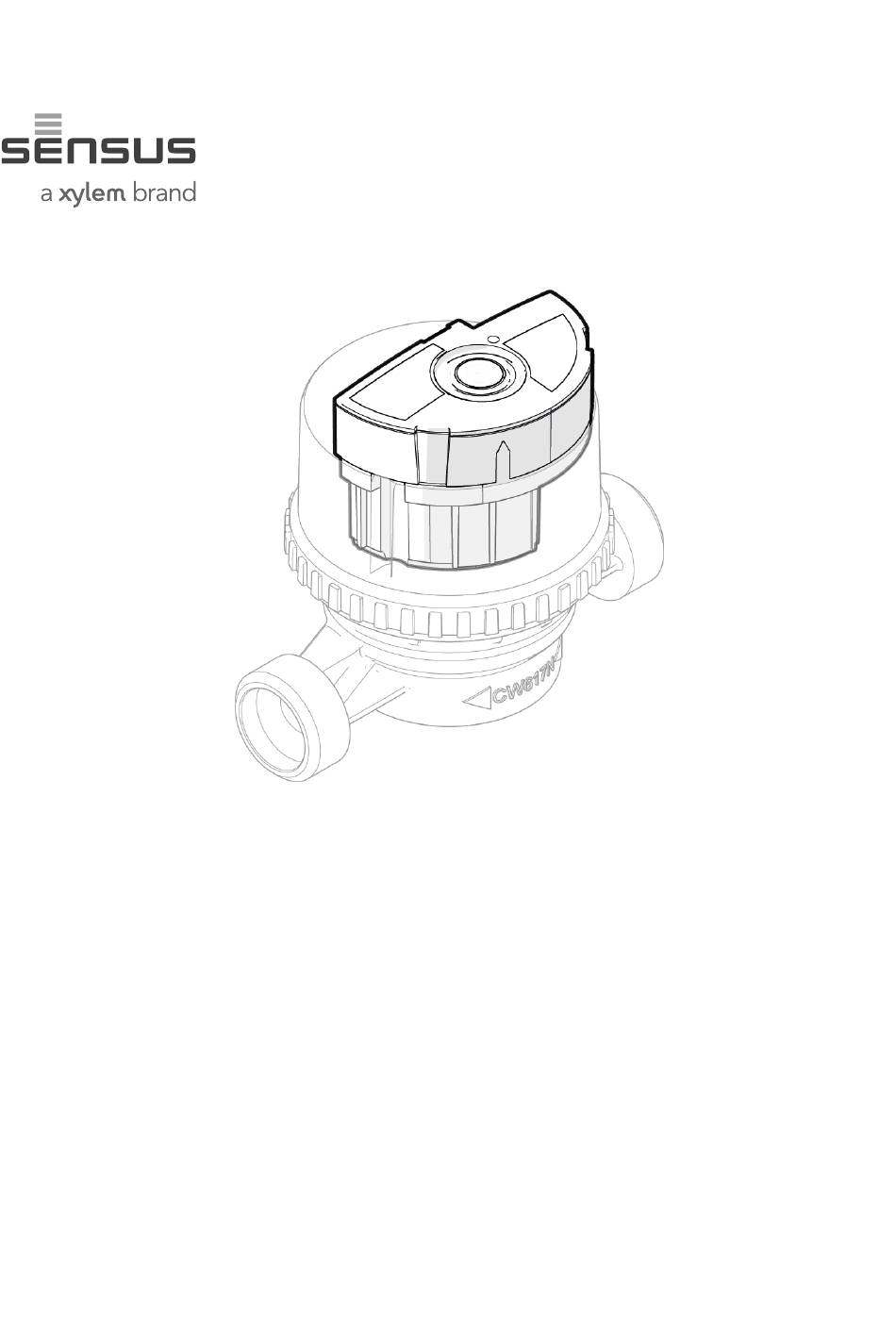

- Page 1 Domo R wM-Bus Module Instructions for installation, use and maintenance...
-
Page 2: Table Of Contents
Domo R Symbols used in this manual and relative meaning Warning Indicates particularly important information. Danger! Identifies actions that may lead to injury or damage to the device if not performed correctly. Prohibited Indicates actions that MUST NOT be performed. Compliance Maddalena S.p.A. -
Page 3: General Information
Domo R 3.3 Programming on initial installation of the module ........8 3.4 Troubleshooting . -
Page 4: Usage Limits
Domo R Domo R is compliant with the wM-Bus data communication protocol defined at European level by Standard EN 13757. This guarantees a high level of interoperability with various reading systems on the market, including third-party systems. Domo R is also OMS certified (www.omsgroup.org). The factory set-up can be modified via radio signal at a later point using the special configuration kit (USB transceiver and relative software), sup- plied separately. -
Page 5: Identification
Domo R 1.6 Identification The module Domo R identified by label A is uniquely as- 2199014490 Serial number of the meter sociated with a single meter. This assignment, which can be carried out during the installation phase, involves two elements: the serial number of the mechanical meter and the serial number of the module Domo R. -
Page 6: Installation
Domo R 2. Installation 2.1 Receipt of the product Domo R modules are supplied in two different formats: A Single package, already fitted on meter B Package with 10 pieces with ~12 fixing screws and 12 red/blue seals Warning The instruction manual is an integral part of the device and should be carefully read and stored. Prohibited Packaging material must be properly disposed of and kept out of children’s reach as it may represent a hazard. -
Page 7: Use
Domo R Insert the Domo R module 2 in the relative space. Note the radio ID on the label (module) and the meter serial number. The Domo R module is fitted using the TORX screw 3. Prohibited It is prohibited to use an electric screwdriver to tighten the screw. Danger Observe the following instructions to avoid breaking the module cover. -
Page 8: Synchronisation Of Mechanical Reading
Domo R 3.1 Synchronisation of mechanical reading The radio module stores the volume recorded via an inductive sensor. The module is set-up in the factory with initial volume at zero. If the meter on which the radio module is installed has a reading other than zero, synchronisation of the mechanical meter reading and radio module is recom- mended using the programming kit. -
Page 9: Troubleshooting
Domo R 3.4 Troubleshooting Fault Cause Solution The radio module is not Electrical or electronic devices interfere with the Move devices to a sufficient distance away transmitting signal Move the receiver closer Battery empty Replace the battery (contact the metering operator) Mechanical fraud alarm active Contact the metering operator The LED of the radio... -
Page 10: Cleaning
Domo R 5.2 Cleaning No particular cleaning procedures are required. However, the installation area should be kept clean and periodic checks should be performed to ensure the required environmental conditions are met. Prohibited Use of abrasive products, petrol or trichloroethylene is not permitted. 5.3. - Page 11 Neyron, France 01700 +86-591-2206-0676 +44-1794-526-100 +33-472-0185-50 Xylem Water Solutions Singapore Sensus Italia s.r.l. Xylem Česká republika spol. s r.o. Pte Ltd Via Gioacchino Rossini, 1/A Walterovo náměstí 329/3 3A International Business Park, I-20045 Lainate (MI), Italy 158 Prague 5 – Jinonice...
